| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

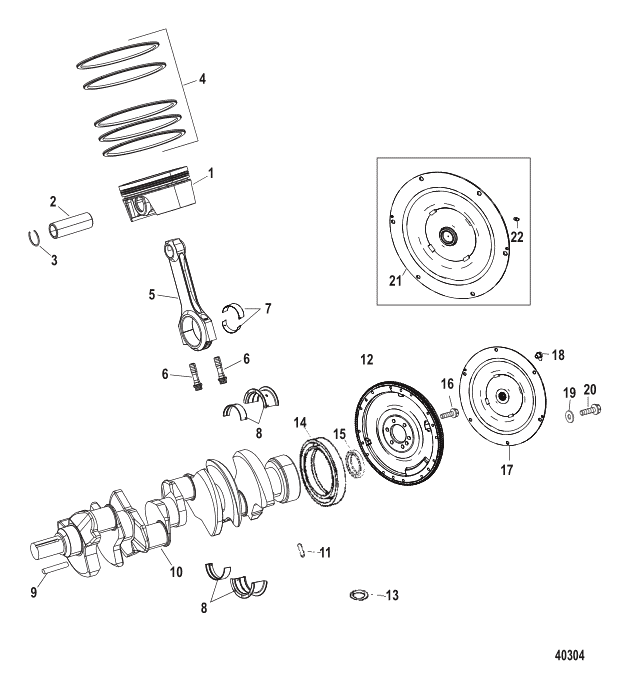

| 1 | 843231T01 | PISTON ASSY-STD | ACT |
|
$475.16 | $454.05 | 8 | ||
| 2 | 843006T | ----PIN-PISTON | ACT | $39.85 | $39.29 | 8 | |||
| 3 | 843007 | ----CIRCLIP | ACT | $19.90 | $19.61 | 16 | |||
| 4 | 843008A01 | RING SET-STD | ACT | $122.50 | $117.06 | 8 | |||
| 5 | 8M8020322 | CONN ROD ASSY | ACT |
|
$356.51 | $340.67 | 8 | ||
| 6 | 8M0000838 | ----SCREW | ACT | $36.88 | $36.36 | 16 | |||
| 7 | 8M0030217 | BEARING SET-STD | ACT | $50.99 | $49.01 | 8 | |||
| 7 | 8M0030218 | BRG SET-.001 OS | ACT | $44.49 | $43.54 | AR | |||
| 7 | 8M0030216 | BRG SET-.001 US | ACT | $42.99 | $42.14 | AR | |||
| 7 | 8M0030982 | BRG SET -.010 | ACT | $49.49 | $48.36 | AR | |||
| 8 | 8M0051198 | BEARING KIT-STD | 842400 | SS |
|
$406.06 | $388.03 | 1 | |
| 8 | 8M0053743 | BRG KIT-.001 OS | 842401 | SS |
|
$336.29 | $321.35 | AR | |
| 8 | 842402 | BRG KIT-.001 US | ACT | $382.99 | $360.68 | AR | |||
| 8 | 8M0053549 | BRG KIT-.010 US | 842403 | SS |
|
$257.12 | $245.70 | AR | |
| 9 | 845607 | KEY Crankshaft | ACT | $7.49 | $7.32 | 1 | |||
| 10 | 842478T02 | C SHAFT/F WHEEL | ACT |
|
$5,947.25 | $5,450.32 | 1 | ||
| 11 | 43504 | ----PIN-DOWEL | ACT | $10.69 | $10.44 | 1 | |||
| 12 | 8M0152661 | ----FLYWHEEL | 899898T59 | SS |
|
$653.99 | $614.95 | 1 | |
| 13 | 69756 | O RING For #5 Bearing Cap Oil Hole | ACT | $3.59 | $3.50 | 1 | |||
| 14 | 811554 | SEAL Oil | ACT | $115.49 | $108.77 | 1 | |||
| 15 | 823108 | BUSHING | ACT |
|
$131.08 | $125.26 | 1 | ||
| 16 | 8M0214958 | SCREW | 845757 | SS |
|
$5.89 | $5.76 | 6 | |
| 17 | 8M0098795 | COUPLER ASSY | 861523A9 | SS |
|
$744.49 | $744.49 | 1 | |
| 18 | 8M0169590 | ----FITTING | 49099 | SS |
|
$4.59 | $4.49 | 2 | |
| 19 | 8M0214963 | WASHER | 856774 | SS |
|
$2.59 | $2.53 | 6 | |
| 20 | 35091 | SCREW | ACT | $16.59 | $16.19 | 6 | |||
| 21 | 8M0098796 | COUPLER ASSY | 861523A20 | SS |
|
$1,049.99 | $962.56 | 1 | |
| 22 | 8M0169589 | ----FITTING | 74036 | SS |
|
$4.79 | $4.69 | 1 | |
| - | 843073A05 | GASKET/SEAL SET | ACT |
|
$1,506.15 | $1,380.31 | 1 | ||
| - | 844200A08 | PARTIAL-600 SCI | ACT | $32,336.72 | $28,953.70 | 1 |
