| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

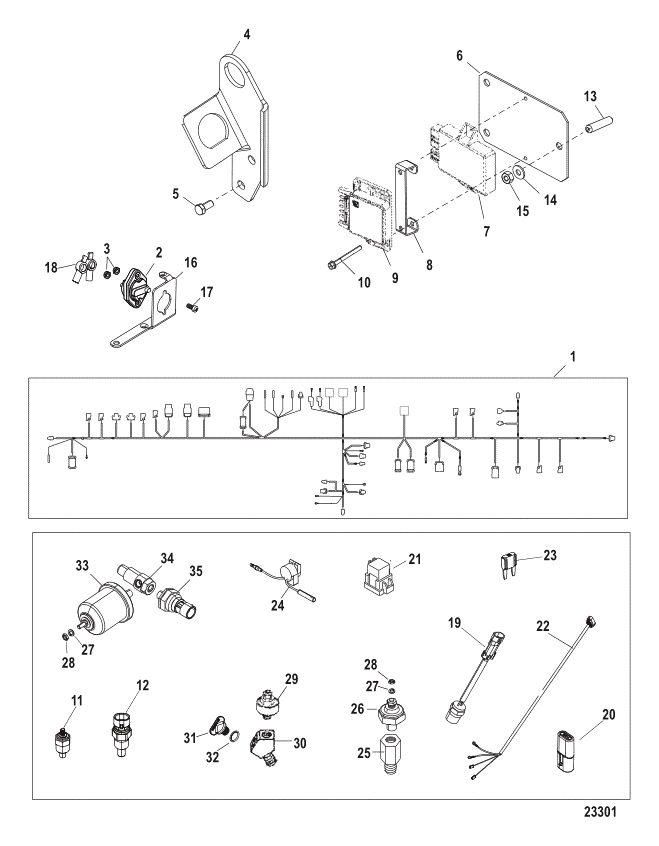

| 1 | 862164T04 | HARNESS ASSEMBLY | ACT | $250.00 | $235.43 | 1 | |||
| 2 | 11178A01 | BREAKER Circuit - 50 Ampere | 865827T | REP |
|
$121.49 | $113.00 | 1 | |
| 3 | 8M0204718 | NUT (#10-32) Stainless Steel | 826709106 | SS |
|
$4.70 | $4.59 | 2 | |
| 4 | 899719T02 | BRACKET Harness Mounting/Lifting Eye | ACT | $39.25 | $38.54 | 1 | |||
| 5 | 98261 | SCREW (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 6 | 861516 | BRACKET | ACT | $16.83 | $16.53 | 1 | |||
| 7 | 861543T02 | ICM MODULE Ignition Control Module | 861543T1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 8 | 861517 | BRACKET | ACT |
|
$19.30 | $18.82 | 1 | ||
| 9 | 8M0154747 | MODULE Knock Control | 806611T | REP |
|
$396.71 | $379.20 | 1 | |
| 10 | 41408 | SCREW (#10-32 x 1.50) | ACT |
|
$3.40 | $3.32 | 2 | ||
| 11 | 806490T | SENDER | ACT | $40.99 | $40.18 | 1 | |||
| 11 | 49734 | SENDER | ACT |
|
$90.42 | $86.97 | OPT. | ||
| 12 | 805218T | SENSOR | ACT | $70.49 | $67.98 | 1 | |||
| 13 | 24323 | SET SCREW (.250-20 x 1.25 | ACT | $4.20 | $4.10 | 3 | |||
| 14 | 35462 | WASHER (.2656 x .625 x .0 | ACT | $1.80 | $1.76 | 3 | |||
| 15 | 64015 | NUT (.250-20) | ACT | $2.81 | $2.75 | 3 | |||
| 16 | 899719T01 | BRACKET | ACT | $44.58 | $43.78 | 1 | |||
| 17 | 830861 | SCREW (#8-32 x .625) | ACT | $1.80 | $1.76 | 2 | |||
| 18 | 89919 | BOOT Insulator - Black | ACT | $3.70 | $3.61 | 2 | |||
| 19 | 866089 | THERMAL SWITCH (Normally Open 130-110 degrees) Turn Key Start | ACT | $70.67 | $67.97 | 1 | |||
| 20 | 8M0207787 | DIODE ASSEMBLY | 865913A01 | SS |
|
$29.33 | $28.81 | 1 | |
| 21 | 8M0219830 | RELAY | 882751 | SS |
|
$18.67 | $18.35 | 1 | |
| 22 | 866734T01 | HARNESS ASSEMBLY Transmission | ACT | $30.00 | $29.46 | 1 | |||
| 23 | 832969T15 | FUSE Mini - Blue - 15 Ampere | 83296915 | SS |
|
$4.10 | $4.00 | 1 | |
| 23 | 832969T20 | FUSE Mini - Yellow - 20 Ampere | 83296920 | SS |
|
$6.60 | $6.44 | 1 | |
| 24 | 816492A6 | ALARM KIT | ACT | $121.34 | $114.26 | 1 | |||
| 25 | 32974 | FITTING (.125-27) Adaptor | ACT | $5.70 | $5.56 | 1 | |||
| 26 | 805605A1 | SWITCH ASSEMBLY | ACT |
|
$42.17 | $41.42 | 1 | ||
| 27 | 26996 | ----LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 2 | |||
| 28 | 68219 | ----NUT (#10-32) Stainless St | ACT | $3.00 | $2.93 | 2 | |||
| 29 | 806612T | SENSOR Knock | ACT | $198.00 | $186.46 | 1 | |||
| 30 | 8067051 | FITTING Dual | ACT | $99.33 | $95.54 | 1 | |||
| 31 | 8M0119211 | PLUG KIT (.500-13) Royal | 806608A1 | SS |
|
$10.18 | $9.95 | 1 | |
| 32 | 62706 | ----O-RING (.426 x .070) | ACT |
|
$2.39 | $2.33 | 1 | ||
| 33 | 8M0068784 | SENDER ASSEMBLY | 815425T | SS |
|
$91.99 | $88.60 | 1 | |
| 33 | 37293T | SENDER ASSEMBLY | ACT |
|
$205.66 | $193.68 | OPT | ||
| 34 | 864669 | FITTING | ACT | $31.08 | $30.53 | 1 | |||
| 35 | 8M0070108 | SWITCH Oil Pressure | 864252 | SS |
|
$41.08 | $40.34 | 1 |
