| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

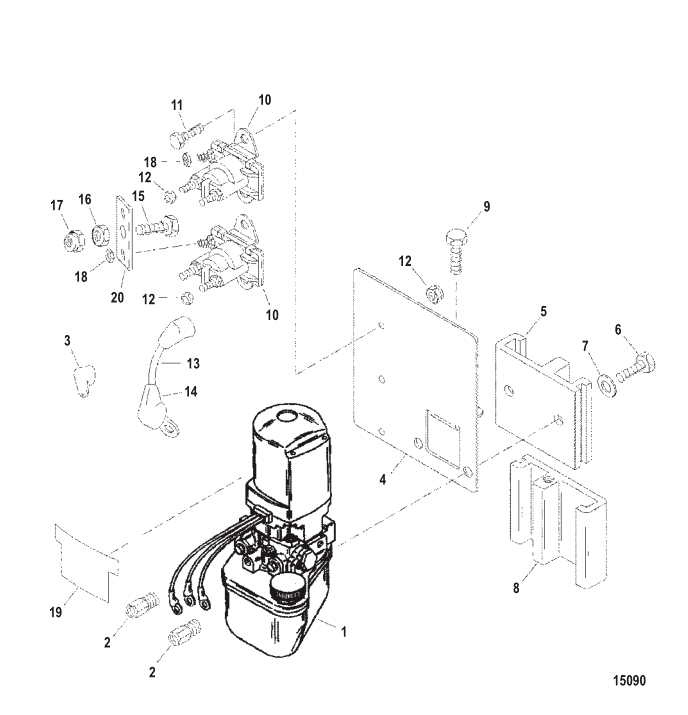

| - | 8M0083288 | PUMP/MOTOR ASSEMBLY Trim | 846183A2 | SS |
|
$1,325.14 | $1,214.42 | 1 | |
| 1 | 849670T01 | ----PUMP ASSEMBLY Trim | 849670A1 | SS |
|
$1,037.26 | $950.60 | 1 | |
| 2 | 77366 | --------FITTING | ACT | $12.79 | $12.49 | 2 | |||
| 3 | 843809 | --------BOOT Solenoid to Pump Terminals | ACT | $3.29 | $3.24 | 2 | |||
| 4 | 846003 | ----PLATE Solenoid Mounting | ACT | $34.00 | $33.53 | 1 | |||
| 5 | 846002 | ----BRACKET Pump Mounting | NLA |
|
$52.80 | $51.27 | 1 | ||
| 6 | 846109 | ----SCREW (.375-16 x .875) | ACT | $2.81 | $2.75 | 2 | |||
| 7 | 37828 | ----WASHER (.390 x .625 x .062) Stainless Steel | ACT | $0.80 | $0.79 | 2 | |||
| 8 | 846001 | ----BRACKET Pump Mounting | NLA |
|
$50.85 | $48.91 | 1 | ||
| 9 | 843063 | ----SCREW (.312-18 x .750) Stainless Steel With Patch | ACT | $2.90 | $2.86 | 1 | |||
| 10 | 8M0185622 | ----SOLENOID | 96158T | SS |
|
$39.99 | $39.43 | 2 | |
| 11 | 73286 | ----SCREW (.250-20 x .500) Stainless Steel | ACT | $1.80 | $1.76 | 3 | |||
| 12 | 8M0207776 | ----NUT (.250-20) Stainless Steel Lock | 814101 | SS |
|
$7.10 | $6.93 | 7 | |
| 13 | 846134A1 | ----WIRE ASSEMBLY Jumper | ACT |
|
$66.00 | $64.04 | 1 | ||
| 14 | 843809 | --------BOOT Solenoid Jumper Wire Terminals | ACT | $3.29 | $3.24 | 2 | |||
| 15 | 845856 | ----SCREW (.312-18 x .750) | ACT | $1.21 | $1.19 | 1 | |||
| 16 | 846127 | ----NUT (.312-18) Brass | ACT | $0.98 | $0.97 | 1 | |||
| 17 | 826709110 | ----NUT (.312-18) Stainless Steel Lock | 846128 | SS |
|
$1.80 | $1.76 | 1 | |
| 18 | 826709104 | ----NUT (#8-32) Lock | 846115 | SS |
|
$3.00 | $2.93 | 4 | |
| 19 | 842773 | ----DECAL | 847313 | SS |
|
$10.51 | $10.36 | 1 | |
| 20 | 846124 | ----STRAP | ACT | $8.33 | $8.22 | 1 |
