| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

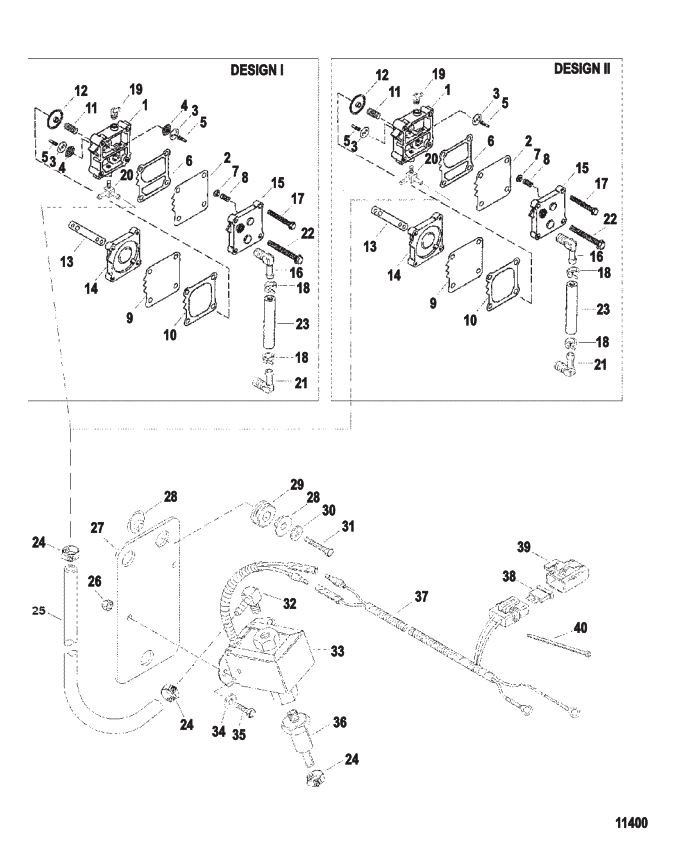

| 1 | 15930A27 | PUMP ASSY-FUEL Fuel | 15930A24 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 15930A27 | PUMP ASSY-FUEL Fuel | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 857005A1 | ----DIAPHRAGM KIT | 42990A11 | SS |
|
$33.99 | $33.25 | 1 | |
| 2 | 857005A1 | ----DIAPHRAM KIT | ACT |
|
$33.99 | $33.25 | 1 | ||
| 3 | NSS | ----------------NOT SOLD SEPARATE Check Valve |
|
$0.00 | $0.00 | 2 | |||
| 3 | NSS | ----------------NOT SOLD SEPARATE Check Valve |
|
$0.00 | $0.00 | 2 | |||
| 4 | NSS | ----------------NOT SOLD SEPARATE Check Valve |
|
$0.00 | $0.00 | 2 | |||
| 5 | NSS | ----------------NOT SOLD SEPARATE Retainer |
|
$0.00 | $0.00 | 2 | |||
| 6 | NSS | ----------------NOT SOLD SEPARATE Boost Gasket |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | ----------------NOT SOLD SEPARATE Spring End Cap |
|
$0.00 | $0.00 | 1 | |||
| 8 | NSS | ----------------NOT SOLD SEPARATE Spring |
|
$0.00 | $0.00 | 1 | |||
| 9 | NSS | ----------------NOT SOLD SEPARATE Diaphragm |
|
$0.00 | $0.00 | 2 | |||
| 10 | NSS | ----------------NOT SOLD SEPARATE Pulse Gasket |
|
$0.00 | $0.00 | 1 | |||
| 11 | NSS | ----------------NOT SOLD SEPARATE Spring |
|
$0.00 | $0.00 | 1 | |||
| 12 | NSS | ----------------NOT SOLD SEPARATE Spring End Cap |
|
$0.00 | $0.00 | 1 | |||
| 13 | 8M0204705 | --------GASKET Base | 987691 | SS |
|
$3.89 | $3.79 | 1 | |
| 14 | 144303 | ----BASE Fuel Pump | ACT | $17.09 | $16.78 | 1 | |||
| 15 | 987752 | ----PLATE-CHAMBER Fuel Pump | ACT | $24.09 | $23.65 | 1 | |||
| 16 | 996642 | ----ELBOW | 99664 | SS |
|
$2.69 | $2.62 | 1 | |
| 17 | 82104540 | ----SCREW Fuel Pump | ACT | $2.79 | $2.72 | 2 | |||
| 18 | 816311T | ----TIE STRAP | 816311 | SS |
|
$0.60 | $0.59 | 2 | |
| 19 | 851975 | ----FITTING | ACT | $28.39 | $27.83 | 1 | |||
| 20 | 814964 | ----FITTING | ACT | $103.49 | $97.24 | 1 | |||
| 21 | 996642 | ELBOW | 99664 | SS |
|
$2.69 | $2.62 | 1 | |
| 22 | 82130050 | SCREW Fuel Pump To Crankcase | ACT | $4.49 | $4.39 | 2 | |||
| 23 | 8M0108349 | TUBING-28 INCH Cut 6.00 Inches | 83075780 | SS |
|
$64.99 | $62.28 | 1 | |
| 24 | F698772 | CLAMP | ACT | $5.69 | $5.56 | 3 | |||
| 25 | 83192377 | HOSE-11 INCH Cut As Required | 83192339 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 26 | 8267096 | NUT | 34059 | SS |
|
$3.69 | $3.59 | 2 | |
| 27 | 852503 | PLATE-PUMP MOUNT Pump Mount | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 8318701 | BUSHING | ACT | $3.59 | $3.50 | 6 | |||
| 29 | 8M0190980 | GROMMET | 834985 | SS |
|
$3.89 | $3.79 | 3 | |
| 30 | 72761 | WASHER | ACT | $1.60 | $1.57 | 3 | |||
| 31 | 41507 | SCREW | ACT | $0.50 | $0.49 | 3 | |||
| 32 | 852523 | ELBOW | ACT | $17.69 | $17.26 | 1 | |||
| 33 | 852521T1 | PUMP ASSY-ELEC Electric | 852521A1 | SS |
|
$358.99 | $343.02 | 1 | |
| 34 | 72761 | WASHER | ACT | $1.60 | $1.57 | 2 | |||
| 35 | 32228 | SCREW | ACT | $1.80 | $1.76 | 2 | |||
| 36 | 889615T | FILTER-FUEL Fuel | 852546 | SS |
|
$21.29 | $20.87 | 1 | |
| 37 | 852527A1 | HARNESS ASSY Fuel Pump | ACT |
|
$26.69 | $26.19 | 1 | ||
| 38 | 852526 | ----FUSE-3 AMP-VIOLET | ACT | $1.90 | $1.86 | 1 | |||
| 39 | 828054 | ----COVER-FUSE | ACT | $5.89 | $5.76 | 1 | |||
| - | 828547253 | ----CONDUIT-.25 X 3FT Cut As Required | ACT | $2.79 | $2.72 | AR | |||
| 40 | 816311T | TIE STRAP | 816311 | SS |
|
$0.60 | $0.59 | 1 | |
| - | 850396A1 | GASKET/SEAL SET Powerhead | ACT | $385.99 | $363.11 | 1 | |||
| - | 9763T66 | POWERHEAD ASSY | 9763A64 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 9763T66 | PH SJ 175XR2 | NLA |
|
$0.00 | $0.00 | 1 |
