| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

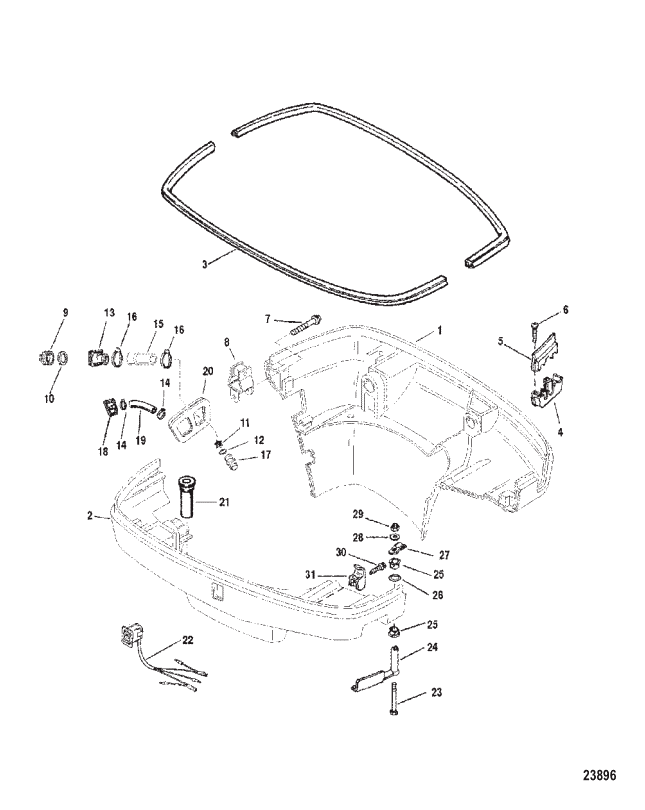

| 1 | 828044A1 | BOTTOM COWL Black | ACT |
|
$706.71 | $620.41 | 1 | ||
| 2 | 828045A1 | BOTTOM COWL Black | ACT |
|
$755.07 | $710.38 | 1 | ||
| 3 | 8M0109217 | ----SEAL Cowl (41.00 Inches) | 8253181 | SS |
|
$52.83 | $50.82 | 2 | |
| 4 | 822024 | CLAMP | ACT | $3.00 | $2.93 | 1 | |||
| 5 | 822023 | CLAMP | ACT | $4.60 | $4.49 | 1 | |||
| 6 | 92799 | SCREW (#10-16 x 1.12) | ACT | $1.80 | $1.76 | 2 | |||
| 7 | 82130040 | SCREW (M6 x 40) | ACT | $7.90 | $7.71 | 4 | |||
| 8 | 831209 | RETAINER | ACT | $30.58 | $30.03 | 1 | |||
| 9 | 821908 | PLUG | ACT | $7.40 | $7.22 | 1 | |||
| 10 | 821915 | WASHER | ACT | $4.20 | $4.10 | 1 | |||
| 11 | 8219631 | CHECK VALVE | 821963 | SS |
|
$18.25 | $17.92 | 1 | |
| 12 | 30641 | O-RING (.299 x .103) | ACT | $3.20 | $3.13 | 1 | |||
| 13 | 821952 | FITTING | ACT | $15.70 | $15.31 | 1 | |||
| 14 | 816311T | TIE STRAP (8.00 Inches) | 816311 | SS |
|
$0.59 | $0.58 | AR | |
| 15 | 8M0039077 | HOSE | 8320782 | SS |
|
$44.25 | $43.45 | 1 | |
| 16 | 815504212 | CLAMP Worm Gear | ACT | $5.90 | $5.76 | 2 | |||
| 17 | 8320761 | ELBOW Cylinder Block | 832076 | SS |
|
$61.58 | $59.24 | 1 | |
| 18 | 8M0077650 | FITTING Tell-Tale | 821904 | SS |
|
$17.42 | $17.11 | 1 | |
| 19 | 8M0108355 | HOSE (57.00 Inches Bulk) (Cut to 8 Inches) | 830756109 | SS |
|
$52.33 | $50.55 | 1 | |
| 20 | 889847 | IDLE EXHAUST BOOT Exhaust | 828216 | SS |
|
$18.20 | $17.75 | 1 | |
| 21 | 817519A1 | CHECK VALVE ASSEMBLY Drain | ACT | $16.40 | $16.00 | 2 | |||
| 22 | 8M0042301 | SWITCH ASSEMBLY | 856990 | SS |
|
$114.99 | $107.22 | 1 | |
| 23 | 824868 | SCREW (M6 x 75) | ACT | $12.79 | $12.49 | 1 | |||
| 24 | 889740A02 | FRONT HANDLE Black | 821253F1 | SS |
|
$65.92 | $63.40 | 1 | |
| 25 | 335891 | BUSHING | ACT | $13.50 | $13.17 | 2 | |||
| 26 | 48462 | O-RING (.614 x .070) | ACT | $1.80 | $1.76 | 1 | |||
| 27 | 8219423 | PAWL | ACT | $42.08 | $41.33 | 1 | |||
| 28 | 69057 | WASHER (.281 x .734 x .063) | ACT | $1.80 | $1.76 | 1 | |||
| 29 | 401366 | NUT (M6) | 400264 | SS |
|
$3.60 | $3.52 | 1 | |
| 30 | 8214281 | SCREW (#10-16 x .625) | ACT | $1.80 | $1.76 | 1 | |||
| 31 | 822873 | CLIP | ACT | $7.90 | $7.71 | 1 |
