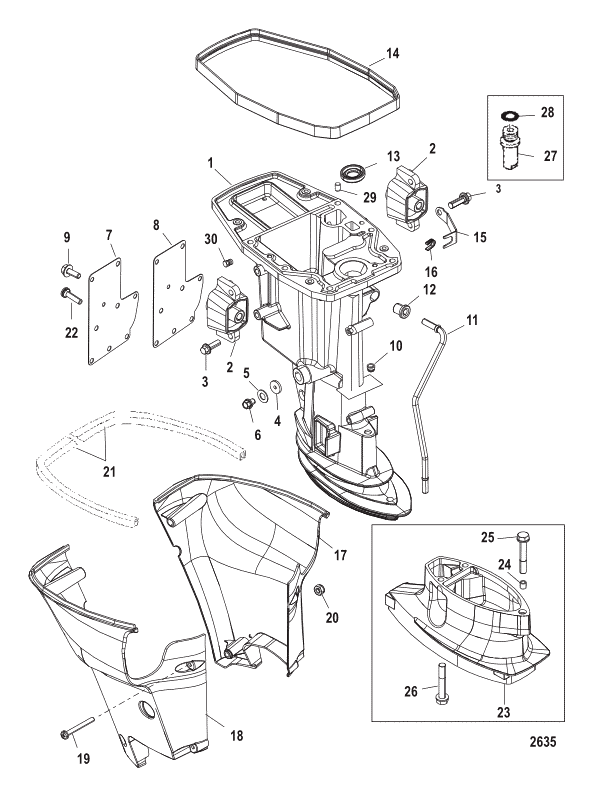

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 852995F1 | HOUSING Driveshaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 835409T1 | HOUSING Driveshaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 835410T2 | MOUNT Upper | 835410T | SS |
|
$162.17 | $152.72 | 2 | |
| 2 | 835410T2 | MOUNT Upper | ACT |
|
$162.17 | $152.72 | 2 | ||
| 2 | 856157T | MOUNT Upper | ACT |
|
$130.92 | $123.29 | 2 | ||
| 3 | 8136911 | SCREW (M8 x .98) | ACT | $4.70 | $4.59 | 4 | |||
| 4 | 826276 | BUMPER | ACT | $19.70 | $19.21 | 1 | |||
| 5 | 8M0204692 | GASKET | 828816 | SS |
|
$5.30 | $5.19 | 1 | |
| 6 | 8288181 | PLUG Drain | ACT | $18.33 | $18.01 | 1 | |||
| 7 | 853577T | COVER | ACT | $62.00 | $59.64 | 1 | |||
| 8 | 854617 | GASKET | ACT | $11.30 | $11.02 | 1 | |||
| 9 | 4006731 | SCREW (M6 x 16) | ACT | $2.90 | $2.83 | 8 | |||
| 10 | 827947 | SEAL | ACT | $7.50 | $7.32 | 1 | |||
| 11 | 852993 | TUBE Water | ACT |
|
$19.10 | $18.63 | 1 | ||
| 11 | 855260 | TUBE Water | ACT |
|
$18.67 | $18.33 | 1 | ||
| 11 | 855252 | TUBE Water | ACT |
|
$19.42 | $19.07 | 1 | ||
| 11 | 855253 | TUBE Water | ACT |
|
$74.17 | $71.34 | 1 | ||
| 12 | 8272411 | SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 413651 | SEAL Oil | ACT | $11.20 | $10.93 | 1 | |||
| 14 | 852432 | SEAL | ACT | $7.59 | $7.42 | 1 | |||
| 15 | 856179 | BRACKET | ACT | $12.30 | $12.00 | 1 | |||
| 16 | 856196 | SLEEVE | ACT | $3.60 | $3.52 | 1 | |||
| 17 | 850862F2 | COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 850863F2 | COVER | ACT |
|
$91.42 | $87.93 | 1 | ||
| 19 | 814776 | SCREW Adjusting (M6 x 55) | ACT | $3.20 | $3.13 | 4 | |||
| 20 | 401386 | NUT (M6) Stainless Steel | ACT | $5.10 | $4.98 | 4 | |||
| 21 | 8224211 | BUMPER | ACT | $2.70 | $2.64 | 2 | |||
| 22 | 855299 | GROMMET | ACT | $5.80 | $5.66 | 1 | |||
| 23 | 853963F1 | ADAPTER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 12009 | BUSHING (.31 x .45 x .50) | ACT |
|
$2.90 | $2.83 | 1 | ||
| 25 | 82407110 | SCREW (M8 x 50) | ACT |
|
$7.00 | $6.83 | 1 | ||
| 26 | 8240717 | SCREW (M8 x 30) | ACT |
|
$5.20 | $5.08 | 2 | ||
| 27 | 825578A1 | RELIEF VALVE ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 825579 | ----O-RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 82364M | PIN Dowel | NLA |
|
$0.00 | $0.00 | 2 | ||
| 30 | 68307 | PLUG | ACT | $12.30 | $12.00 | 1 |
