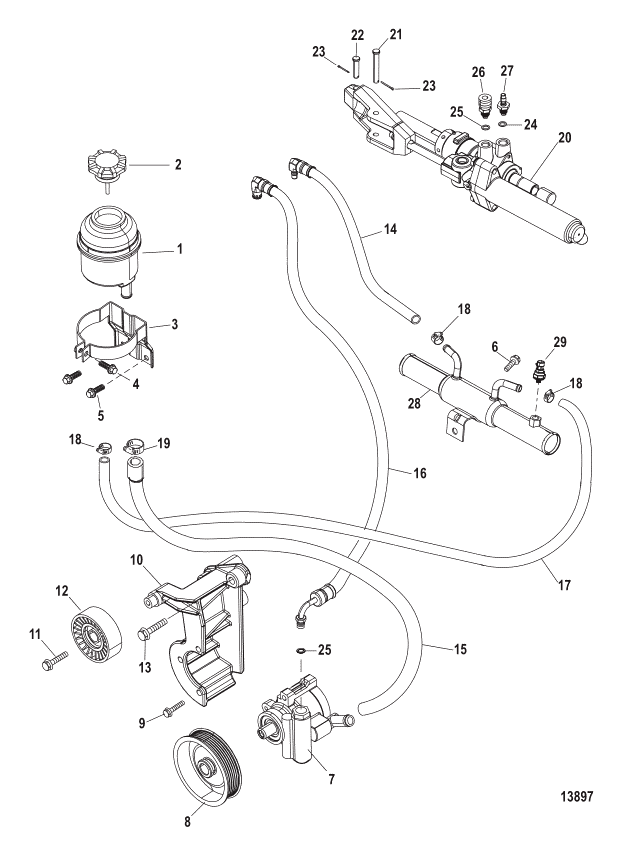

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8M0203901 | RESERVOIR KIT | 865264A02 | SS |
|
$135.58 | $127.68 | 1 | |
| 1 | 8M0203902 | ----RESERVOIR ASSEMBLY Oil - Power-Assisted Steering | 865264T | SS |
|
$74.92 | $72.06 | 1 | |
| 2 | 865263 | ----CAP Oil Reservoir - Brown | ACT | $22.33 | $21.93 | 1 | |||
| 3 | 865262A02 | ----BRACKET ASSEMBLY | 865262A01 | SS |
|
$51.99 | $48.84 | 1 | |
| 4 | 82130025 | --------SCREW (M6 x 25) | ACT | $4.10 | $4.00 | 1 | |||
| 5 | 4000354 | --------SCREW (M8 x 30) | ACT | $4.80 | $4.69 | 2 | |||
| 6 | 816585 | SCREW (.312-18 x .875) | ACT | $3.40 | $3.32 | 1 | |||
| 7 | 865710T | PUMP ASSEMBLY .75 Shaft Diameter Power Steering | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 865795 | PULLEY Power Steering | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 4010720 | SCREW (M8 x 20) | ACT | $4.20 | $4.10 | 3 | |||
| 10 | 8M0131223 | BRACKET Power Steering Pump | 865595T01 | SS |
|
$304.50 | $286.75 | 1 | |
| 11 | 4010816 | SCREW (M10 x 16) Hex Flange - Stainless Steel | ACT | $3.00 | $2.93 | 1 | |||
| 12 | 8M6500024 | PULLEY | 865598 | SS |
|
$44.49 | $43.81 | 1 | |
| 13 | 4010890 | SCREW (M10 x 90) Hex Flange - Stainless Steel | ACT | $25.92 | $25.45 | 3 | |||
| 14 | 865390015 | HOSE Male Quick Connect Cylinder to Cooler | ACT | $63.67 | $61.24 | 1 | |||
| 15 | 864229 | HOSE Pump to Reservoir | ACT | $55.33 | $53.22 | 1 | |||
| 16 | 8M0063021 | HOSE Pressure Pump to Cylinder | 866687 | SS |
|
$266.99 | $240.33 | 1 | |
| 16 | 8M0063019 | HOSE Pressure Pump to Cylinder | 866509 | SS |
|
$298.42 | $281.02 | 1 | |
| 17 | 865717 | HOSE Reservoir to Cooler | ACT | $58.32 | $56.11 | 1 | |||
| 18 | 815504105 | CLAMP Worm Gear (11-18 mm) | ACT | $0.00 | $0.00 | 3 | |||
| 19 | 815504210 | CLAMP Worm Gear | ACT | $4.20 | $4.10 | 2 | |||
| 20 | 8M0208402 | ACTUATOR ASSEMBLY Steering | 865383A02 | SS |
|
$1,559.49 | $1,429.50 | 1 | |
| 21 | 15878 | ----PIN Clevis | ACT |
|
$20.50 | $20.13 | 1 | ||
| 22 | 16419 | ----PIN Clevis | ACT |
|
$20.99 | $20.54 | 1 | ||
| 23 | 46950 | ----COTTER PIN | ACT | $4.20 | $4.10 | 2 | |||
| 24 | 806232 | ----O-RING (.239 x .064) | ACT | $1.80 | $1.76 | 1 | |||
| 25 | 89879 | ----O-RING (.301 x .064) | ACT | $1.60 | $1.57 | 2 | |||
| 26 | 865415 | FITTING | ACT | $33.99 | $33.34 | 1 | |||
| 27 | 865414001 | FITTING | ACT | $10.99 | $10.73 | 1 | |||
| 28 | 8M0125856 | COOLER Power Steering | 863820T1 | SS |
|
$294.83 | $277.41 | 1 | |
| 29 | 8M0157742 | SENSOR | 881879010 | SS |
|
$209.99 | $195.24 | 1 | |
| NS | 8M0074363 | COVER Hose Clamp End | 8079921 | REP |
|
$3.10 | $3.03 | AR |
