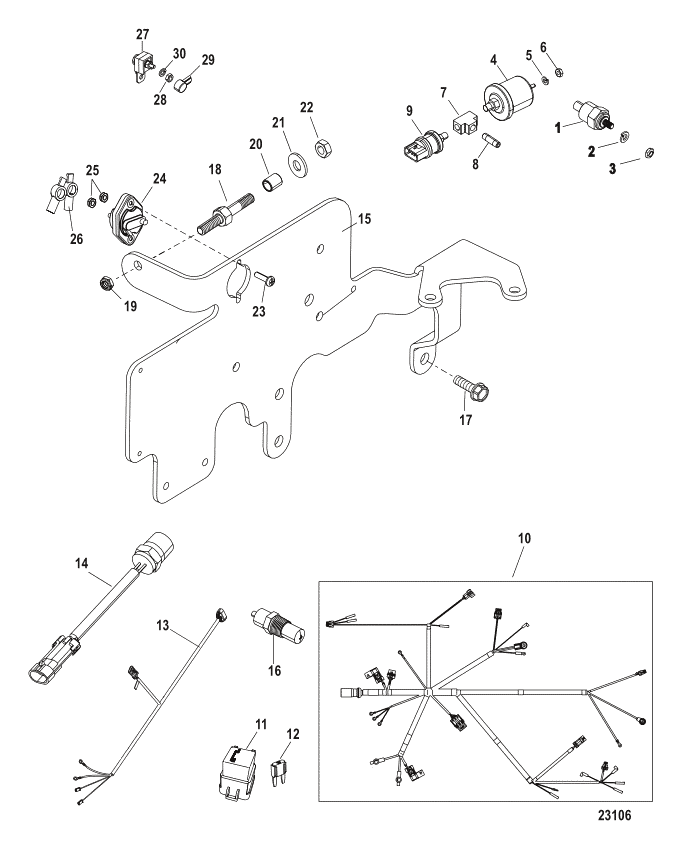

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806490T | SENDER-WATER TEMP Water Temperature | ACT | $41.49 | $40.58 | 1 | |||
| 1 | 49734 | SENDER ASSY Water Temperature | ACT |
|
$90.49 | $86.97 | OPT | ||
| 2 | 26996 | ----LOCKWASHER | ACT | $1.20 | $1.18 | 1 | |||
| 3 | 68219 | ----NUT | ACT | $2.99 | $2.92 | 1 | |||
| 4 | 8M0068784 | SENDER ASSY Oil Pressure | 815425T | SS |
|
$133.49 | $125.49 | 1 | |
| 4 | 37293T | SENDER ASSY-DUAL Oil Pressure | ACT |
|
$205.99 | $193.68 | OPT | ||
| 5 | 26996 | ----LOCKWASHER | ACT | $1.20 | $1.18 | 1 | |||
| 6 | 68219 | ----NUT | ACT | $2.99 | $2.92 | 1 | |||
| 7 | 52930 | FITTING | ACT | $14.49 | $14.14 | 1 | |||
| 8 | 38992 | FITTING-NIPPLE | ACT | $44.99 | $44.04 | 1 | |||
| 9 | 865934 | SWITCH-OIL | ACT | $107.99 | $101.47 | 1 | |||
| 10 | 865931T03 | HARNESS Engine | 865931T02 | SS |
|
$372.99 | $351.18 | 1 | |
| 11 | 8M0219830 | ----RELAY-TRIM | 882751 | SS |
|
$18.69 | $18.33 | 1 | |
| 12 | 832969T15 | ----FUSE-BLUE-15AMP | 83296915 | SS |
|
$4.09 | $4.00 | 1 | |
| 12 | 832969T15 | ----FUSE-BLUE-15AMP | 83296915 | SS |
|
$4.09 | $4.00 | 1 | |
| 13 | 866727T01 | HARNESS-TRANSOM Transom | ACT | $64.49 | $61.99 | 1 | |||
| 14 | 866115 | SWITCH-TEMPERATUR Turn Key Start | ACT | $70.99 | $68.13 | 2 | |||
| 15 | 899719T | BRACKET Electrical Mounting | ACT | $96.49 | $92.58 | 1 | |||
| 16 | 48952 | SWITCH ASSY-TEMP | ACT | $137.99 | $129.72 | 1 | |||
| 17 | 8M0113180 | SCREW | 98794 | SS |
|
$5.09 | $4.98 | 3 | |
| 18 | 8M0113178 | STUD Throttle Cable Anchor | 96112 | SS |
|
$3.09 | $3.01 | 1 | |
| 19 | 8267089 | NUT | ACT | $1.50 | $1.47 | 1 | |||
| 20 | 31866 | SPACER | ACT | $5.69 | $5.56 | 1 | |||
| 21 | 20533 | WASHER | ACT | $1.50 | $1.47 | 1 | |||
| 22 | 8267139 | NUT Lock | ACT | $2.59 | $2.53 | 1 | |||
| 23 | 830861 | SCREW | ACT | $1.80 | $1.76 | 2 | |||
| 24 | 11178A01 | ORD 11178A01 | 865827T | REP |
|
$121.49 | $114.19 | 1 | |
| 25 | 8M0204718 | NUT | 826709106 | SS |
|
$4.69 | $4.59 | 2 | |
| 26 | 89919 | BOOT-INSULATOR | ACT | $2.49 | $2.43 | 2 | |||
| 27 | 79023T90 | FUSE ASSY-90 AMP | 79023A90 | SS |
|
$0.00 | $0.00 | 1 | |
| 28 | 21825 | NUT | ACT | $1.70 | $1.66 | 1 | |||
| 29 | 79695T | BOOT (BLACK) | 79695 | SS |
|
$5.49 | $5.37 | 1 | |
| 30 | 400247 | LOCKWASHER | ACT | $1.80 | $1.76 | 1 |
