| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

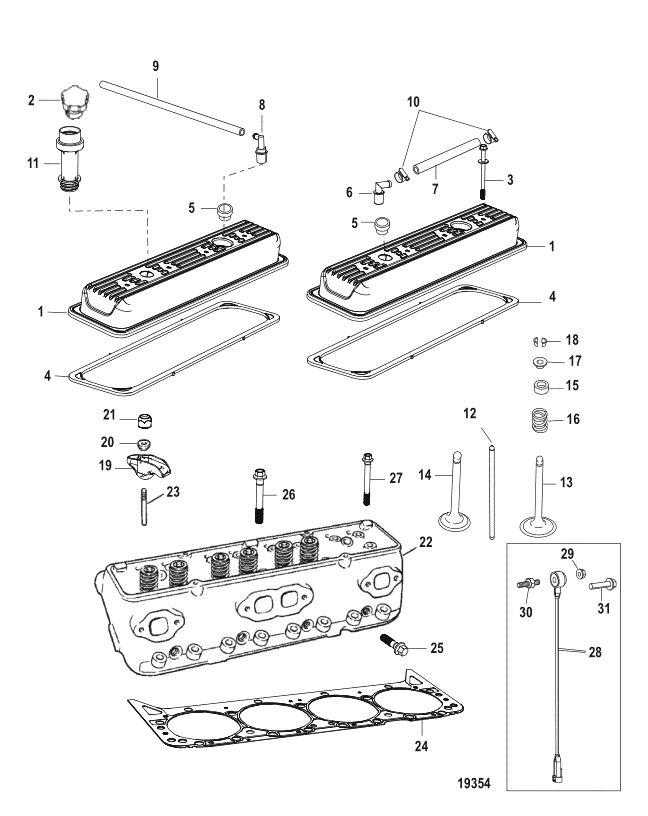

| 1 | 809995 | COVER Rocker With Oil Fill Hole | ACT | $241.92 | $227.82 | 2 | |||
| 1 | 8M0086350 | COVER Rocker Without Oil Fill Hole | ACT | $311.25 | $293.11 | 1 | |||
| 2 | 18710002 | CAP Oil Fill | ACT | $38.92 | $38.22 | 1 | |||
| 3 | 8M0084557 | SCREW | 17344 | SS |
|
$33.92 | $33.31 | 8 | |
| 4 | 8M0150306 | GASKET Rocker Cover | 17467 | SS |
|
$112.25 | $105.71 | 2 | |
| 5 | 8M0071559 | GROMMET | 52188 | SS |
|
$8.50 | $8.29 | 2 | |
| 6 | 97850T | ELBOW 90 Degree | 97850 | SS |
|
$5.70 | $5.56 | 1 | |
| 7 | 8M0062321 | HOSE (33.00 Inches Bulk) | 86197763 | SS |
|
$53.42 | $51.38 | 1 | |
| 8 | 8M2017060 | VALVE PCV | 861476 | SS |
|
$13.20 | $12.94 | 1 | |
| 9 | 8M0086022 | HOSE (16.50 Inches Bulk) Breather | 1589424 | SS |
|
$36.33 | $35.68 | 1 | |
| 10 | 815504105 | CLAMP Worm Gear (11-18 mm) | ACT | $0.00 | $0.00 | 2 | |||
| 11 | 807688T | TUBE Oil Fill | ACT | $106.58 | $100.37 | 1 | |||
| 12 | 173391 | PUSH ROD | ACT | $46.67 | $45.83 | 16 | |||
| 13 | 8M0231307 | VALVE Exhaust | 8243171 | SS |
|
$117.50 | $110.65 | 8 | |
| 13 | 8243181 | VALVE Exhaust | NLA |
|
$0.00 | $0.00 | AR | ||
| 14 | 802555 | VALVE Intake | ACT |
|
$100.42 | $94.57 | 8 | ||
| 14 | 8M0146076 | VALVE Intake | 809992 | REP |
|
$56.25 | $55.13 | 8 | |
| 15 | 8M0050563 | SEAL Intake | 976641 | SS |
|
$11.80 | $11.51 | 8 | |
| 15 | 8M0150312 | SEAL Exhaust | 804507 | SS |
|
$26.08 | $25.62 | 8 | |
| 16 | 483471 | SPRING | ACT | $45.00 | $44.19 | 16 | |||
| 17 | 483481 | CAP | ACT | $19.60 | $19.12 | 16 | |||
| 18 | 547971 | KEY | ACT | $17.10 | $16.68 | 32 | |||
| 19 | 8M0173156 | ARM KIT Rocker | 35329 | REP |
|
$74.00 | $71.18 | 16 | |
| 20 | 35331 | ----BALL Rocker Arm | NLA |
|
$0.00 | $0.00 | 16 | ||
| 21 | 34516 | ----NUT | ACT | $20.70 | $20.19 | 16 | |||
| 22 | 8M0087884 | CYLINDER HEAD ASSEMBLY | 802556 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 22 | 8M0188302 | CYLINDER HEAD ASSEMBLY | 803860T | REP |
|
$1,225.00 | $1,156.41 | 2 | |
| 23 | 34522 | ----STUD | ACT |
|
$15.10 | $14.73 | AR | ||
| 23 | 34521 | ----STUD | NLA |
|
$0.00 | $0.00 | AR | ||
| 24 | 75611001 | GASKET | 756111 | REP |
|
$65.75 | $63.47 | 2 | |
| 25 | 11968 | SCREW (.437-14 x 1.750) | ACT | $16.30 | $15.90 | 16 | |||
| 26 | 119671 | SCREW (.437-14 x 3.00) | ACT | $17.10 | $16.68 | 4 | |||
| 27 | 11966 | SCREW (.437-14 x 3.750) | ACT | $16.50 | $16.09 | 14 | |||
| 28 | 8M6003194 | SENSOR ASSEMBLY Knock | 878187 | SS |
|
$77.92 | $74.95 | 2 | |
| 29 | 82670912 | NUT (.375-16) Stainless S | ACT |
|
$6.80 | $6.64 | 2 | ||
| 30 | 863414 | STUD Knock Sensor | ACT |
|
$29.42 | $28.89 | 2 | ||
| 31 | 865982007 | SCREW (.375-16 x 1.25) He Knock Sensor | ACT |
|
$5.10 | $4.98 | 2 | ||
| - | 8M0088396 | LONGBLOCK ASSEMBLY | 863660A2 | NLA |
|
$0.00 | $0.00 | 1 | |
| - | 866138A03 | LONGBLOCK ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 8M0187368 | LONGBLOCK ASSEMBLY | 865108A02 | REP |
|
$11,643.75 | $10,828.69 | 1 | |
| - | 861246A05 | GASKET SET Engine Overhaul | ACT | $826.71 | $777.78 | 1 |
