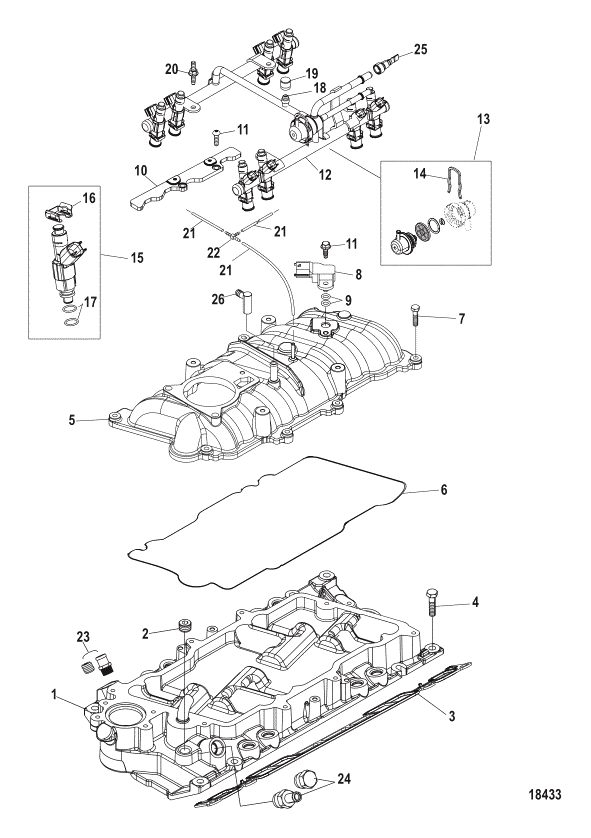

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0104793 | MANIFOLD Intake Lower | 885164 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 12524 | PLUG (.375-18 x .475) Brass | ACT | $5.10 | $4.98 | 1 | |||
| 3 | 807473A1 | GASKET SET Intake Manifold | ACT | $74.00 | $71.44 | 1 | |||
| 4 | 8M0214949 | SCREW (.312-18 x 1.375) | 808010 | SS |
|
$3.80 | $3.71 | 8 | |
| 5 | 8M0097033 | MANIFOLD Intake Upper | 885167 | SS |
|
$416.36 | $397.98 | 1 | |
| 6 | 8M0097034 | GASKET Intake Manifold | 885168 | SS |
|
$51.75 | $49.78 | 1 | |
| 7 | 885166 | SCREW | ACT | $18.33 | $18.01 | 13 | |||
| 8 | 8M0087834 | SENSOR Manifold Air Pressure and Temperature | 885165 | SS |
|
$129.99 | $122.50 | 1 | |
| 9 | 881733 | SEAL | ACT | $21.00 | $20.62 | 2 | |||
| 10 | NSS | NOT SOLD SEPARATE Bracket (Component of 885164) |
|
$0.00 | $0.00 | 1 | |||
| 11 | 885180 | SCREW | ACT | $25.75 | $25.29 | 4 | |||
| 12 | 8M0226853 | FUEL RAIL ASSEMBLY | 885173 | SS |
|
$993.86 | $935.03 | 1 | |
| 13 | 885174 | REGULATOR Fuel Pressure | ACT | $414.42 | $390.26 | 1 | |||
| 14 | 885175 | CLIP Retaining | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 885176 | INJECTOR | ACT |
|
$395.99 | $378.45 | 8 | ||
| 16 | 8M2001570 | ----RETAINER Injector | 885177 | SS |
|
$17.70 | $17.26 | 1 | |
| 17 | 892609 | ----O-RING KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 885178 | VALVE Fuel Pressure Service | ACT | $20.92 | $20.54 | 1 | |||
| 19 | 885179 | CAP Fuel Pressure Sevice Valve | ACT | $19.80 | $19.31 | 1 | |||
| 20 | 885180 | SCREW | ACT | $25.75 | $25.29 | 4 | |||
| 21 | 8M0063567 | HOSE (58.00 Inches Bulk) Cut to Appropriate Length | 80617382 | SS |
|
$37.67 | $36.99 | 2 | |
| 22 | 806689 | FITTING Tee | ACT | $1.80 | $1.76 | 1 | |||
| 23 | 384071 | PLUG Pipe (.500) | 37372 | SS |
|
$15.00 | $14.63 | 1 | |
| 23 | 806242 | CONNECTOR Barb | ACT |
|
$73.33 | $70.54 | 1 | ||
| 24 | 863426 | FITTING EGR Plug | ACT |
|
$7.20 | $7.03 | 1 | ||
| 24 | 866157 | PLUG EGR Port | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 8623601 | PLUG Fuel Rail Block Off | ACT | $27.25 | $26.76 | 1 | |||
| 26 | 863432T | FITTING 90 Degree Vent | 863432 | SS |
|
$4.90 | $4.78 | 1 | |
| - | 861246A05 | GASKET SET Engine Overhaul | ACT | $826.71 | $777.78 | 1 |
