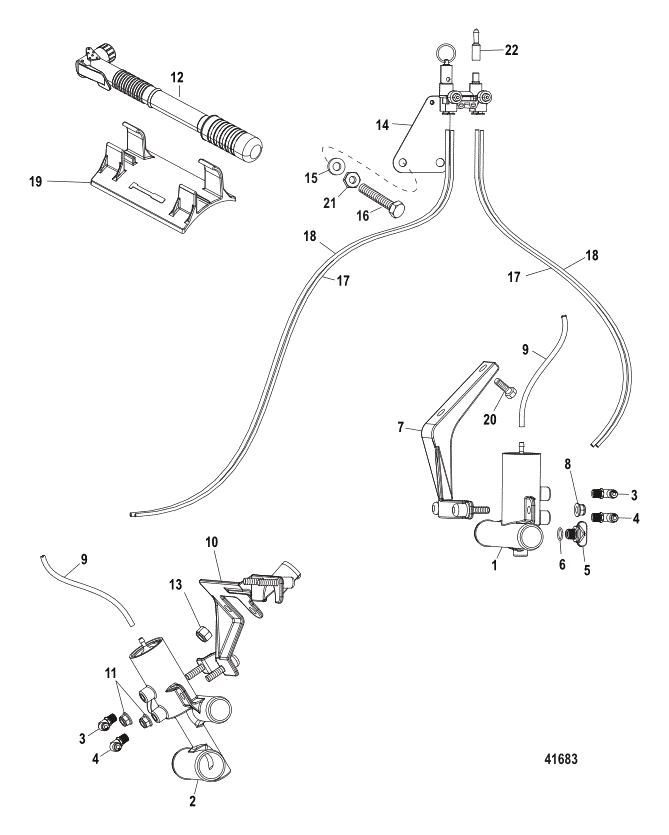

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 863717A2 | ACTUATOR ASSEMBLY Water Drain | ACT |
|
$412.50 | $394.29 | 1 | ||
| 2 | 863716A2 | ACTUATOR ASSEMBLY Water Drain | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 863068 | ----FITTING Orange (90 Degree) Air | ACT | $10.90 | $10.63 | 1 | |||
| 3 | 8M0082320 | ----FITTING Orange - Straight Air | 863719 | SS |
|
$13.00 | $12.68 | 1/2 | |
| 4 | 863024 | ----FITTING Gray (90 Degree) Air | ACT | $13.80 | $13.46 | 1 | |||
| 4 | 8M0082319 | ----FITTING Gray - Straight Air | 863718 | SS |
|
$13.00 | $12.68 | 1/2 | |
| 5 | 8M0119211 | ----PLUG KIT (.500-13) Royal | 806608A1 | SS |
|
$10.18 | $9.95 | 1 | |
| 6 | 32509 | --------O-RING (.489 x .070) | ACT |
|
$2.39 | $2.33 | 1 | ||
| 7 | 863863T | BRACKET Actuator Mounting | ACT |
|
$51.33 | $49.38 | 1 | ||
| 8 | 826365 | NUT (M8) Nylock | ACT | $5.90 | $5.76 | 4 | |||
| 9 | 8630561 | HOSE (42.00 Inches Bulk) Black Air | ACT | $13.90 | $13.56 | 2 | |||
| 10 | 863862T | BRACKET Actuator/Pump Mounting | 863035T | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11 | 826292 | NUT (M10) Brass/Nickel Plated Nylock | ACT | $4.20 | $4.10 | 2 | |||
| 12 | 863057 | PUMP Air | ACT | $26.42 | $25.94 | 1 | |||
| 13 | 826292 | NUT (M10) Brass/Nickel Plated | ACT | $4.20 | $4.10 | 2 | |||
| 14 | 862969A2 | MANIFOLD ASSEMBLY Air | ACT |
|
$245.33 | $231.04 | 1 | ||
| 15 | 4002314 | ----WASHER | ACT | $3.70 | $3.61 | 2 | |||
| 16 | 864887 | ----SCREW (M5) | ACT | $1.80 | $1.76 | 2 | |||
| 17 | 8M0062605 | HOSE (40.00 Inches Bulk) Green | 8630552 | SS/NLA |
|
$0.00 | $0.00 | 2 | |
| 18 | 8M0062601 | HOSE (40.00 Inches Bulk) Grey | 8630542 | SS |
|
$28.34 | $27.83 | 2 | |
| 19 | 863059 | BRACKET Air Pump | ACT | $62.84 | $60.44 | 1 | |||
| 20 | 4000374 | SCREW (M10 x 16) | ACT | $6.20 | $6.05 | 2 | |||
| 21 | 826292 | NUT (M10) Brass/Nickel Plated | ACT | $4.20 | $4.10 | 2 | |||
| 22 | 883503 | CAP Service Point | ACT | $1.50 | $1.47 | 1 |
