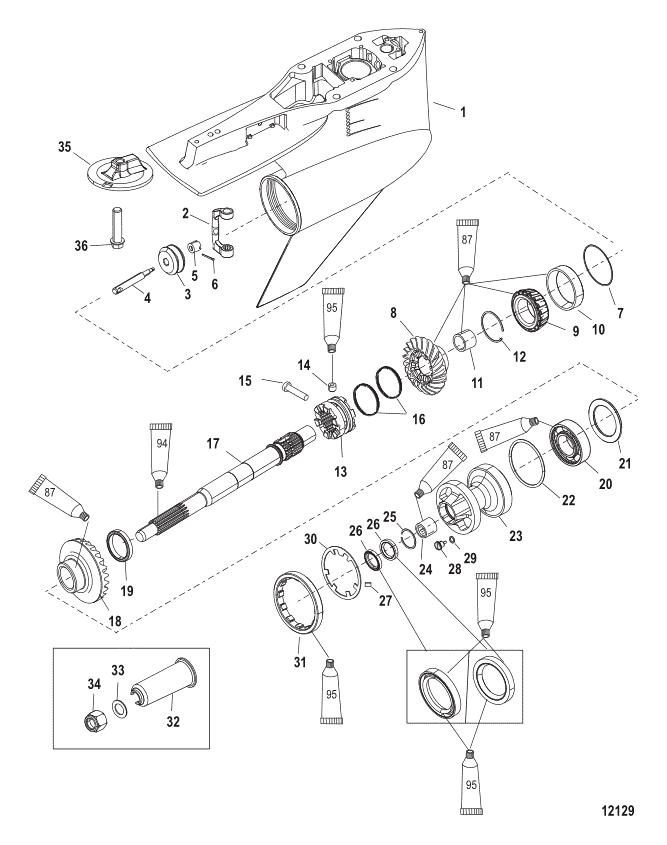

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 8M0131313 | GEAR HOUSING ASSEMBLY Complete | 842004T02 | SS |
|
$9,955.00 | $9,121.37 | 1 | |
| - | 842004T26 | GEAR HOUSING ASSEMBLY Complete | 842004T04 | SS |
|
$10,103.60 | $9,048.63 | 1 | |
| - | 842004T28 | GEAR HOUSING ASSEMBLY Complete | 842004T06 | SS |
|
$9,665.00 | $8,859.45 | 1 | |
| - | 842004T10 | GEAR HOUSING ASSEMBLY Complete | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 842004T24 | GEAR HOUSING ASSEMBLY Complete | 842004T16 | SS |
|
$9,905.00 | $9,075.53 | 1 | |
| - | 842004T18 | GEAR HOUSING ASSEMBLY Complete | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 842004T01 | ----GEAR HOUSING ASSEMBLY Basic | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 8M0226861 | ----SHIFT CRANK | 823903 | SS |
|
$43.50 | $42.72 | 1 | |
| 3 | 19755T7 | ----SPOOL ASSEMBLY | ACT |
|
$48.02 | $47.15 | 1 | ||
| 4 | NSS | ----------------NOT SOLD SEPARATE Spool |
|
$0.00 | $0.00 | 1 | |||
| 5 | NSS | ----------------NOT SOLD SEPARATE Sleeve |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | ----------------NOT SOLD SEPARATE Cotter Pin |
|
$0.00 | $0.00 | 1 | |||
| 7 | 47397A1 | ----SHIM SET | ACT | $16.75 | $16.45 | AR | |||
| 8 | 859321T04 | ----GEAR SET Forward/Pinion | ACT |
|
$876.07 | $824.21 | 1 | ||
| 8 | 878611T03 | ----GEAR SET Forward/Pinion | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 878617A05 | ----GEAR SET Forward/Pinion | ACT |
|
$630.83 | $593.31 | 1 | ||
| 9 | 828437A2 | --------BEARING ASSEMBLY | ACT | $184.75 | $173.98 | 1 | |||
| 10 | NSS | ----------------NOT SOLD SEPARATE Cup |
|
$0.00 | $0.00 | 1 | |||
| 11 | 30895T | --------BEARING Needle | ACT | $20.75 | $20.38 | 1 | |||
| 12 | 856823 | --------RING Retaining | ACT | $11.00 | $10.73 | 1 | |||
| 13 | 848878T | ----CLUTCH | ACT | $341.75 | $321.83 | 1 | |||
| 14 | 78909 | ----PIN Detent | ACT | $19.17 | $18.82 | 2 | |||
| 15 | 848838 | ----PIN Cross | ACT | $45.42 | $44.60 | 1 | |||
| 16 | 78962 | ----SPRING | ACT | $11.50 | $11.22 | 2 | |||
| 17 | 841978 | ----PROPELLER SHAFT | ACT | $415.92 | $391.67 | 1 | |||
| 18 | 8M0192235 | ----GEAR Reverse | 848881A1 | SS |
|
$826.58 | $777.64 | 1 | |
| 18 | 844147T01 | ----GEAR Reverse | ACT |
|
$383.16 | $366.14 | 1 | ||
| 18 | 844148T01 | ----GEAR Reverse | ACT |
|
$473.56 | $452.52 | 1 | ||
| 19 | 8241081 | --------THRUST SPACER | ACT | $81.67 | $78.55 | 1 | |||
| 20 | 88957T | --------BEARING Ball | ACT | $64.50 | $62.04 | 1 | |||
| 21 | 681001 | ----RING Thrust | ACT | $18.80 | $18.34 | 1 | |||
| 22 | 8M0214920 | ----O-RING | 31534 | SS |
|
$6.30 | $6.15 | 1 | |
| 23 | 848840A1 | ----CARRIER ASSEMBLY Bearing | 848840T1 | SS |
|
$405.93 | $387.89 | 1 | |
| 24 | 817072 | --------BEARING Roller | ACT | $90.17 | $86.73 | 1 | |||
| 25 | 817071 | --------RING Snap | ACT | $4.00 | $3.91 | 1 | |||
| 26 | 815565 | --------SEAL Oil | ACT |
|
$28.34 | $27.83 | 2 | ||
| 27 | 30281 | ----KEY | ACT | $3.00 | $2.93 | 1 | |||
| 28 | 8M0058389 | ----PLUG KIT Drain - Magnetic | 67892A06 | SS |
|
$10.69 | $10.44 | 1 | |
| 29 | 191833 | --------SEAL | NLA |
|
$1.45 | $1.42 | 1 | ||
| 30 | 79447 | ----TAB WASHER | ACT | $13.70 | $13.36 | 1 | |||
| 31 | 8M0168577 | ----RETAINER | 79448 | SS |
|
$43.15 | $42.23 | 1 | |
| 32 | 8480611 | ----COVER | ACT | $24.54 | $24.19 | 1 | |||
| 33 | 85344 | ----WASHER (.750 Inside Diameter) | ACT | $2.81 | $2.75 | 1 | |||
| 34 | 52707Q1 | ----PROP NUT KIT (.750-16) | ACT | $15.63 | $15.36 | 1 | |||
| 35 | 66024 | SCREW (.437-14 x 1.75) | ACT | $9.70 | $9.46 | 1 | |||
| 36 | 76214Q5 | ANODE | 762145 | SS |
|
$29.99 | $29.53 | 1 | |
| - | 816575A6 | SEAL KIT Gear Housing | ACT | $90.08 | $86.65 | 1 |
