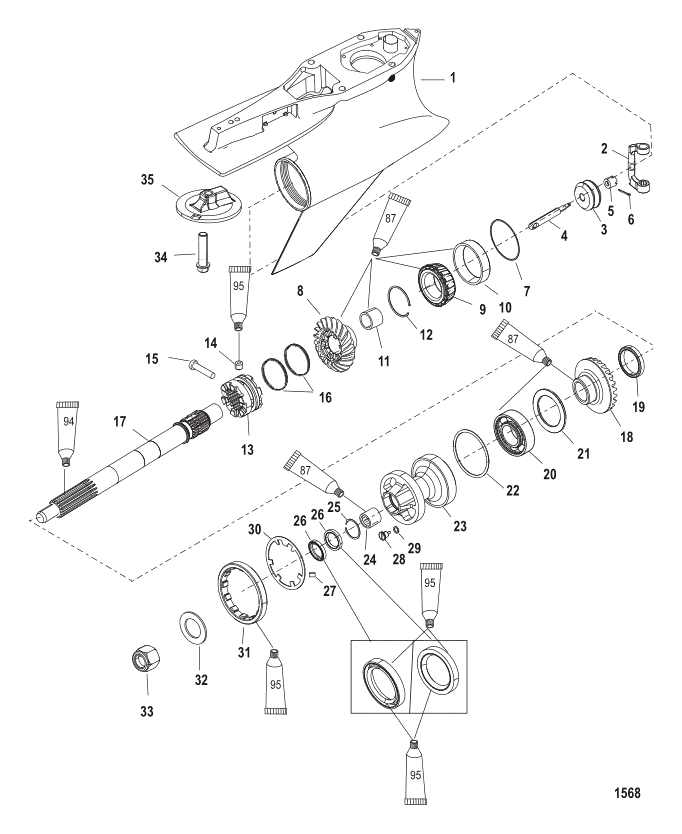

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 840306T14 | GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.62:1 Long Standard) | ACT | $10,665.00 | $9,551.47 | 1 | |||
| - | 840307T23 | GEAR HOUSING ASSEMBLY Complete (1.62:1 Long Standard)(Heavy Duty) | ACT | $10,575.00 | $9,468.31 | 1 | |||
| - | 840306T16 | GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.75:1 Long Standard) | ACT | $10,675.00 | $9,557.87 | 1 | |||
| - | 840307T27 | GEAR HOUSING ASSEMBLY Complete (1.75:1 Long Standard)(Heavy Duty) | ACT |  | $10,565.00 | $9,461.91 | 1 | ||
| 1 | 840306T3 | ----GEAR HOUSING ASSEMBLY Basic, With Torque Tab | ACT | $5,295.00 | $4,852.07 | 1 | |||
| 2 | 8M0226861 | ----SHIFT CRANK | 823903 | SS | | $41.83 | $41.08 | 1 | |
| 3 | 19755T7 | ----SPOOL ASSEMBLY | ACT | | $46.17 | $45.34 | 1 | ||
| 4 | NSS | ----------------NOT SOLD SEPARATE Spool | | $0.00 | $0.00 | 1 | |||
| 5 | NSS | ----------------NOT SOLD SEPARATE Sleeve | | $0.00 | $0.00 | 1 | |||
| 6 | NSS | ----------------NOT SOLD SEPARATE Cotter Pin | | $0.00 | $0.00 | 1 | |||
| 7 | 47397A1 | ----SHIM SET | ACT | $19.30 | $18.82 | AR | |||
| 8 | 878087A6 | ----GEAR SET Forward/Pinion | ACT | | $776.85 | $730.64 | 1 | ||
| 8 | 859321T04 | ----GEAR SET Forward/Pinion | ACT | | $842.36 | $792.49 | 1 | ||
| 9 | 828437A2 | --------BEARING ASSEMBLY | ACT | $177.67 | $167.31 | 1 | |||
| 10 | NSS | ----------------NOT SOLD SEPARATE Cup | | $0.00 | $0.00 | 1 | |||
| 11 | 30895T | --------BEARING Needle | ACT | $19.92 | $19.56 | 1 | |||
| 12 | 856823 | --------RING Retaining | ACT | $10.60 | $10.34 | 1 | |||
| 13 | 848878T | ----CLUTCH | ACT | $328.58 | $309.43 | 1 | |||
| 14 | 78909 | ----PIN Detent | ACT | $18.42 | $18.09 | 2 | |||
| 15 | 848838 | ----PIN Cross | ACT | $43.67 | $42.88 | 1 | |||
| 16 | 78962 | ----SPRING | ACT | $11.10 | $10.83 | 2 | |||
| 17 | 841978 | ----PROPELLER SHAFT | ACT | $399.92 | $376.61 | 1 | |||
| 18 | 848880T1 | ----GEAR Reverse | ACT | | $778.14 | $731.85 | 1 | ||
| 18 | 8M0192235 | ----GEAR Reverse | 848881A1 | SS | | $794.79 | $747.74 | 1 | |
| 19 | 8241081 | --------THRUST SPACER | ACT | $78.50 | $75.51 | 1 | |||
| 20 | 88957T | --------BEARING Ball | ACT | $62.00 | $59.64 | 1 | |||
| 21 | 681001 | ----RING Thrust | ACT | $18.10 | $17.65 | 1 | |||
| 22 | 8M0214920 | ----O-RING | 31534 | SS | | $6.10 | $5.95 | 1 | |
| 23 | 848840A1 | ----CARRIER ASSEMBLY Bearing | 848840T1 | SS | | $405.93 | $387.89 | 1 | |
| 24 | 817072 | --------BEARING Roller | ACT | $86.67 | $83.36 | 1 | |||
| 25 | 817071 | --------RING Snap | ACT | $3.80 | $3.71 | 1 | |||
| 26 | 815565 | --------SEAL Oil | ACT | $27.25 | $26.76 | 2 | |||
| 27 | 30281 | ----KEY | ACT | $2.90 | $2.83 | 1 | |||
| 28 | 8M0058389 | ----PLUG KIT Drain - Magnetic | 67892A06 | SS | | $10.29 | $10.05 | 1 | |
| 29 | 191833 | --------SEAL | ACT | $1.39 | $1.36 | 1 | |||
| 30 | 79447 | ----TAB WASHER | ACT | $13.20 | $12.88 | 1 | |||
| 31 | 8M0168577 | ----RETAINER | 79448 | SS | | $41.49 | $40.60 | 1 | |
| 32 | 85344 | ----WASHER (.750 Inside Diameter) | ACT | $2.70 | $2.64 | 1 | |||
| 33 | 52707Q1 | ----PROP NUT KIT (.750-16) | ACT | $15.63 | $15.36 | 1 | |||
| 34 | 66024 | SCREW (.437-14 x 1.75) | ACT | $9.30 | $9.07 | 1 | |||
| 35 | 76214Q5 | ANODE | 762145 | SS | | $28.99 | $28.40 | 1 | |
| - | 816575A6 | SEAL KIT Gear Housing | ACT | $86.58 | $83.28 | 1 | |||
| - | 8M0183487 | PROP HUB KIT | 840389K06 | SS | | $190.00 | $182.05 | 1 | |
| - | 840382A02 | ----SNUBBER STRIP KIT | ACT | $26.00 | $25.58 | 1 |
