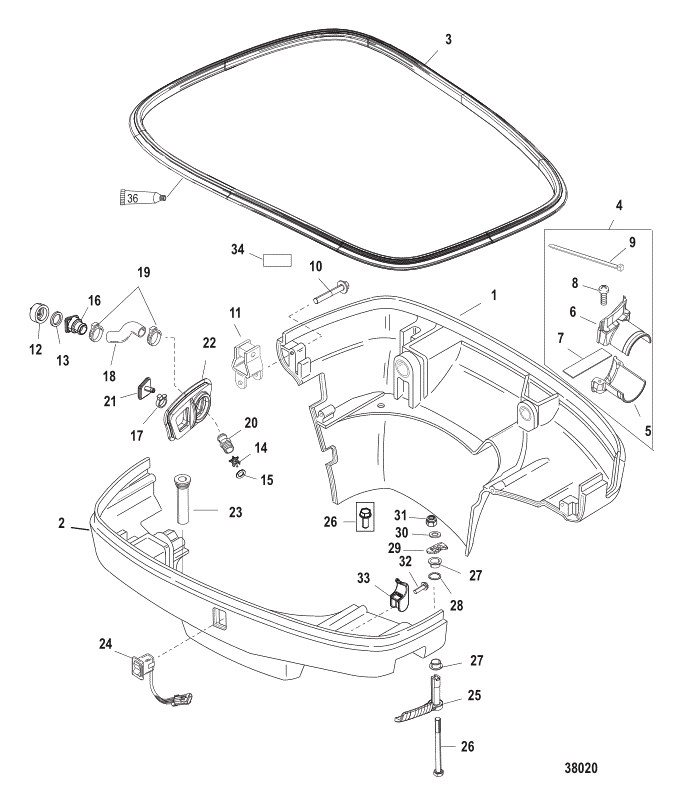

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0107321 | BOTTOM COWL (PORT) | 834814A1 | SS |
|
$859.57 | $743.61 | 1 | |
| 2 | 834815A1 | BOTTOM COWL (STARBOARD) | ACT |
|
$965.07 | $907.94 | 1 | ||
| 3 | 8M0109217 | ----SEAL Cowl (41.00 Inches) | 8253181 | SS |
|
$52.83 | $50.82 | 2 | |
| 4 | 875266A2 | RIGGING KIT | ACT |
|
$35.25 | $34.62 | 1 | ||
| 5 | 859435T | ----INSERT (BOTTOM) | 859435 | SS |
|
$18.75 | $18.42 | 1 | |
| 6 | 859434T | ----INSERT (TOP) | 859434 | SS |
|
$18.75 | $18.42 | 1 | |
| 7 | 859343 | ----FOAM | ACT | $6.00 | $5.86 | 1 | |||
| 8 | 92799 | ----SCREW (#10-16 x 1.12) | ACT | $1.80 | $1.76 | 2 | |||
| 9 | 816311T | ----TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 1 | |||
| 10 | 82130040 | SCREW (M6 x 40) | ACT | $7.90 | $7.71 | 4 | |||
| 11 | 831209 | RETAINER | ACT | $30.58 | $30.03 | 1 | |||
| 12 | 821908 | PLUG | ACT | $7.40 | $7.22 | 1 | |||
| 13 | 821915 | WASHER | ACT | $4.20 | $4.10 | 1 | |||
| 14 | 8219631 | CHECK VALVE | ACT | $18.25 | $17.92 | 1 | |||
| 15 | 30641 | O-RING (.299 x .103) | ACT | $3.20 | $3.13 | 1 | |||
| 16 | 821952 | FITTING | ACT | $15.70 | $15.31 | 1 | |||
| 17 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 1 | |||
| 18 | 8M0039077 | HOSE | 8320782 | SS |
|
$44.25 | $43.45 | 1 | |
| 19 | 850896 | CLAMP (28.6) | ACT | $3.00 | $2.93 | 2 | |||
| 20 | 8320763 | FITTING | ACT | $25.67 | $25.21 | 1 | |||
| 21 | 8M0077650 | FITTING Tell-Tale | 821904 | SS |
|
$17.42 | $17.11 | 1 | |
| 22 | 889847 | BOOT Idle Exhaust | ACT | $18.20 | $17.75 | 1 | |||
| 23 | 817519A1 | CHECK VALVE ASSEMBLY Drain | ACT | $16.40 | $16.00 | 2 | |||
| 24 | 8M0042300 | SWITCH Trim | 8569901 | SS |
|
$130.92 | $122.29 | 1 | |
| 25 | 889740A02 | FRONT HANDLE Black | 821253F1 | SS |
|
$65.92 | $63.40 | 1 | |
| 25 | 889740A02 | HANDLE KIT | ACT |
|
$65.92 | $63.40 | 1 | ||
| 26 | 1993716 | ----SCREW (M6 x 16) | ACT |
|
$3.00 | $2.93 | 1 | ||
| 26 | 824868 | ----SCREW (M6 x 75) | ACT |
|
$12.79 | $12.49 | 1 | ||
| 27 | 335891 | BUSHING | ACT | $13.50 | $13.17 | 2 | |||
| 28 | 48462 | O-RING (.614 x .070) | ACT | $1.80 | $1.76 | 1 | |||
| 29 | 8219423 | PAWL Front Handle | ACT | $42.08 | $41.33 | 1 | |||
| 30 | 69057 | WASHER (.281 x .734 x .063) | ACT | $1.80 | $1.76 | 1 | |||
| 31 | 401366 | NUT (M6) Stainless Steel | ACT |
|
$3.60 | $3.52 | 1 | ||
| 32 | 8214281 | SCREW (#10-16 x .625) | ACT | $1.80 | $1.76 | 1 | |||
| 33 | 822873 | CLIP | ACT | $7.90 | $7.71 | 1 | |||
| 34 | 88343312 | DECAL California Ultra Low Emissions | NLA |
|
$0.00 | $0.00 | 1 | ||
| 34 | 88343311 | DECAL California-Very Low Emission | NLA |
|
$0.00 | $0.00 | 1 |
