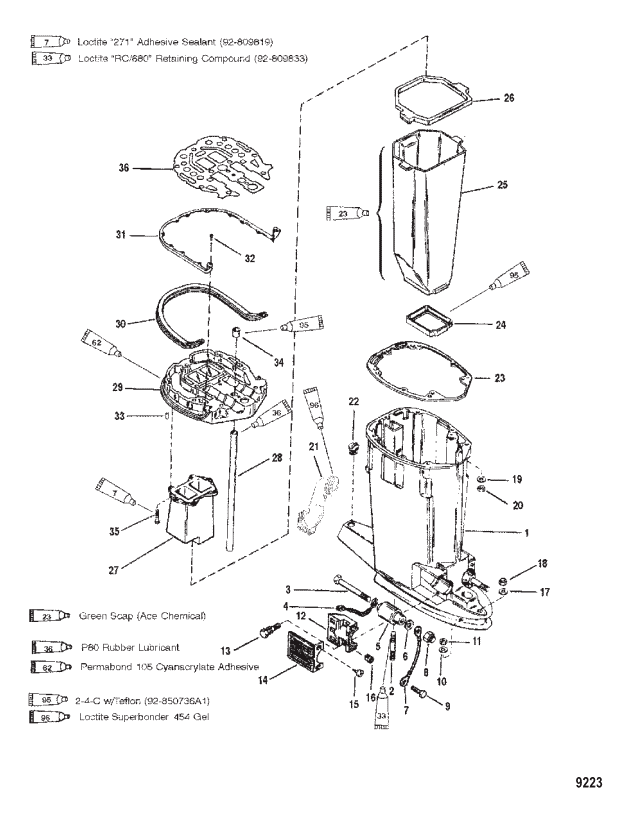

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8343T10 | HOUSING ASSEMBLY Driveshaft - Black - Long | ACT |
|
$1,185.99 | $1,061.93 | 1 | ||
| 1 | 813563T1 | HOUSING Driveshaft - Black - X-Long | ACT |
|
$855.71 | $779.30 | 1 | ||
| 2 | 56295 | ----STUD (.437 x 2.69) | ACT | $12.39 | $12.10 | 2 | |||
| 3 | 898831 | SCREW (.500-20 x 6.00) | 63474 | SS |
|
$22.49 | $22.02 | 2 | |
| 4 | 88238A10 | CABLE ASSEMBLY Ground | ACT | $8.29 | $8.10 | 1 | |||
| 5 | 77327 | MOUNT | ACT | $161.49 | $145.30 | 2 | |||
| 6 | 49339 | WASHER (.8125) | ACT | $1.90 | $1.86 | 2 | |||
| 7 | 88238A10 | CABLE ASSEMBLY Ground | ACT | $8.29 | $8.10 | 1 | |||
| 8 | 898832 | NUT (.500-20) | 82670817 | SS |
|
$3.69 | $3.59 | 2 | |
| 9 | 41508 | SCREW (.250-20 x .500) Stainless Steel | ACT | $3.79 | $3.69 | 1 | |||
| 10 | 45176 | WASHER (.453 x .812 x .10 | ACT | $1.50 | $1.47 | 2 | |||
| 11 | 8M0204653 | NUT (.437-20) Stainless S | 82671015 | SS |
|
$5.29 | $5.17 | 2 | |
| 12 | 8M0036782 | CLAMP | 67076 | SS |
|
$26.59 | $26.11 | 2 | |
| 13 | 66727 | SCREW (.312-18 x 1.250) | ACT | $2.99 | $2.92 | 4 | |||
| 14 | 8M4500752 | COVER Black | 67077T | SS |
|
$24.29 | $23.82 | 2 | |
| 15 | 88417 | SCREW (#12-24 x .620) | ACT | $1.80 | $1.76 | 4 | |||
| 16 | 35521 | NUT | ACT | $2.79 | $2.72 | 4 | |||
| 17 | 48926 | WASHER | ACT | $7.79 | $7.61 | 1 | |||
| 18 | 8M0204653 | NUT (.437-20) Stainless S | 82671015 | SS |
|
$5.29 | $5.17 | 1 | |
| 19 | 20553 | WASHER (.406 x .734 x .06 | ACT | $1.50 | $1.47 | 4 | |||
| 20 | 69254 | NUT | ACT | $7.29 | $7.12 | 4 | |||
| 21 | 8M0039081 | BOOT Idle Exhaust | 828212 | SS |
|
$32.99 | $32.41 | 1 | |
| 22 | 64649 | PLUG | ACT | $5.29 | $5.17 | 1 | |||
| 23 | 991734 | GASKET | ACT |
|
$20.09 | $19.72 | 1 | ||
| 24 | 66350001 | SEAL (LOWER) | 66350 | SS |
|
$12.69 | $12.39 | 1 | |
| 25 | 18276T | TUBE Exhaust | 18276 | SS |
|
$249.99 | $225.30 | 1 | |
| 26 | 8M0039076 | SEAL (UPPER) | 177261 | SS |
|
$43.49 | $42.72 | 1 | |
| 27 | 812834A2 | EXTENSION Exhaust | 8128341 | SS |
|
$262.99 | $236.72 | 1 | |
| 27 | 879288T71 | EXTENSION Exhaust | 419424 | SS |
|
$173.49 | $156.19 | 1 | |
| 28 | 8M0042788 | TUBE Water | 67295 | SS |
|
$49.99 | $49.06 | 1 | |
| 28 | 8M0042790 | TUBE | 74729 | SS |
|
$61.99 | $58.23 | 1 | |
| 29 | 18233A20 | PLATE ASSEMBLY Driveshaft Housing | 18233A8 | SS |
|
$721.49 | $656.95 | 1 | |
| 30 | 8M0043165 | ----SEAL | 8147012 | SS |
|
$46.49 | $45.50 | 1 | |
| 31 | 68011 | ----BRACKET | ACT | $9.99 | $9.76 | 1 | |||
| 32 | 878608 | ----SCREW (#10-16 x .500) | 812832 | SS |
|
$1.70 | $1.66 | 12 | |
| 33 | 43044 | ----PIN Dowel - Without Hole (.375 x .625) | ACT | $2.49 | $2.43 | 2 | |||
| 34 | 38970 | ----SEAL | ACT |
|
$5.09 | $4.98 | 1 | ||
| 35 | 90192 | ----SCREW (.250-20 x .750) Stainless Steel | ACT | $1.80 | $1.76 | 6 | |||
| 36 | 183076 | GASKET | ACT |
|
$25.29 | $24.80 | 1 | ||
| - | 8M0046714 | GASKET SET Engine | 814754A00 | SS |
|
$216.49 | $194.95 | 1 |
