Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

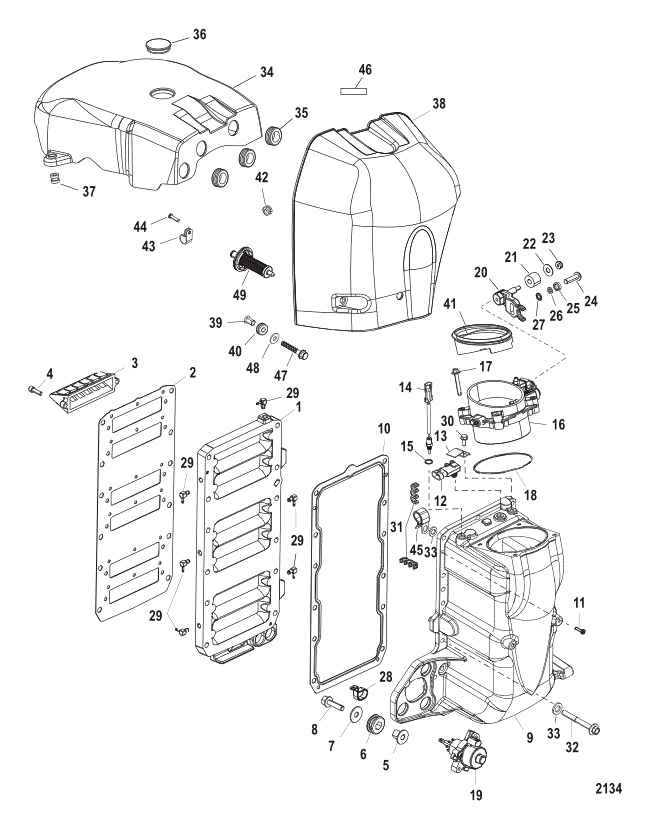

- 885594T05 AIR HANDLER ASSEMBLY 885594T03 SS $2,841.71 $2,605.06 1
1 858541T3 ----PLATE ACT $169.42 $159.54 1
2 804680 --------GASKET ACT $39.67 $38.95 1
3 828623T6 ----REED BLOCK ASSEMBLY ACT $191.67 $178.97 6
4 8555252 ----SCREW (M6) ACT $3.00 $2.93 12
5 855364 ----BUSHING ACT $6.00 $5.86 3
6 855362001 ----GROMMET 855362 SS $3.20 $3.13 3
6 855362001 ----GROMMET ACT $3.20 $3.13 3
7 817274 ----WASHER (.344 x 1.00 x .063) Stainless Steel ACT $1.40 $1.37 3
8 81893430 ----SCREW (M8 x 30) NLA $9.78 $9.54 3
9 858539T4 ----PLENUM KIT Air NLA $0.00 $0.00 1
9 858708T1 ----PLENUM KIT Air 858539T07 SS $178.33 $167.94 1
10 804679004 --------GASKET 8046793 SS $109.08 $102.73 1
10 804679004 --------GASKET ACT $109.08 $102.73 1
11 883942 ----SCREW (M4 x 16) ACT $3.60 $3.52 2
12 854445 ----SENSOR MAP ACT $129.50 $121.96 1
13 884522 ----BRACKET MAP Sensor ACT $13.60 $13.27 1
14 8M0148668 ----SENSOR ASSEMBLY 885342001 SS $47.25 $46.40 1
15 896699 --------O-RING (.351 x .072) 888814 SS $12.50 $12.19 1
16 883949T03 ----THROTTLE BODY KIT 883949T2 SS $366.83 $345.45 1
17 82130040 --------SCREW (M6 x 40) ACT $7.90 $7.71 4
18 855426 --------O-RING ACT $32.08 $31.51 1
19 8M0185614 ----PUMP ASSEMBLY Oil 857149T2 SS $627.79 $587.97 1
20 858851A03 ----LEVER ASSEMBLY Throttle ACT $38.08 $37.40 1
21 8M0072162 --------ROLLER 889610 SS $20.00 $19.64 1
22 8M0204666 --------WASHER (.203 x .500 x .03 56681 SS $1.80 $1.76 1
23 826709104 --------NUT (#8-32) Stainless Steel ACT $3.00 $2.93 1
24 889354 ----SCREW Special NLA $0.00 $0.00 1
25 8M0095734 ----WASHER Cupped 881991 REP $10.90 $10.63 1
26 8M0095734 ----WASHER Spool 881992 REP $10.90 $10.63 1
27 69432 ----LOCKWASHER External (#10) ACT $1.00 $0.98 1
28 804842 ----CLAMP NLA $0.00 $0.00 1
29 858870 ----CHECK VALVE ACT $46.50 $45.66 6
30 1993716 ----SCREW (M6 x 16) ACT $3.00 $2.93 1
31 859230T ----RETAINER 859230 SS $4.20 $4.10 2
32 82130040 SCREW (M6 x 40) ACT $7.90 $7.71 12
33 8M0204649 WASHER (.281 x .500 x .06 29245 SS $1.20 $1.18 2
34 880083T1 COVER ASSEMBLY ACT $139.17 $131.06 1
35 13467 ----GROMMET (.88 Inside Diameter) ACT $6.70 $6.54 3
36 89219001 ----PLUG 89219 SS/NLA $0.00 $0.00 1
36 89219001 ----PLUG NLA $0.00 $0.00 1
37 8M0153609 ----GROMMET 821555 SS $5.60 $5.47 2
37 8M0153609 ----GROMMET 821555001 SS $5.60 $5.47 2
38 881909T3 ATTENUATOR ASSEMBLY ACT $292.17 $275.14 1
39 856954 ----BUSHING ACT $7.00 $6.83 1
40 8M0190980 ----GROMMET 834985 SS $3.60 $3.52 1
41 882767 ----SEAL ACT $62.00 $59.64 1
42 20116 ----GROMMET ACT $4.80 $4.69 1
43 23567 ----CLIP ACT $5.80 $5.66 1
44 69570 ----SCREW (#10-16 x .750) ACT $1.80 $1.76 1
45 858902 CLAMP ACT $4.80 $4.69 1
46 881865 DECAL Caution-Start in Gear ACT $8.20 $8.00 1
47 82130025 SCREW (M6 x 25) ACT $4.10 $4.00 1
48 65567 WASHER (.265 x .750 x .04 ACT $2.90 $2.83 1
49 880084T01 FILTER ASSEMBLY 880084T SS $45.00 $44.14 1
- 832934A00 GASKET SET Powerhead ACT $186.24 $175.40 1
- 854198A07 POWERHEAD ASSEMBLY 854198A04 SS $11,421.45 $10,229.61 1
- 877869A07 POWERHEAD ASSEMBLY 877869A04 SS $11,178.55 $10,012.09 1
