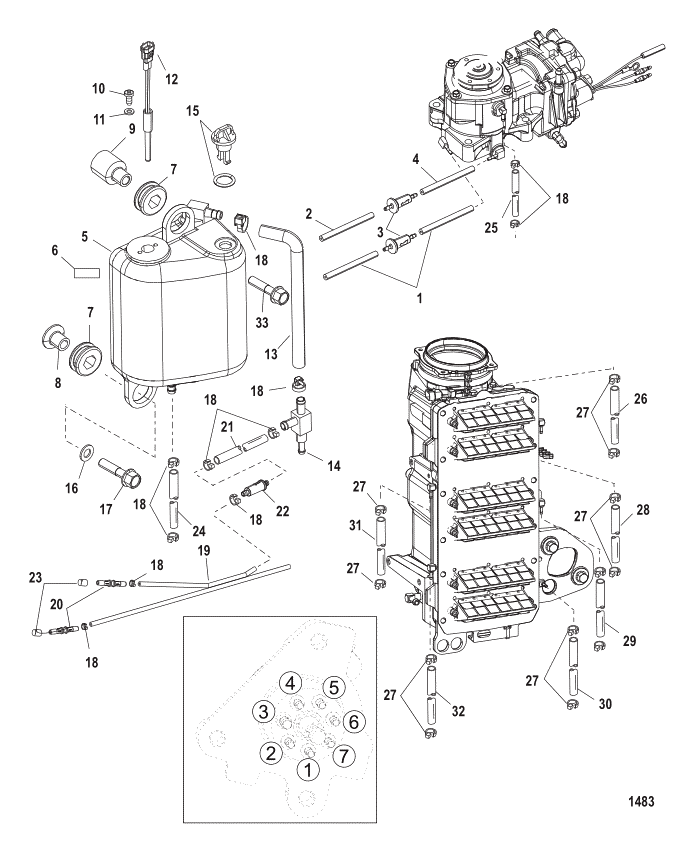

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0054152 | TUBING-38 INCH (Cut to 11.5 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 2 | |
| 2 | 8M0054152 | TUBING-38 INCH (Cut to 5 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 3 | 8M0207786 | FILTER-FUEL | 18206 | SS |
|
$19.19 | $18.73 | 2 | |
| 4 | 8M0054152 | TUBING-38 INCH (Cut to 9 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 5 | 8M0064075 | OIL TANK ASSY | 884525T1 | SS |
|
$383.49 | $360.91 | 1 | |
| 6 | NSS | --------NOT SOLD SEPARATE Decal-Reservoir |
|
$0.00 | $0.00 | 1 | |||
| 7 | 855362001 | ----GROMMET | 855362 | SS |
|
$3.19 | $3.11 | 3 | |
| 8 | 855364 | ----BUSHING | ACT | $5.99 | $5.86 | 2 | |||
| 9 | 883050 | ----SPACER | ACT | $16.79 | $16.39 | 1 | |||
| 10 | 58376 | ----SCREW | ACT | $1.23 | $1.21 | 1 | |||
| 11 | 72761 | ----WASHER | ACT | $1.60 | $1.57 | 1 | |||
| 12 | 856156T04 | ----SWITCH | 856156A4 | SS |
|
$27.29 | $26.76 | 1 | |
| 13 | 885553 | ----HOSE | ACT |
|
$33.29 | $32.65 | 1 | ||
| 14 | 8M0207780 | ----FITTING | 424254 | SS |
|
$55.99 | $53.79 | 1 | |
| 15 | 887609 | ----PLUG-VENT | ACT | $2.29 | $2.24 | 1 | |||
| 16 | 4002318 | WASHER | ACT | $2.99 | $2.92 | 3 | |||
| 17 | 81893435 | SCREW | ACT | $3.99 | $3.91 | 2 | |||
| 18 | 816311T | TIE STRAP | ACT | $0.60 | $0.59 | AR | |||
| 19 | 8752891 | HOSE | ACT |
|
$43.49 | $42.72 | 1 | ||
| 20 | 858955 | CONNECTOR | ACT | $3.69 | $3.59 | 2 | |||
| 21 | 875283 | HOSE-2 INCHES | ACT | $6.99 | $6.83 | 1 | |||
| 22 | 875284T01 | FILTER-IN LINE | 875284 | SS |
|
$6.79 | $6.64 | 1 | |
| 23 | NSS | NOT SOLD SEPARATE Plug |
|
$0.00 | $0.00 | 2 | |||
| 24 | 82381455 | TUBING-25 IN (Cut to 22 Inches) | ACT | $23.69 | $23.24 | 1 | |||
| 25 | 8M0054213 | ORD 32-855834 66 (Cut to 33 Inches) | 85583464 | REP |
|
$55.99 | $53.79 | 1 | |
| 26 | 8M0054152 | TUBING-38 INCH (Cut to 19.5 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 27 | 56762 | TIE STRAP | ACT | $0.50 | $0.49 | AR | |||
| 28 | 8M0054152 | TUBING-38 INCH (Cut to 11.5 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 29 | 8M0054152 | TUBING-38 INCH (Cut to 6 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 30 | 8M0054152 | TUBING-38 INCH (Cut to 4 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 31 | 8M0054152 | TUBING-38 INCH (Cu to 20.5 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 32 | 8M0054152 | TUBING-38 INCH (Cut to 15.5 Inches) | 85606065 | SS |
|
$37.49 | $36.79 | 1 | |
| 33 | 81893460 | SCREW | ACT | $5.39 | $5.27 | 1 |
