| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

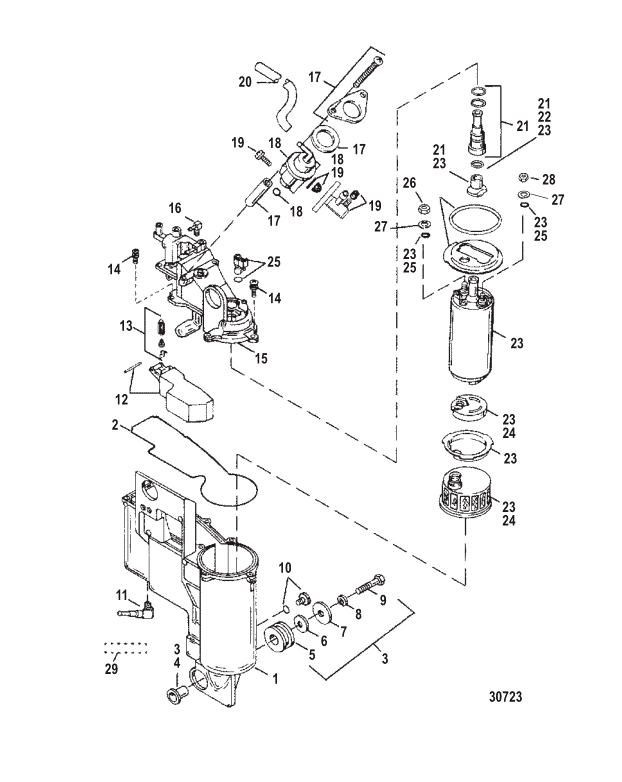

| - | 14817A31 | MANAGEMENT ASSEMBLY Fuel | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 8140111 | ----BODY KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 809086 | --------O-RING | ACT | $59.25 | $56.99 | 1 | |||
| 3 | 809092A1 | ----SCREW KIT Mounting | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 809078 | --------COLLAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 88033 | --------GROMMET | 809079 | SS/NLA |
|
$0.00 | $0.00 | 3 | |
| 6 | 8090622 | --------WASHER | NLA |
|
$0.00 | $0.00 | 3 | ||
| 7 | 8090621 | --------WASHER | ACT | $8.50 | $8.29 | 3 | |||
| 8 | 400256 | --------LOCKWASHER | 809080 | SS |
|
$1.80 | $1.76 | 3 | |
| 9 | 8090611 | --------SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 10 | 809091 | ----SCREW KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 424811 | ----VALVE | ACT | $79.67 | $76.82 | 1 | |||
| 12 | 15445 | ----FLOAT KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 15446 | ----VALVE KIT Float | ACT | $50.42 | $48.50 | 1 | |||
| 14 | 8140762 | ----SCREW KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 8140102 | ----COVER KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 8090851 | ----ELBOW KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 809087 | ----ATTACHING KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 8140122 | ----REGULATOR KIT Fuel Pressure | ACT | $378.67 | $356.60 | 1 | |||
| 19 | 814233A02 | ----SCHRADER VALVE KIT | 814233A1 | SS |
|
$869.57 | $818.10 | 1 | |
| 20 | 8276943 | ----TUBING KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 809089 | ----FITTING KIT Fuel Pump | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 15029 | ----O-RING AND SEAL KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 808505T01 | ----PUMP KIT Fuel | 809088T1 | REP |
|
$979.49 | $921.59 | 1 | |
| 24 | 808504T1 | --------STRAINER KIT | NLA |
|
$580.94 | $535.39 | 1 | ||
| 25 | 8090901 | ----CONNECTION KIT | ACT | $297.50 | $280.16 | 1 | |||
| 26 | 8237515 | NUT (M4) | ACT | $1.10 | $1.08 | 1 | |||
| 27 | 26995 | LOCKWASHER (#8) Stainless | ACT | $1.10 | $1.08 | 1 | |||
| 28 | 400211 | NUT (M5) Stainless Steel | ACT | $3.60 | $3.52 | 1 | |||
| 29 | 80466900 | DECAL EPA Label Information | NLA |
|
$0.00 | $0.00 | 1 |
