Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

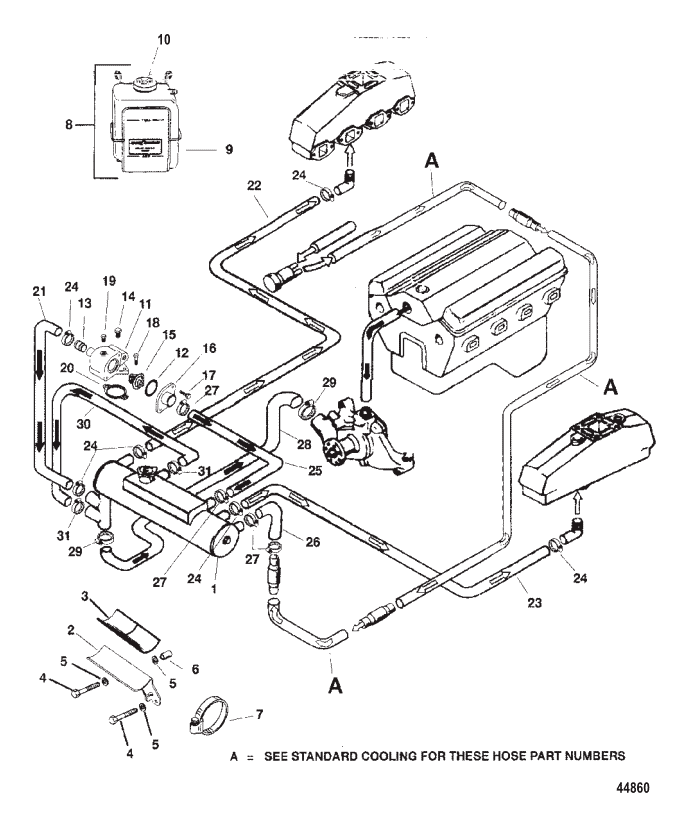

1 807400A1 HEAT EXCHANGER ACT $2,310.29 $2,117.89 1
NS 8M0036623 ----COVER Heat Exchanger End 814875 SS $104.75 $98.65 2
NS 8M0036987 ----GASKET End Cover 814876 SS $21.92 $21.54 2
NS 94247 ----BOLT 814877 REP $1.50 $1.47 2
NS 8M0039163 ----O-RING Special 814878 SS $8.80 $8.59 2
NS 8148791 ----CAP ACT $60.17 $57.87 1
2 860092A1 BRACKET ASSEMBLY Heat Exchanger ACT $77.25 $74.17 1
3 18431 ----PAD ACT $35.00 $34.37 2
4 91903 SCREW (.437-14 x 1.750) ACT $4.80 $4.69 1
4 47462 SCREW (.437-14 x 1.250) ACT $1.80 $1.76 1
5 31263 WASHER ACT $1.00 $0.98 4
6 74756 SPACER NLA $0.00 $0.00 1
7 815504388 CLAMP Worm Gear ACT $25.82 $25.37 2
8 71587A10 RECOVERY KIT Coolant ACT $97.25 $93.54 1
- 774572 ----HOSE (48.00 Inches Bulk) ACT $70.25 $67.57 1
9 71587A11 ----BOTTLE Plastic ACT $74.67 $71.82 1
10 72058 --------CAP ACT $11.30 $11.02 1
11 861188A1 HOUSING ASSEMBLY Thermostat 808064A1 SS $329.34 $310.14 1
12 8071341 ----SEAL 807134 SS $15.60 $15.22 1
13 52020 ----SLEEVE Hose NLA $0.00 $0.00 1
14 8M0180565 ----PLUG Pipe (.375-18) Brass 32803 SS $8.01 $7.81 1
15 991551 THERMOSTAT ACT $41.59 $40.83 1
16 807075A1 COVER ACT $230.08 $216.67 1
17 29198 SCREW AND LOCKWASHER (.31 ACT $4.60 $4.49 2
18 8M0113180 SCREW (.375-16 x 1.00) 98794 SS $5.10 $4.98 2
19 328022 PLUG Pipe (.125-27) 328021 SS $7.59 $7.42 1
20 530451 GASKET ACT $5.70 $5.56 1
21 807271 HOSE Thermostat by-pass ACT $73.25 $70.46 1
22 861306 HOSE Heat Exchanger To Exhaust Manifold 807139 SS $64.00 $61.56 1
23 807141 HOSE Heat Exhanger to Exhaust Manifold ACT $62.33 $59.96 1
24 815504220 CLAMP Worm Gear ACT $7.59 $7.42 6
25 807137 HOSE Thermostat Housing To Heat Exchanger ACT $49.58 $48.67 1
26 807406 HOSE Oil Cooler to Heat Exchanger ACT $38.17 $37.48 1
27 8M0188622 CLAMP Worm Gear (1.98 DIa 815504222 SS $5.70 $5.56 4
28 8M0158499 HOSE Water Pump to Heat Exchanger 805138 SS $58.25 $56.03 1
29 815504232 CLAMP Worm Gear (2.50 Diameter) ACT $8.90 $8.68 2
30 99520 HOSE Heat Exchanger to Heat Exchanger ACT $27.33 $26.84 1
31 815504212 CLAMP Worm Gear ACT $5.90 $5.76 2
- 805396A95 GASKET SET NLA $0.00 $0.00 1
- 805396A92 GASKET SET Overhaul NLA $0.00 $0.00 1
