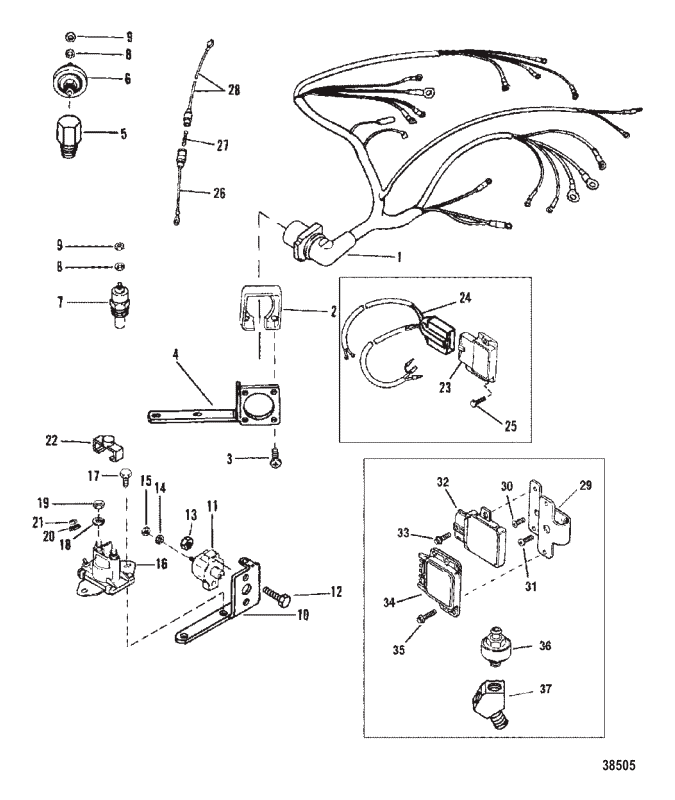

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806966A2 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 806217A9 | HARNESS ASSEMBLY | 805369A6 | SS |
|
$371.43 | $355.04 | 1 | |
| 1 | 806217A9 | HARNESS ASSEMBLY | 805369A7 | SS |
|
$371.43 | $355.04 | 1 | |
| 1 | 806217A9 | HARNESS ASSEMBLY | ACT |
|
$371.43 | $355.04 | 1 | ||
| 2 | 26079A2 | PLATE KIT Wire Harness Mount | ACT |
|
$16.92 | $16.62 | 1 | ||
| 3 | 15001 | ----SCREW (#8-16 x .875) | ACT | $1.60 | $1.57 | 4 | |||
| 4 | 805383T | BRACKET Harness Mounting | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 8053281 | FITTING Elbow (90 Degree - .125) | ACT | $18.10 | $17.65 | 1 | |||
| 6 | 8M0068784 | SENDER ASSEMBLY Oil Pressure | 815425 | SS |
|
$91.99 | $88.60 | 1 | |
| 6 | 37293T | SENDER ASSEMBLY Oil Pressure (DUAL) | 37293 | SS |
|
$205.66 | $193.68 | OPT. | |
| 7 | 806490T | SENDER ASSEMBLY Water Temperature | 97257A1 | SS |
|
$40.99 | $40.18 | 1 | |
| 7 | 49734 | SENDER ASSEMBLY Water Temperature (DUAL) | 49734A1 | SS |
|
$90.42 | $86.97 | OPT. | |
| 8 | 26996 | ----LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 2 | |||
| 9 | 68219 | ----NUT (#10-32) Stainless St | ACT | $3.00 | $2.93 | 2 | |||
| 10 | 899719T01 | BRACKET Electrical | 805368T | SS |
|
$44.58 | $43.78 | 1 | |
| 11 | 11178A01 | BREAKER Circuit - 50 Ampere | 11178 | SS |
|
$121.49 | $113.00 | 1 | |
| 12 | 45862 | SCREW (#10-32 x .875) | ACT |
|
$1.40 | $1.37 | 2 | ||
| 13 | 61356 | NUT (#10-32) Reduced Hex | ACT |
|
$3.30 | $3.22 | 2 | ||
| 14 | 26996 | LOCKWASHER (#10) Stainles | ACT |
|
$1.20 | $1.18 | 2 | ||
| 15 | 68219 | NUT (#10-32) Stainless St | ACT |
|
$3.00 | $2.93 | 2 | ||
| 11 | 11178A01 | BREAKER Circuit - 50 Ampere | 806950 | REP |
|
$121.49 | $113.00 | 1 | |
| 12 | 57583T | SCREW (#8-32 x .375) | 57583 | SS |
|
$1.40 | $1.37 | 2 | |
| 16 | 8M0185622 | SOLENOID Starter | 96158 | SS |
|
$39.99 | $39.43 | 1 | |
| 17 | 805564 | SCREW (.250-20 x .750) | ACT | $1.70 | $1.66 | 3 | |||
| 18 | 26992 | LOCKWASHER (.250) Stainle | ACT | $1.20 | $1.18 | 2 | |||
| 19 | 94330 | NUT (.250-20) Brass | ACT | $1.70 | $1.66 | 2 | |||
| 20 | 26996 | LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 2 | |||
| 21 | 68219 | NUT (#10-32) Stainless St | ACT | $3.00 | $2.93 | 2 | |||
| 22 | 97861 | INSULATOR | ACT | $5.20 | $5.08 | 1 | |||
| 23 | 15899T02 | MODULE Ignition | 805361T3 | NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 15899T02 | MODULE Ignition | 805361T4 | NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 821125T02 | IGNITION MODULE | 805361T6 | NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 15899T02 | MODULE Ignition | 805361T4 | NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 821125T02 | IGNITION MODULE | 805361T6 | NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 15899T02 | MODULE Ignition | 805361T4 | NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 821125T02 | IGNITION MODULE | 805361T6 | NLA |
|
$0.00 | $0.00 | 1 | |
| 24 | 805363A1 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 805363A2 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 12110 | SCREW (#6-32 x .750) | ACT |
|
$1.80 | $1.76 | 2 | ||
| 26 | 95084A9 | CABLE ASSEMBLY (91.00 Inches) Red/Purple Strip | ACT |
|
$30.50 | $29.95 | 1 | ||
| 27 | 8M0207796 | FUSE 20 Ampere | 79091 | SS |
|
$8.20 | $8.00 | 1 | |
| 28 | 95084A10 | CABLE ASSEMBLY (5.00 Inches) Red | ACT |
|
$9.50 | $9.27 | 1 | ||
| 29 | 807763T | BRACKET | 806735T | SS |
|
$12.40 | $12.10 | 1 | |
| 30 | 806834 | SCREW (FLATHEAD) | NLA |
|
$1.24 | $1.21 | 1 | ||
| 31 | 861520 | SCREW (10-32 x .50) | 806835 | REP |
|
$0.70 | $0.69 | 1 | |
| 32 | 806956A01 | MODULE Ignition | 806956T2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 32 | 807264A01 | MODULE Ignition | 806957T2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 33 | 806826 | SCREW (#8-32 x .250) | ACT |
|
$1.80 | $1.76 | 2 | ||
| 34 | 8M0154747 | MODULE Knock Control | 806611T | REP |
|
$396.71 | $379.20 | 1 | |
| 35 | 806827 | SCREW (#8-32 x .380) | ACT |
|
$2.50 | $2.44 | 2 | ||
| 36 | 806612T | SENSOR Knock | ACT |
|
$198.00 | $186.46 | 1 | ||
| 37 | 806705 | Y-FITTING | NLA |
|
$0.00 | $0.00 | 1 |
