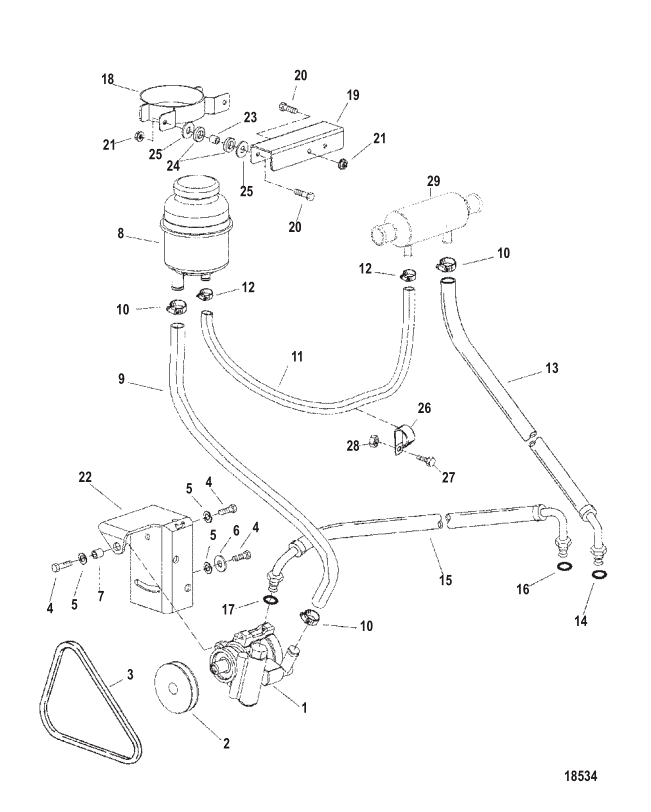

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 18825A10 | PUMP ASSY-P/S | 18825A2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 801763349 | 00001763349 PULLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 816177Q | BELT | 816177 | SS |
|
$19.49 | $19.15 | 1 | |
| 4 | 809913657 | SCREW | NLA |
|
$0.00 | $0.00 | 3 | ||
| 5 | 400247 | LOCKWASHER | ACT | $1.80 | $1.76 | 3 | |||
| 6 | 4002318 | WASHER | ACT | $2.99 | $2.92 | 1 | |||
| 7 | 12009 | BUSHING | ACT | $2.89 | $2.82 | 1 | |||
| 8 | 8M0239407 | 32411124680 CARRI Power Steering Oil Reservoir | 801124680 |
|
$59.49 | $57.23 | 1 | ||
| 9 | 816689260 | HOSE Power Steering Pump to Reservoir | 883971 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 10 | 815504210 | 11531326638 CLAMP | 801326638 | SS |
|
$4.19 | $4.10 | 3 | |
| 11 | 8M0130411 | HOSE Reservoir to Cooler | 883967 | SS |
|
$44.99 | $44.20 | 1 | |
| 12 | 815504104 | 07129952104 CLAMP | 809952104 | SS |
|
$6.79 | $6.64 | 2 | |
| 13 | 865390068 | HOSE-HYDRAULIC Cooler to Steering Cylinder | ACT |
|
$90.99 | $87.13 | 1 | ||
| 14 | 89879 | ----O RING | ACT | $1.60 | $1.57 | 1 | |||
| 15 | 866690 | HOSE-P/S Power Steering Pump to Steering Cylinder | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 89879 | ----O RING | ACT | $1.60 | $1.57 | 1 | |||
| 17 | 806232 | ----O RING | ACT | $1.80 | $1.76 | 1 | |||
| 18 | 8553871 | CLAMP-P/S TANK Oil Tank | ACT | $35.49 | $34.70 | 1 | |||
| 19 | 855388 | BRACKET-P/S TANK Oil Tank Support | ACT | $16.59 | $16.19 | 1 | |||
| 20 | 898101555 | SCREW | 854118 | SS |
|
$3.19 | $3.11 | 3 | |
| 21 | 854037 | NUT | ACT | $3.19 | $3.11 | 3 | |||
| 22 | 816340 | BRACKET Power Steering Pump | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 854021 | SPACER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 24 | 854020 | GROMMET Rubber | NLA |
|
$0.00 | $0.00 | 4 | ||
| 25 | 811455 | WASHER | NLA |
|
$0.00 | $0.00 | 4 | ||
| 26 | 803627 | CLIP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 855511 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 898101541 | NUT | 854032 | SS |
|
$0.60 | $0.59 | 1 | |
| 29 | 8M0181740 | OIL COOLER | 99356A2 | SS |
|
$565.99 | $532.16 | 1 |
