| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

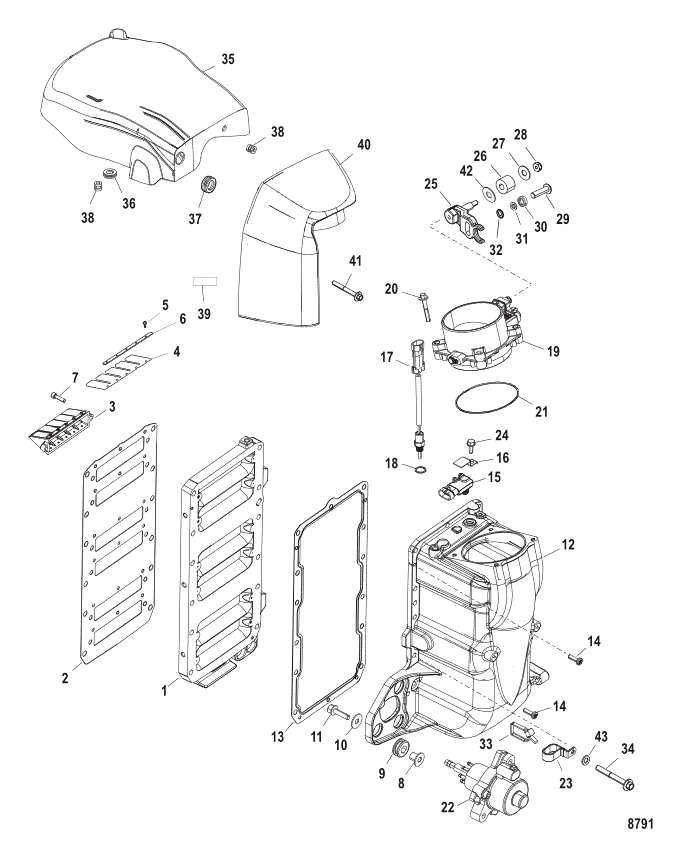

| - | 878112T07 | AIR HANDLER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 858541T4 | ----ADAPTOR PLATE KIT | ACT |
|
$262.49 | $247.20 | 1 | ||
| 2 | 841220 | --------GASKET | ACT |
|
$124.99 | $117.72 | 1 | ||
| 3 | 840418T04 | ----REED BLOCK | 840418T2 | SS |
|
$557.99 | $524.90 | 6 | |
| 4 | 840445A04 | --------REED PETAL KIT | 840445A3 | SS |
|
$841.49 | $791.49 | 1 | |
| 5 | 849038 | ------------SCREW | ACT | $1.50 | $1.47 | 60 | |||
| 6 | 840447 | --------REED PLATE | ACT | $39.99 | $39.26 | 12 | |||
| 7 | 8555252 | ----SCREW | ACT | $2.99 | $2.92 | 12 | |||
| 8 | 855364 | ----BUSHING | ACT | $5.99 | $5.86 | 3 | |||
| 9 | 855362001 | ----GROMMET | ACT | $3.19 | $3.11 | 3 | |||
| 10 | 817274 | ----WASHER | ACT | $1.40 | $1.37 | 3 | |||
| 11 | 81893430 | ----SCREW | NLA |
|
$9.78 | $9.54 | 3 | ||
| 12 | 858708T1 | ----PLENUM KIT-AIR | 858539T07 | SS |
|
$178.49 | $167.94 | 1 | |
| 13 | 804679004 | --------GASKET | ACT | $109.49 | $102.73 | 1 | |||
| 14 | 883942 | ----SCREW | ACT | $3.59 | $3.50 | 2 | |||
| 15 | 854445 | ----SENSOR (MAP) | ACT | $129.49 | $121.96 | 1 | |||
| 16 | 884522 | ----BRACKET | ACT | $13.59 | $13.27 | 1 | |||
| 17 | 8M0148668 | ----SENSOR ASSY-TEMP | 885342001 | SS |
|
$47.49 | $46.67 | 1 | |
| 18 | 896699 | --------O-RING | 888814 | SS |
|
$12.49 | $12.19 | 1 | |
| 19 | 841194T04 | ----ORD 841194T04 | 841194T2 | REP |
|
$435.89 | $416.52 | 1 | |
| 20 | 82130040 | --------SCREW | ACT | $7.89 | $7.71 | 4 | |||
| 21 | 855426 | --------O RING | ACT | $32.09 | $31.51 | 1 | |||
| 22 | 8M0185614 | ----PUMP ASSY-OIL | 857149T2 | SS |
|
$642.99 | $604.74 | 1 | |
| 23 | 804842 | ----CLAMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 1993716 | ----SCREW | ACT |
|
$2.99 | $2.92 | 1 | ||
| 25 | 858851A03 | --------LEVER ASSY | ACT | $38.49 | $37.62 | 1 | |||
| 26 | 8M0072162 | --------ROLLER | 889610 | SS |
|
$19.99 | $19.64 | 1 | |
| 27 | 8M0204666 | --------WASHER | 56681 | SS |
|
$1.80 | $1.76 | 1 | |
| 28 | 826709104 | --------NUT | ACT | $2.99 | $2.92 | 1 | |||
| 29 | 889354 | ----SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 8M0095734 | ----ORD 8M0095734 | 881991 | REP |
|
$10.89 | $10.63 | 1 | |
| 31 | 8M0095734 | ----ORD 8M0095734 | 881992 | REP |
|
$10.89 | $10.63 | 1 | |
| 32 | 69432 | ----LOCKWASHER | ACT | $1.00 | $0.98 | 1 | |||
| 33 | 816311T | ----TIE STRAP | ACT | $0.60 | $0.59 | 1 | |||
| 34 | 82130040 | SCREW | ACT | $7.89 | $7.71 | 11 | |||
| 35 | 8M0111168 | COVER ASY-F WHEEL | 850296A5 | SS |
|
$386.49 | $369.17 | 1 | |
| 36 | 86361 | ----GROMMET | ACT | $9.89 | $9.66 | 1 | |||
| 37 | 13467 | ----GROMMET | ACT | $6.69 | $6.54 | 1 | |||
| 38 | 8M0153609 | GROMMET | 821555001 | SS |
|
$5.59 | $5.47 | 2 | |
| 39 | 881865 | DECAL-CAUTION | ACT |
|
$8.19 | $8.00 | 1 | ||
| 40 | 854343T11 | AIR ATTENUATOR | ACT | $242.99 | $228.52 | 1 | |||
| 41 | 82130045 | SCREW | ACT | $5.19 | $5.08 | 1 | |||
| 42 | 69056 | WASHER | ACT | $1.80 | $1.76 | 1 | |||
| 43 | 8M0204649 | WASHER | 29245 | SS |
|
$1.20 | $1.18 | 1 | |
| - | 841220A03 | GASKET SET | 832933A05 | SS |
|
$336.99 | $317.04 | 1 |
