| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

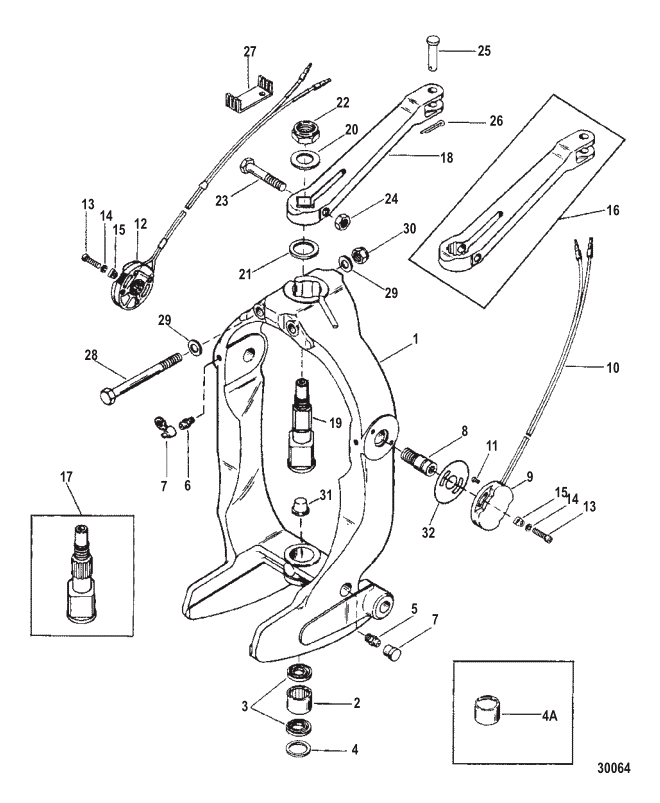

| - | 94993A12 | GIMBAL RING KIT With Upper Swivel Shaft (use with square steering arm) | ACT | $1,245.49 | $1,115.35 | 1 | |||
| - | 88302A1 | GIMBAL RING KIT With Upper Swivel Shaft (use with spline steering arm) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 94993A7 | GIMBAL RING ASSEMBLY (BLACK) | ACT |
|
$1,053.49 | $943.38 | 1 | ||
| 2 | 32538 | ----BEARING GIMBAL RING (OLD DESIGN) | ACT | $9.98 | $9.74 | 1 | |||
| 3 | 32541 | ----SEAL Oil GIMBAL RING (OLD DESIGN) | ACT | $18.99 | $18.58 | 2 | |||
| 4 | 39273 | ----SPACER GIMBAL RING (OLD DESIGN) | ACT | $18.99 | $18.53 | 1 | |||
| 4A | 847638 | ----BEARING GIMBAL RING (NYLON) (NEW DESIGN) | 99352 | SS |
|
$57.49 | $54.15 | 1 | |
| 5 | 69059 | ----FITTING GIMBAL RING (1/8-27) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 8M0169589 | ----FITTING Grease GIMAB RING (1/4-28) | 74036 | SS |
|
$4.79 | $4.69 | 2 | |
| 7 | 77633Q | ----LUBRICAP GIMBAL RING GREASE FITTING | ACT | $6.99 | $6.83 | 3 | |||
| 8 | 77123 | PIN Hinge THREADED (WITH GREASE GROOVE) | ACT | $32.39 | $31.75 | 2 | |||
| 9 | 64947 | SENDER DUMMY (STARBOARD) (BLACK) | ACT | $22.99 | $22.51 | 1 | |||
| 10 | 19216 | HARNESS ASSEMBLY DUMMY SENDER (STARBOARD) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 46942 | SCREW (#6-20 x .3125) HARNESS ATTACHING (STARBOARD) | ACT | $1.10 | $1.08 | 2 | |||
| 12 | 805320A03 | SWITCH ASSEMBLY TRIM LIMIT - PORT (BLACK) | 99122A2 | REP |
|
$176.99 | $159.19 | 1 | |
| 13 | 37978 | SCREW (#10-32 x .750) Sta SWITCH AND SENDER TO GIMBAL RING | ACT | $3.39 | $3.30 | 4 | |||
| 14 | 26996 | LOCKWASHER (#10) Stainles SWITCH AND SENDER SCREW | ACT | $1.20 | $1.18 | 4 | |||
| 15 | 57008 | RETAINER SWITCH AND SENDER SCREW | ACT | $3.99 | $3.91 | 4 | |||
| 16 | 94991A1 | LEVER ASSEMBLY Steering (SQUARE/SPLINED SWIVEL SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 88302A2 | SHAFT UPPER SWITCH (SQUARE/SPLINED SWIVEL SHAFT) | NLA |
|
$399.30 | $376.03 | 1 | ||
| 18 | 866322A01 | LEVER ASSEMBLY (SQUARE SWIVEL SHAFT) | 98262A1 | SS |
|
$313.99 | $283.00 | 1 | |
| 19 | 98230A1 | SHAFT ASSEMBLY UPPER SWIVEL (SQUARE SWIVEL SHAFT) | ACT | $371.49 | $343.79 | 1 | |||
| 20 | 85344 | WASHER (.750 Inside Diameter) | ACT | $2.79 | $2.72 | 1 | |||
| 21 | 32997 | WASHER (SPLINED SWIVEL SHAFT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 98548 | WASHER (1.125 ) (SQUARE SWIVEL SHAFT) | ACT | $6.99 | $6.83 | 1 | |||
| 22 | 8M2014641 | NUT (.750-16) UPPER SWIVEL SHAFT | 82671323 | SS |
|
$17.89 | $17.46 | 1 | |
| 23 | 807204 | SCREW (.437-20 x 2.00) STEERING LEVER TO UPPER SWIVEL SHAFT | ACT | $4.49 | $4.39 | 1 | |||
| 24 | 8M2008293 | NUT (.437-20) STEERING LEVER TO UPPER SWIVEL SHAFT SCREW | 98533 | SS |
|
$1.20 | $1.18 | 1 | |
| 25 | 52798 | PIN Clevis CABLE TO STEERING LEVER (NON POWER STEERING) | ACT | $7.49 | $7.32 | 1 | |||
| 26 | 46950 | COTTER PIN (NON POWER STEERING) | ACT | $4.19 | $4.10 | 1 | |||
| 27 | 79146 | RETAINER CONNECTOR, TRIM LIMIT LEADS | ACT | $5.59 | $5.47 | 2 | |||
| 28 | 88432 | SCREW (.375-24 x 4.00) GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10 | ACT | $99.99 | $93.78 | 2 | |||
| 28 | 90126 | SCREW (.375-24 x 3.750) GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10 | ACT | $6.79 | $6.64 | 2 | |||
| 29 | 34931 | WASHER (.406 x .734 x .063) Stainless Steel GIMBAL RING SCREW | ACT | $2.59 | $2.53 | 4 | |||
| 30 | 862903 | NUT (.375-24) GIMBAL RING SCREW | ACT | $3.59 | $3.50 | 2 | |||
| 31 | 90887 | PLUG UPPER SWIVEL SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 63990 | INSULATOR TRIM LIMIT SWITCH | ACT | $8.19 | $8.00 | 1 | |||
| - | 805320A03 | SWITCH ASSEMBLY (BLACK) | 805320A1 | SS |
|
$176.99 | $159.19 | AR | |
| - | 805130A6 | SENDER KIT Dual Station (BLACK) | ACT | $120.73 | $108.86 | AR |
