Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

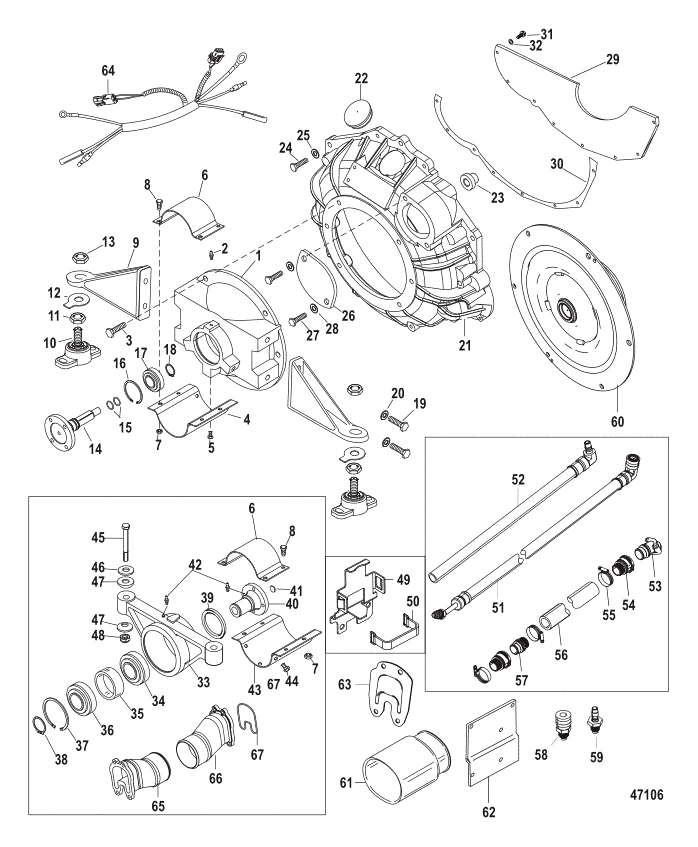

- 98634A20 EXTENSION KIT Jackshaft Kit ACT $6,233.36 $5,714.25 1
1 93911A4 ----HOUSING ASSEMBLY Shaft Extension Support ACT $905.86 $852.24 1
2 8M0169589 --------FITTING Grease 74036 SS $4.80 $4.69 1
2 8M0204738 ----PLUG (.250-28 x .320) 8M2015913 SS $6.90 $6.73 1
3 47651 ----SCREW (.437-14 x 1.50) ACT $2.39 $2.33 6
4 93918A1 ----SHIELD Lower ACT $260.92 $245.71 1
5 96995 ----SCREW (.375-16 x .880) ACT $1.70 $1.66 3
6 93919A1 ----SHIELD Upper ACT $325.42 $306.45 2
7 82670912 ----NUT (.375-16) Stainless S ACT $6.80 $6.64 8
8 96995 ----SCREW (.375-16 x .880) ACT $1.70 $1.66 8
9 93923A1 ----MOUNT ASSEMBLY Flywheel Housing ACT $157.58 $148.40 2
10 814263A1 ----BASE ASSEMBLY Mount Assembly ACT $129.82 $122.27 2
11 816331 --------NUT (.750-16) Jam ACT $7.59 $7.42 2
12 12657 --------TAB WASHER ACT $4.70 $4.59 2
13 859126 --------NUT (.750-16) ACT $17.42 $17.11 2
14 93906A2 ----SHAFT Output ACT $912.64 $858.62 1
15 8M0204650 ----O-RING (.924 x .103) 29845 SS $2.90 $2.83 2
16 94104 ----RING Retaining ACT $10.80 $10.54 1
17 879194A03 ----GIMBAL BEARING KIT ACT $167.42 $157.66 1
18 841897T ----RING Retaining ACT $19.70 $19.21 1
19 47651 ----SCREW (.437-14 x 1.50) ACT $2.39 $2.33 4
20 32993 ----LOCKWASHER (.437) ACT $1.70 $1.66 4
21 814309A1 ----HOUSING ASSEMBLY ACT $533.71 $502.12 1
22 12304 --------PLUG Timing Window ACT $16.67 $16.37 1
23 49126 ----BUSHING Pilot ACT $59.67 $57.39 1
23 863864 ----BEARING Pilot ACT $46.08 $45.25 1
24 68101 ----SCREW (.375-16 x 1.375) ACT $2.60 $2.54 1
24 34353 ----SCREW (.375-16 x 1.00) ACT $2.60 $2.54 1
24 47688 ----SCREW (.375-16 x 2.750) ACT $3.60 $3.52 2
25 35048 ----LOCKWASHER (.375) ACT $1.20 $1.18 4
26 939201 ----PLATE Cover ACT $53.58 $51.54 1
27 92913 ----SCREW (.437-14 x .750) ACT $15.50 $15.12 2
28 32993 ----LOCKWASHER (.437) ACT $1.70 $1.66 2
29 818718A3 ----COVER KIT Flywheel Inspection ACT $71.00 $68.29 1
30 86015 ----GASKET Flywheel Inspection Cover ACT $11.50 $11.22 1
31 98253 ----SCREW (.250-20 x .500) ACT $1.10 $1.08 7
32 26992 ----LOCKWASHER (.250) Stainle ACT $1.20 $1.18 7
33 817416A4 ----HOUSING ASSEMBLY Bearing ACT $1,384.64 $1,269.33 1
34 93944A2 --------BEARING SET Ball ACT $138.17 $130.12 1
35 817417T --------SPACER ACT $265.67 $250.18 1
36 93944A2 --------BEARING SET Ball ACT $138.17 $130.12 1
37 93914 --------RING Retaining ACT $95.67 $92.02 1
38 93915 --------RING Retaining ACT $56.58 $54.43 1
39 93924 --------SEAL Oil ACT $29.33 $28.81 1
40 NSS ----------------NOT SOLD SEPARATE Input Shaft $0.00 $0.00 1
41 93921 --------EXPANSION PLUG ACT $34.25 $33.64 1
42 8M0169589 --------FITTING Grease 74036 SS $4.80 $4.69 2
43 93918A1 --------SHIELD Lower ACT $260.92 $245.71 1
44 76926 --------SCREW (.375-16 x .875) ACT $1.10 $1.08 3
45 57053 ----SCREW (.500-20 x 4.500) ACT $5.50 $5.37 2
46 35777 ----WASHER (.5156 x 1.375 x . ACT $2.60 $2.54 2
47 42307 ----WASHER Spherical ACT $19.80 $19.31 4
48 898832 ----NUT (.500-20) ACT $3.70 $3.61 2
49 860065A1 ----BRACKET KIT ACT $37.17 $36.50 1
50 808023T ----STRAP ACT $19.39 $18.92 1
51 8M0063022 ----HOSE Female Quick Connect (Fittings on Both Ends) ACT $291.83 $274.82 1
52 865390134 ----HOSE Male Quick Connect (Fittings on One End) ACT $179.42 $168.96 1
53 865470 ----HOUSING Inlet ACT $20.70 $20.19 1
54 865324 ----QUICK CONNECT ACT $11.79 $11.51 2
55 8M0188622 ----CLAMP Worm Gear (1.98 DIa 815504222 SS $5.70 $5.56 3
56 8M0062666 ----HOSE (96.00 Inches Bulk) ACT $220.82 $207.96 1
57 865362 ----QUICK CONNECT ACT $9.70 $9.46 1
58 865415 ----FITTING PS Return ACT $33.99 $33.34 1
59 865414001 ----FITTING PS Pressure ACT $10.99 $10.73 1
60 8M0098797 ----COUPLER ASSEMBLY Engine - Short Steel Hub ACT $1,455.93 $1,334.68 1
61 78458A1 ----TUBE ACT $85.67 $82.40 1
62 41063A1 ----BRACKET ASSEMBLY ACT $37.67 $36.99 1
63 861776A2 ----PLATE KIT ACT $116.67 $109.87 1
64 41575A11 ----HARNESS ASSEMBLY ACT $171.50 $161.51 1
65 862268T1 ----TUBE ACT $277.24 $261.09 1
66 862268T2 ----TUBE ACT $287.67 $270.90 1
67 41802 ----SEAL Rubber ACT $15.99 $15.61 1
