| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

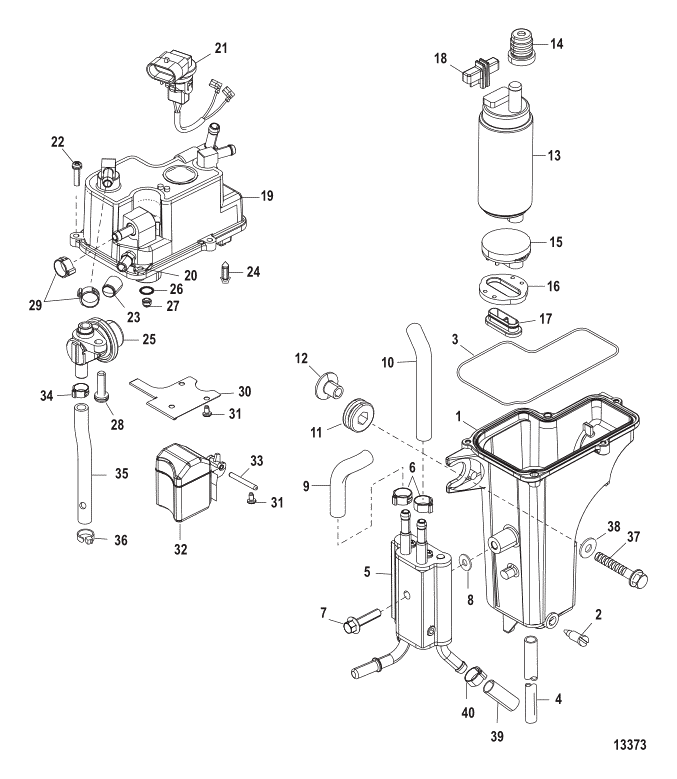

| - | 892267T03 | VAPOR SEPARATOR | 892267T02 | SS |
|
$1,151.99 | $1,056.00 | 1 | |
| 1 | 892267A54 | ----BODY ASSEMBLY | ACT |
|
$351.99 | $331.33 | 1 | ||
| 2 | 892267506 | --------SCREW-DRAIN | ACT | $18.19 | $17.75 | 1 | |||
| 3 | 892267530 | --------O RING | ACT | $17.79 | $17.36 | 1 | |||
| 4 | 8M0054213 | ----HOSE-40 INCH (Cut to 9 Inches) | 85583466 | SS |
|
$55.99 | $53.79 | 1 | |
| 5 | 892267A55 | ----FUEL COOLER | ACT |
|
$539.49 | $507.16 | 1 | ||
| 6 | 888988023 | --------CLAMP | ACT | $7.39 | $7.22 | 2 | |||
| 7 | 82130025 | ----SCREW | ACT | $4.09 | $4.00 | 1 | |||
| 8 | 892267511 | ----WASHER | ACT | $6.09 | $5.95 | 1 | |||
| 9 | 892267504 | ----HOSE | ACT | $89.99 | $86.33 | 1 | |||
| 10 | 892267503 | ----HOSE | ACT | $90.99 | $87.45 | 1 | |||
| 11 | 8M0190980 | ----GROMMET | 834985 | SS |
|
$3.89 | $3.79 | 3 | |
| 12 | 856954 | ----BUSHING | ACT | $6.99 | $6.83 | 3 | |||
| 13 | 892267A51 | ----FUEL PUMP KIT (Also includes cover to body o-ring 25-892267530) | ACT |
|
$635.49 | $634.99 | 1 | ||
| 14 | 892267521 | --------INSULATOR | ACT | $42.49 | $41.74 | 1 | |||
| 15 | 892267510 | --------ISOLATOR | ACT | $34.99 | $34.29 | 1 | |||
| 16 | 892267523 | --------INSULATOR | ACT | $22.39 | $21.93 | 1 | |||
| 17 | 892267534 | --------FUEL STRAINER | ACT | $26.99 | $26.52 | 1 | |||
| 18 | 892267519 | ----COVER | ACT | $15.39 | $15.02 | 1 | |||
| 19 | 892267T57 | ----COVER ASSY | ACT |
|
$498.49 | $476.29 | 1 | ||
| 20 | 892267T57 | --------ORD 892267T57 | 892267537 | REP |
|
$498.49 | $476.29 | 1 | |
| 21 | 892267535 | ----CONNECTOR | ACT | $98.99 | $94.98 | 1 | |||
| 22 | 892267531 | ----SCREW | ACT | $6.39 | $6.25 | 5 | |||
| 23 | 883220 | ----CAP | ACT | $2.99 | $2.92 | 1 | |||
| 24 | 892267A52 | ----FLOAT VALVE KIT | ACT | $25.29 | $24.80 | 1 | |||
| 25 | 892267A50 | ----REGULATOR KIT | ACT |
|
$249.99 | $235.43 | 1 | ||
| 26 | 892267513 | --------O RING | ACT | $7.89 | $7.71 | 1 | |||
| 27 | 892267512 | --------SCREEN | ACT | $8.39 | $8.20 | 1 | |||
| 28 | 892267515 | --------SCREW | ACT | $6.79 | $6.64 | 1 | |||
| 29 | 888988023 | ----CLAMP | ACT | $7.39 | $7.22 | 2 | |||
| 30 | 892267520 | ----PLATE | ACT | $8.79 | $8.59 | 1 | |||
| 31 | 892267529 | ----SCREW | ACT | $4.49 | $4.39 | 5 | |||
| 32 | 892267527 | ----FLOAT | ACT | $35.49 | $34.78 | 1 | |||
| 33 | 892267528 | ----PIN-FLOAT | ACT | $4.69 | $4.59 | 1 | |||
| 34 | 892267517 | ----CLIP | ACT | $11.59 | $11.32 | 1 | |||
| 35 | 892267516 | ----TUBE | ACT | $19.29 | $18.82 | 1 | |||
| 36 | 56762 | TIE STRAP | ACT | $0.50 | $0.49 | 1 | |||
| 37 | 82130025 | SCREW | ACT | $4.09 | $4.00 | 3 | |||
| 38 | 8M0214930 | WASHER | 4002316 | SS |
|
$1.00 | $0.98 | 3 | |
| 39 | 897777002 | SLEEVE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 40 | 888988023 | CLAMP | ACT | $7.39 | $7.22 | 1 |
