| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

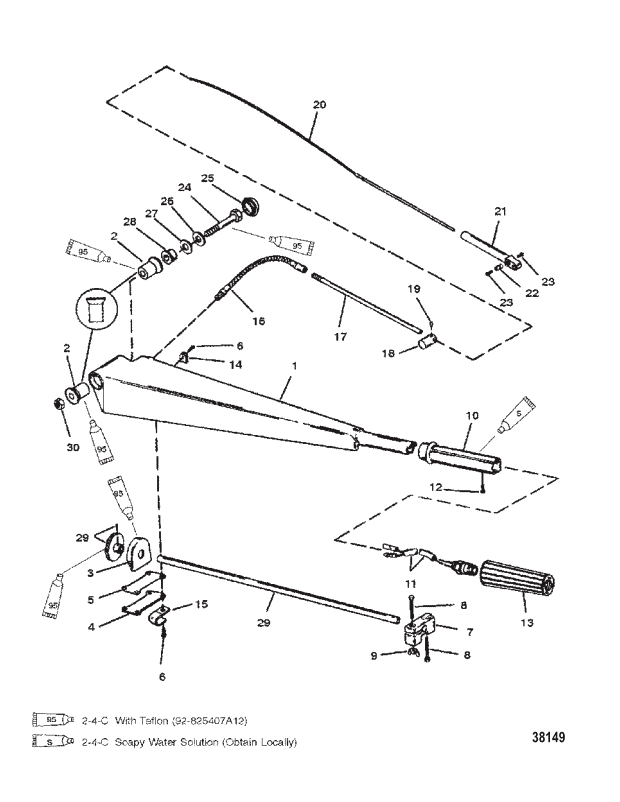

| 1 | 12020A3 | HANDLE ASSEMBLY Steering Arm | ACT |
|
$232.99 | $209.75 | 1 | ||
| 1 | 12020A3 | HANDLE ASSEMBLY Steering Arm | 12020A4 | REP |
|
$232.99 | $209.75 | 1 | |
| 2 | 42992T02 | ----BUSHING | 429922 | SS |
|
$7.49 | $7.32 | 2 | |
| 3 | 48414 | HOUSING | ACT | $41.49 | $40.66 | 1 | |||
| 4 | 48519 | PLATE | ACT | $20.19 | $19.81 | 1 | |||
| 5 | 48518 | GASKET | ACT | $5.49 | $5.37 | 1 | |||
| 6 | 878608 | SCREW (#10-16 x .500) | 812832 | SS |
|
$1.70 | $1.66 | 6 | |
| 6 | 878609 | SCREW (#10-16 x .600) | 8128321 | SS |
|
$2.59 | $2.53 | 1 | |
| 7 | 889729 | CLAMP | 12013 | SS |
|
$15.29 | $14.92 | 1 | |
| 8 | 40007112 | SCREW (M5 x 40) | ACT | $3.69 | $3.59 | 2 | |||
| 9 | 816874 | WING NUT | 816873 | SS |
|
$5.09 | $4.98 | 1 | |
| 10 | 823609A15 | SWITCH KIT Stop - Throttle Handle | ACT |
|
$51.99 | $48.74 | 1 | ||
| 11 | 8M0104612 | ----SWITCH ASSEMBLY Stop | 823609A5 | SS |
|
$38.49 | $37.81 | 1 | |
| 12 | 62568 | SCREW (#10-16 x .375) | ACT | $1.10 | $1.08 | 1 | |||
| 13 | 8M0221732 | GRIP | 99589 | SS |
|
$22.49 | $22.02 | 1 | |
| 14 | 648551 | CLAMP | ACT | $0.20 | $0.20 | 1 | |||
| 15 | 648551 | CLAMP | ACT | $0.20 | $0.20 | 1 | |||
| - | 12019A1 | CABLE KIT Throttle | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 8885242 | ----CONDUIT | 785512 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 17 | 8M0026078 | ----GUIDE TUBE | 895661 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 18 | 89578 | ----BARREL | ACT | $48.49 | $47.49 | 1 | |||
| 19 | 824081 | ----SET SCREW (#10-32) | ACT | $1.00 | $0.98 | 1 | |||
| 20 | 12019 | ----CABLE ASSEMBLY | ACT | $155.99 | $140.56 | 1 | |||
| 21 | 8M0204660 | ----GUIDE | 43433 | SS |
|
$17.89 | $17.46 | 1 | |
| 22 | 20007 | ----ANCHOR | ACT | $28.69 | $28.15 | 1 | |||
| 23 | 8M0204644 | ----SET SCREW (#8-32) | 20518 | SS |
|
$1.80 | $1.76 | 2 | |
| 24 | 823567105 | SCREW (M10 x 105) Hex Flange - Stainless Steel | ACT | $11.59 | $11.32 | 1 | |||
| 25 | 48416 | CAP | ACT | $5.89 | $5.76 | 1 | |||
| 26 | 4002319 | WASHER | ACT | $3.19 | $3.11 | 1 | |||
| 27 | 12024 | WASHER (.402 x .787 x .039 Bellevi) | ACT | $5.89 | $5.76 | 1 | |||
| 28 | 146011 | SPACER | 14601 | SS |
|
$26.59 | $26.11 | 1 | |
| 29 | 12018A4 | TUBE ASSEMBLY Throttle | ACT | $255.49 | $230.19 | 1 | |||
| 30 | 40140 | NUT (M10) | 13914 | SS |
|
$3.39 | $3.30 | 1 |
