| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

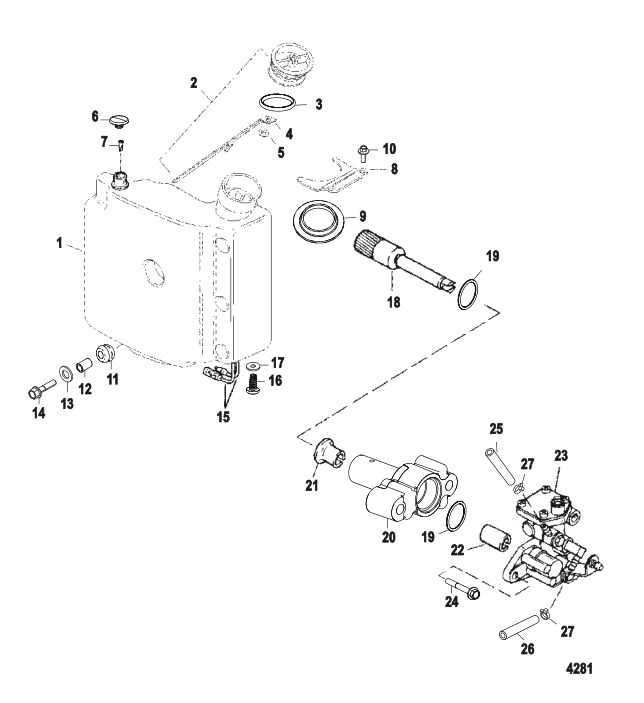

| 1 | 8M0219217 | TANK ASSY-OIL | 828362A2 | SS |
|
$232.99 | $219.03 | 1 | |
| 2 | 828475A1 | ----CAP ASSY-OIL TANK | ACT |
|
$50.49 | $48.53 | 1 | ||
| 3 | 26318T | --------O RING | 26318 | SS |
|
$5.39 | $5.27 | 1 | |
| 4 | 828793 | --------DIPSTICK | ACT | $11.49 | $11.22 | 1 | |||
| 5 | 65110 | --------NUT | 113161 | SS |
|
$1.70 | $1.66 | 1 | |
| 6 | 19299A1 | ----VENT ASSY | ACT |
|
$16.69 | $16.29 | 1 | ||
| 7 | 64871 | --------VALVE-CHECK | ACT | $13.09 | $12.78 | 1 | |||
| 8 | 8287201 | BRACKET | ACT | $19.69 | $19.32 | 1 | |||
| 9 | 99160001 | BOOT | 99160 | SS |
|
$8.39 | $8.20 | 1 | |
| 10 | 4010620 | SCREW | ACT | $3.39 | $3.30 | 2 | |||
| 11 | 825380001 | GROMMET | 825380 | SS |
|
$7.49 | $7.32 | 1 | |
| 12 | 828350 | BUSHING | ACT | $5.09 | $4.98 | 1 | |||
| 13 | 817274 | WASHER | ACT | $1.40 | $1.37 | 1 | |||
| 14 | 81893435 | SCREW | ACT | $3.99 | $3.91 | 1 | |||
| 15 | 12886A6 | SWITCH ASSY | ACT | $31.79 | $31.18 | 1 | |||
| 16 | 58376 | SCREW | ACT | $1.23 | $1.21 | 1 | |||
| 17 | 72761 | WASHER | ACT | $1.60 | $1.57 | 1 | |||
| 18 | 430204 | GEAR-DRIVEN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 8M0204667 | O RING | 62705 | SS |
|
$1.70 | $1.66 | 2 | |
| 20 | 17335A3 | ADAPTOR ASSY | ACT |
|
$53.99 | $51.83 | 1 | ||
| 21 | 17597 | ----BUSHING | ACT | $7.39 | $7.22 | 1 | |||
| 22 | 17596 | ----BUSHING | ACT | $3.19 | $3.11 | 1 | |||
| 23 | 44345T3 | PUMP ASSY OIL INJ | ACT | $360.49 | $344.52 | 1 | |||
| 24 | 82104540 | SCREW | ACT | $2.79 | $2.72 | 2 | |||
| 25 | 82381335 | TUBING-15 INCH | ACT |
|
$10.89 | $10.63 | 1 | ||
| 26 | 82381455 | TUBING-25 IN | ACT |
|
$23.69 | $23.24 | 1 | ||
| 27 | 8M0214940 | TIE STRAP | 69355 | SS |
|
$0.80 | $0.79 | AR | |
| 27 | 816311T | TIE STRAP | ACT | $0.60 | $0.59 | AR | |||
| - | 13461A99 | GASKET SET | ACT | $281.49 | $264.78 | 1 |
