Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

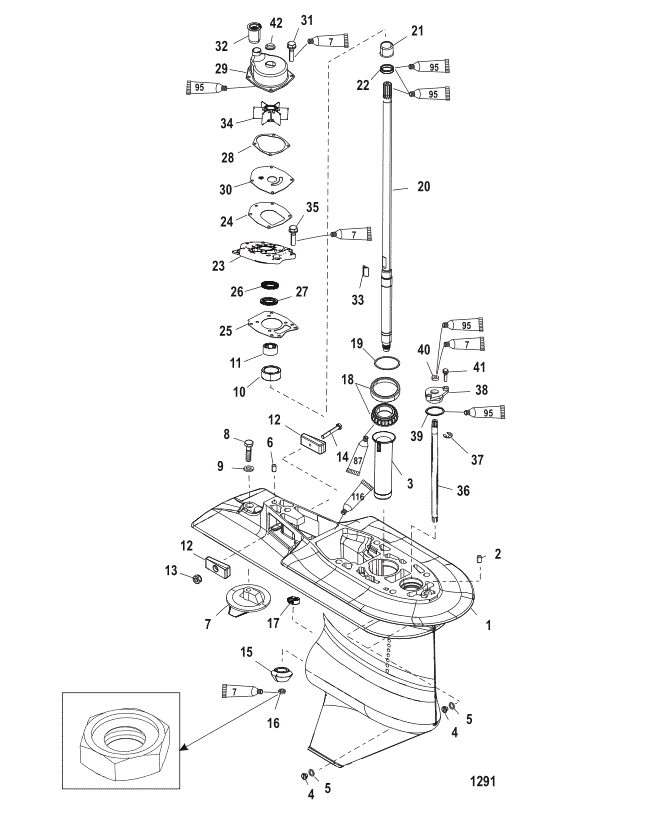

- 9011J15 GEAR HOUSING ASSEMBLY Complete 9011G57 SS $3,185.70 $2,920.41 1
- 9011J21 GEAR HOUSING ASSEMBLY Complete 9011G55 SS/NLA $0.00 $0.00 1
- 9011J23 GEAR HOUSING ASSEMBLY Complete 9011G53 SS $3,185.70 $2,920.41 1
1 9011G59 GEAR HOUSING ASSEMBLY Basic ACT $1,749.58 $1,603.87 1
2 8M0084244 --------PIN Dowel - With Hole (.375 x .625) Front 43043 SS $3.30 $3.22 1
3 43046 --------TUBE Oiler ACT $28.92 $28.40 1
4 79953Q04 --------SCREW KIT (.375-16 x .250 79953Q2 SS $7.49 $7.31 3
4 8M0058389 --------FITTING KIT Magnetic, Plug Fill/Drain 67892A1 SS $10.69 $10.44 OPT
5 191833 ------------WASHER 191832 SS/NLA $1.45 $1.42 3
6 43044 --------PIN Dowel - Without Hole (.375 x .625) Rear ACT $2.50 $2.44 1
7 31640T07 --------TRIM TAB 31640T5 SS $26.99 $26.43 1
8 825427 --------SCREW (.437-14 x 1.250) Stainless Steel ACT $7.00 $6.83 1
9 451761 --------WASHER (.453 x .812 x .105) Black Oxide ACT $2.60 $2.54 1
10 43040T1 --------CARRIER ASSEMBLY ACT $78.58 $75.59 1
11 NSS ------------------------NOT SOLD SEPARATE Needle Bearing $0.00 $0.00 1
12 826134Q --------ANODE ACT $16.49 $16.16 2
13 401386 --------NUT (M6) Stainless Steel ACT $5.10 $4.98 1
14 4000333 --------SCREW (M6 x 40) ACT $4.10 $4.00 1
15 44484T ----GEAR Pinion (13 Teeth) ACT $285.75 $269.10 1
16 35921 ----NUT (.625-18) ACT $8.01 $7.81 1
17 850307 ----CAM Shift Control ACT $40.67 $39.94 1
18 42677A1 ----BEARING ASSEMBLY Tapered Roller ACT $56.16 $54.03 1
19 8M0063265 ----SHIM SET 44492A1 REP $65.75 $63.24 1
20 43031A1 ----DRIVESHAFT ASSEMBLY ACT $787.14 $740.55 1
20 43032A6 ----DRIVESHAFT ASSEMBLY ACT $247.00 $232.60 1
20 43032A4 ----DRIVESHAFT ASSEMBLY ACT $729.86 $686.65 1
21 42461A1 --------SLEEVE/RING KIT ACT $26.67 $26.19 1
22 NSS ------------------------NOT SOLD SEPARATE Seal Ring $0.00 $0.00 1
23 8M0113262 ----COVER ASSEMBLY Water Pump 43055A4 REP $149.00 $140.32 1
24 430331 --------GASKET ACT $11.09 $10.83 1
25 8M0214931 --------GASKET 430472 SS $13.70 $13.36 1
26 43035 --------SEAL Oil Upper ACT $19.90 $19.41 1
27 43036 --------SEAL Oil Lower ACT $19.90 $19.41 1
28 8172771 --------GASKET ACT $5.70 $5.56 1
29 817275A2 ----HOUSING KIT Upper Water Pump ACT $104.99 $98.73 1
30 8M0204709 --------FACEPLATE 8172761 SS $14.60 $14.24 1
31 82684430 --------SCREW (M6 x 30) ACT $2.70 $2.64 4
32 430232 --------SEAL ACT $11.90 $11.61 1
33 8M0204723 ----KEY 43037 SS $4.40 $4.30 1
34 43026T2 ----IMPELLER ACT $36.49 $35.83 1
35 82684425 ----SCREW (M6 x 25) ACT $2.39 $2.33 6
36 853906A1 SHIFT SHAFT ASSEMBLY ACT $87.08 $83.76 1
36 853907A1 SHIFT SHAFT ASSEMBLY ACT $64.42 $61.96 1
36 853908A1 SHIFT SHAFT ASSEMBLY ACT $97.42 $93.70 1
37 29641 --------E RING ACT $1.80 $1.76 1
38 43052A4 ----BUSHING ASSEMBLY ACT $45.92 $45.09 1
39 8M0204681 --------O-RING (1.424 x .103) 45710 SS $3.79 $3.69 1
40 8M0204708 --------SEAL Oil 8164641 SS $17.00 $16.58 1
41 82684425 ----SCREW (M6 x 25) ACT $2.39 $2.33 2
42 816575A2 ----FACE SEAL 816575 SS $10.89 $10.63 1
- 43035A4 SEAL KIT Gear Housing ACT $98.33 $94.58 1
- 8M0113799 REPAIR KIT Water Pump 43024A7 REP $218.49 $204.14 1
- 43004A99 GASKET SET Powerhead ACT $166.33 $156.64 1
- 8M0100526 REPAIR KIT Water Pump Impeller 43026T11 SS $66.99 $64.66 1
