| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|

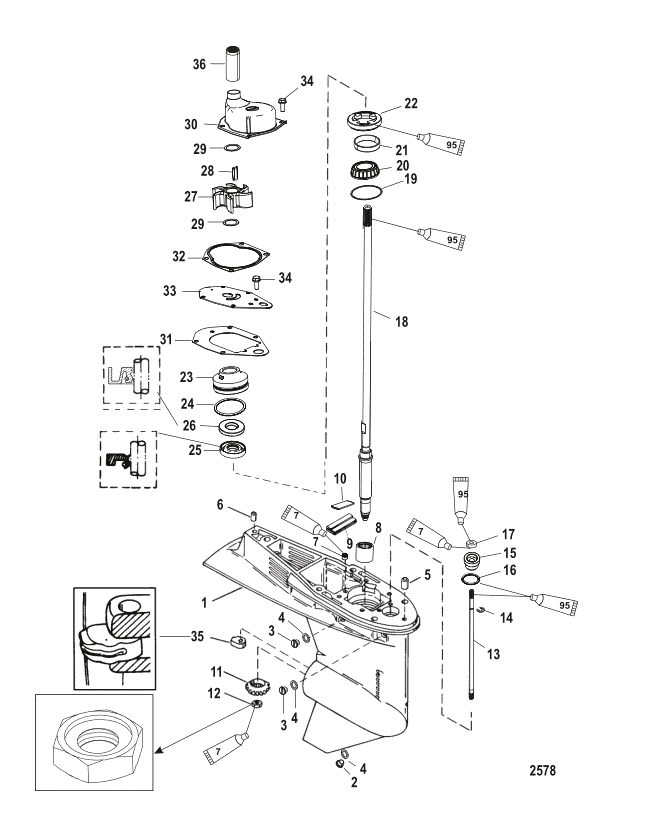

| - | 9760T41 | GEAR HOUSING ASSEMBLY Complete (3.44 Inch/87.37 mm Torpedo Diameter) | ACT |  | $3,007.15 | $2,756.71 | 1 | ||
| 1 | 9760T42 | ----GEAR HOUSING ASSEMBLY Basic | ACT | | $1,682.29 | $1,542.19 | 1 | ||
| 2 | 79953Q04 | --------SCREW KIT (.375-16 x .250 | 79953Q2 | SS | | $7.19 | $7.03 | 1 | |
| 3 | 79953Q04 | --------SCREW KIT (.375-16 x .250 | 79953Q2 | SS | | $7.19 | $7.03 | 2 | |
| 4 | 8M0204693 | ------------SEAL | 830749 | SS | | $4.99 | $4.88 | 3 | |
| 5 | 8M0084244 | --------PIN Dowel - With Hole (.375 x .625) | 43043 | SS | | $3.20 | $3.13 | 1 | |
| 6 | 43044 | --------PIN Dowel - Without Hole (.375 x .625) | ACT | $2.40 | $2.35 | 1 | |||
| 7 | 878089 | --------PLUG Pipe (.0625-27) | ACT | $15.10 | $14.73 | 1 | |||
| 8 | 812768 | --------BEARING Roller | ACT | $25.08 | $24.63 | 1 | |||
| 9 | 818226A1 | --------SEAL/PLATE KIT | ACT | | $6.90 | $6.73 | 1 | ||
| 10 | NSS | ------------------------NOT SOLD SEPARATE Filler Plate | | $0.00 | $0.00 | 1 | |||
| 11 | 859103T | ----GEAR Pinion - 12 Teeth | ACT | $264.17 | $248.77 | 1 | |||
| 12 | 55910 | ----NUT (.437-20) | ACT | $5.30 | $5.17 | 1 | |||
| 13 | 859607A1 | ----SHIFT SHAFT ASSEMBLY | ACT | | $79.83 | $76.79 | 1 | ||
| 14 | 29641 | --------E RING | ACT | $1.70 | $1.66 | 1 | |||
| 15 | 813696A2 | ----BUSHING ASSEMBLY | ACT | | $43.08 | $42.31 | 1 | ||
| 16 | 45258 | --------O-RING (.987 x .103) | ACT | | $3.50 | $3.42 | 1 | ||
| 17 | 8M0204708 | --------SEAL Oil | 8164641 | SS | | $16.30 | $15.90 | 1 | |
| 18 | 859102 | ----DRIVESHAFT Long | ACT | $865.50 | $814.27 | 1 | |||
| 19 | 8M0063262 | ----SHIM SET | 812770A1 | REP | | $71.58 | $68.85 | AR | |
| 20 | 8M0166756 | ----BEARING ASSEMBLY Roller | 77420A1 | SS | | $44.92 | $44.11 | 1 | |
| 21 | NSS | ----------------NOT SOLD SEPARATE Cup | | $0.00 | $0.00 | 1 | |||
| 22 | 8128201 | ----NUT | ACT | $36.75 | $36.09 | 1 | |||
| 23 | 812966A7 | ----BASE ASSEMBLY Water Pump | ACT | | $80.99 | $77.83 | 1 | ||
| 24 | 8M0204651 | --------O-RING (1.859 x .139) | 30224 | SS | | $3.99 | $3.91 | 1 | |
| 25 | 814669 | --------SEAL Oil | ACT | | $19.40 | $18.92 | 1 | ||
| 26 | 814670 | --------SEAL Oil | ACT | | $20.17 | $19.81 | 1 | ||
| 27 | 19453T | ----IMPELLER | ACT | | $53.49 | $51.25 | 1 | ||
| 28 | 8M0032831 | ----KEY | 19699 | SS | | $4.39 | $4.30 | 1 | |
| 29 | 8M0204720 | ----WASHER | 858234 | SS | | $1.70 | $1.66 | 2 | |
| 30 | 812966A12 | ----PUMP ASSEMBLY Water | 14334A3 | SS | | $174.99 | $164.65 | 1 | |
| 31 | 8M0224241 | --------GASKET (Lower) | 19701 | SS | | $6.49 | $6.34 | 1 | |
| 32 | 822189 | --------GASKET Upper Water Pump | ACT | | $6.39 | $6.25 | 1 | ||
| 33 | 19700A2 | --------FACE PLATE | ACT | | $16.99 | $16.58 | 1 | ||
| 34 | 8248324 | ----SCREW (M6 x 16) | ACT | $1.70 | $1.66 | 6 | |||
| 35 | 760394 | ----CAM Shift Control | ACT | $36.67 | $36.01 | 1 | |||
| 36 | 8M0151045 | ----COUPLER | 8597701 | SS | | $15.80 | $15.41 | 1 | |
| - | 814669A2 | SEAL KIT Gear Housing | ACT | $72.33 | $69.58 | 1 | |||
| - | 812966A12 | REPAIR KIT Water Pump | ACT | $174.99 | $164.65 | 1 |
