| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

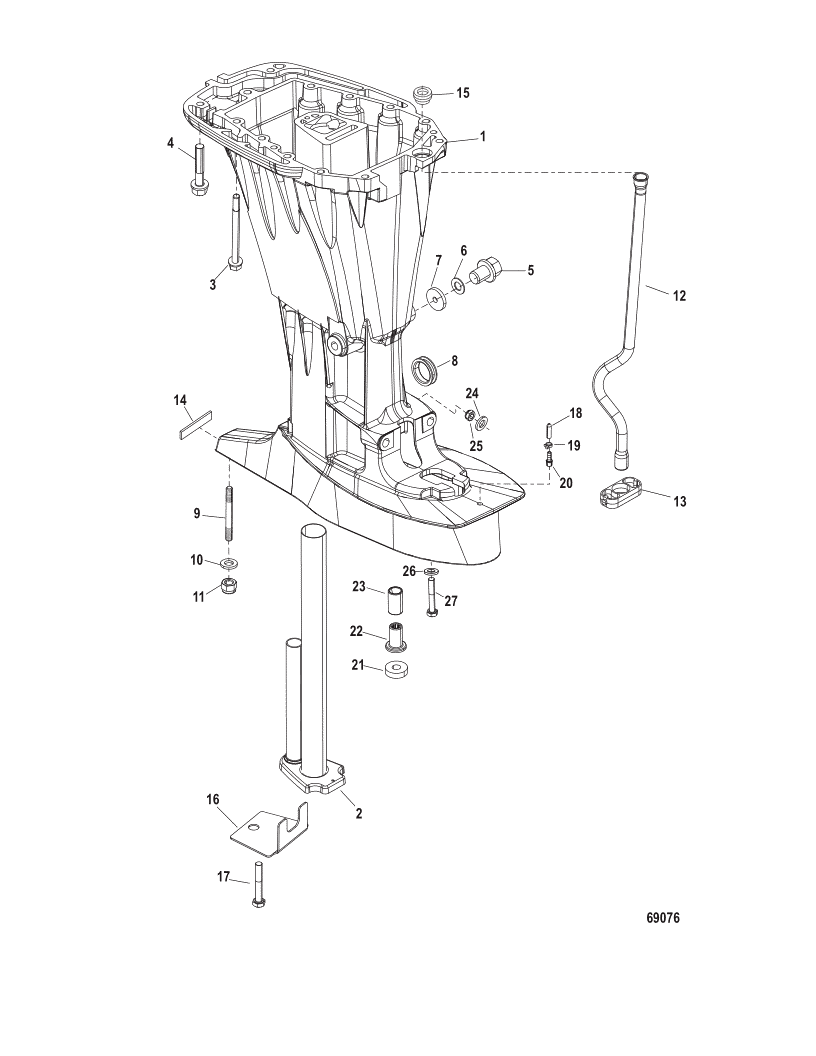

| 1 | 8M0118178 | HOUSING Driveshaft | 852421T5 | SS |
|
$1,559.36 | $1,429.50 | 1 | |
| 1 | 8M0118178 | HOUSING Driveshaft | 852421T5 | SS |
|
$1,559.36 | $1,429.50 | 1 | |
| 1 | 8M0118178 | HOUSING Driveshaft - Long | 852421T07 | REP |
|
$1,559.36 | $1,429.50 | 1 | |
| 1 | 8M0118178 | HOUSING Driveshaft - Long | 852421T07 | REP |
|
$1,559.36 | $1,429.50 | 1 | |
| 2 | 825220T06 | ----PIPE Exhaust | ACT | $90.58 | $87.13 | 1 | |||
| 3 | 824459110 | SCREW (M8 x 110) Stainless Steel | ACT | $15.81 | $15.41 | 8 | |||
| 4 | 88960845 | SCREW (M8 x 45) | ACT | $4.00 | $3.91 | 5 | |||
| 5 | 8288181 | PLUG Drain | ACT | $18.33 | $18.01 | 1 | |||
| 6 | 8M0204692 | GASKET | 828816 | SS |
|
$5.30 | $5.19 | 1 | |
| 7 | 826276 | BUMPER | ACT | $19.70 | $19.21 | 2 | |||
| 8 | 8M0151042 | GROMMET | 828817001 | SS |
|
$13.40 | $13.07 | 1 | |
| 9 | 823984 | STUD (M10 x 50) | ACT |
|
$32.75 | $32.16 | 1 | ||
| 9 | 903501 | STUD (M10 x 100) | ACT |
|
$14.20 | $13.85 | 1 | ||
| 10 | 8M0214963 | WASHER (.406 x .750 x .10 | 856774 | SS |
|
$2.60 | $2.54 | 1 | |
| 11 | 40140 | NUT (M10) | ACT | $3.39 | $3.30 | 1 | |||
| 12 | 897971A01 | TUBE Water | 888591001 | SS |
|
$79.67 | $76.63 | 1 | |
| 13 | 828529 | GUIDE | ACT | $20.67 | $20.30 | 1 | |||
| 14 | 8M0043364 | BUMPER | 828706 | SS |
|
$2.50 | $2.44 | 1 | |
| 15 | 42941001 | SEAL Water Tube | ACT | $5.20 | $5.08 | 1 | |||
| 16 | 8M4503628 | PLATE Driveshaft Housing | 893770 | REP |
|
$5.20 | $5.08 | 1 | |
| 17 | 1993325 | SCREW (M10 x 25 MM) | ACT | $7.00 | $6.90 | 1 | |||
| 18 | 892286 | CAP | ACT | $3.20 | $3.13 | 1 | |||
| 19 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 1 | |||
| 20 | 8M0181450 | FITTING | 13035002 | SS |
|
$13.50 | $13.17 | 1 | |
| 21 | 813745 | SPACER | ACT | $7.40 | $7.22 | 1 | |||
| 22 | 43585 | COUPLING | ACT | $31.83 | $31.26 | 1 | |||
| 23 | 855623 | BUSHING | ACT | $12.10 | $11.80 | 1 | |||
| 24 | 45176 | WASHER (.453 x .812 x .10 | ACT | $1.50 | $1.47 | 2 | |||
| 25 | 40140 | NUT (M10) | ACT | $3.39 | $3.30 | 2 | |||
| 26 | 8M0214963 | WASHER (.406 x .750 x .10 | 856774 | SS |
|
$2.60 | $2.54 | 4 | |
| 27 | 4000380 | SCREW (M10 x 45) | ACT | $5.30 | $5.17 | 4 |
