| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

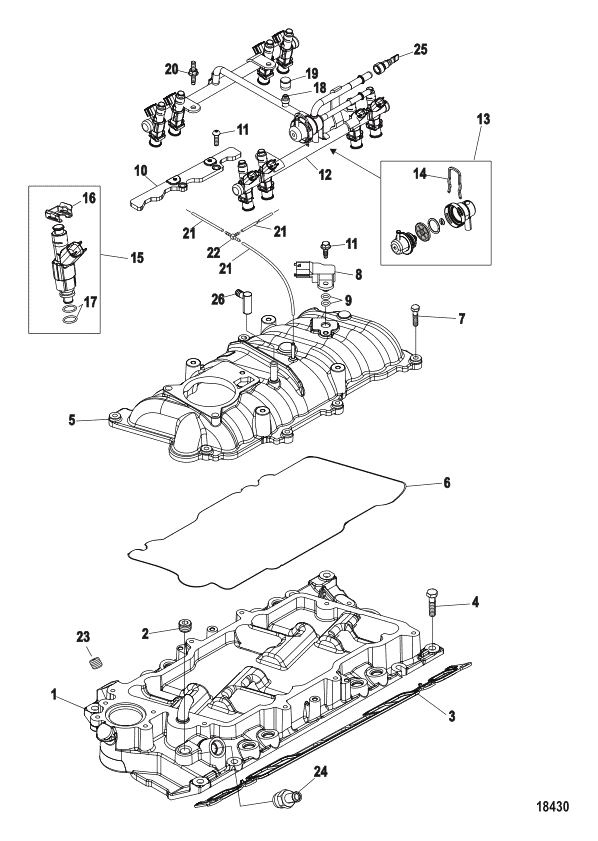

| 1 | 8M0104793 | MANIFOLD Intake Lower | 885164 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 12524 | PLUG (.375-18 x .475) Brass | ACT | $5.09 | $4.98 | 1 | |||
| 3 | 807473A1 | GASKET SET Intake Manifold | ACT |
|
$73.99 | $69.69 | 1 | ||
| 4 | 8M0214949 | SCREW (.312-18 x 1.375) | 808010 | SS |
|
$3.79 | $3.69 | 8 | |
| 5 | 8M0097033 | MANIFOLD Intake Upper | 885167 | SS |
|
$416.49 | $385.45 | 1 | |
| 6 | 8M0097034 | GASKET Intake Manifold | 885168 | SS |
|
$51.99 | $48.74 | 1 | |
| 7 | 885166 | SCREW | ACT | $18.39 | $18.01 | 13 | |||
| 8 | 8M0087834 | SENSOR (Temperature and Pressure) | 885165 | SS |
|
$130.49 | $117.28 | 1 | |
| 9 | 881733 | SEAL | ACT | $20.99 | $20.62 | 2 | |||
| 10 | NSS | NOT SOLD SEPARATE Bracket (Component of 885164 ) |
|
$0.00 | $0.00 | 1 | |||
| 11 | 885180 | SCREW | ACT | $25.79 | $25.29 | 4 | |||
| 12 | 8M0226853 | FUEL RAIL ASSEMBLY | 885173 | SS |
|
$993.99 | $905.11 | 1 | |
| 13 | 885174 | REGULATOR Fuel Pressure | ACT | $385.99 | $357.01 | 1 | |||
| 14 | 885175 | CLIP Fuel Pressure Regulator Retaining | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 885176 | INJECTOR | ACT |
|
$266.99 | $240.33 | 8 | ||
| 16 | 8M2001570 | ----RETAINER Injector | 885177 | SS |
|
$17.69 | $17.26 | 1 | |
| 17 | 892609 | ----O-RING KIT Ring Kit | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 885178 | VALVE Fuel Pressure Service | ACT | $20.99 | $20.54 | 1 | |||
| 19 | 885179 | CAP Fuel Pressure Service Valve | ACT | $19.79 | $19.31 | 1 | |||
| 20 | 885180 | SCREW | ACT | $25.79 | $25.29 | 4 | |||
| 21 | 8M0063567 | HOSE (52.00 Inches Bulk) (Cut to Appropriate Length) | 80617379 | SS |
|
$37.99 | $37.20 | 2 | |
| 22 | 806689 | FITTING Tee | ACT | $1.80 | $1.76 | 1 | |||
| 23 | 384071 | PLUG Pipe (.500) | 37372 | SS |
|
$14.99 | $14.63 | 1 | |
| 24 | 863426 | FITTING EGR Plug | ACT | $7.19 | $7.03 | 1 | |||
| 25 | 8623601 | PLUG Fuel Rail Block Off | ACT | $27.29 | $26.76 | 1 | |||
| 26 | 863432T | FITTING 90 Degree Vent | 863432 | SS |
|
$4.89 | $4.78 | 1 | |
| - | 861246A05 | GASKET SET Engine Overhaul | 861246A98 | SS |
|
$826.99 | $752.89 | 1 |
