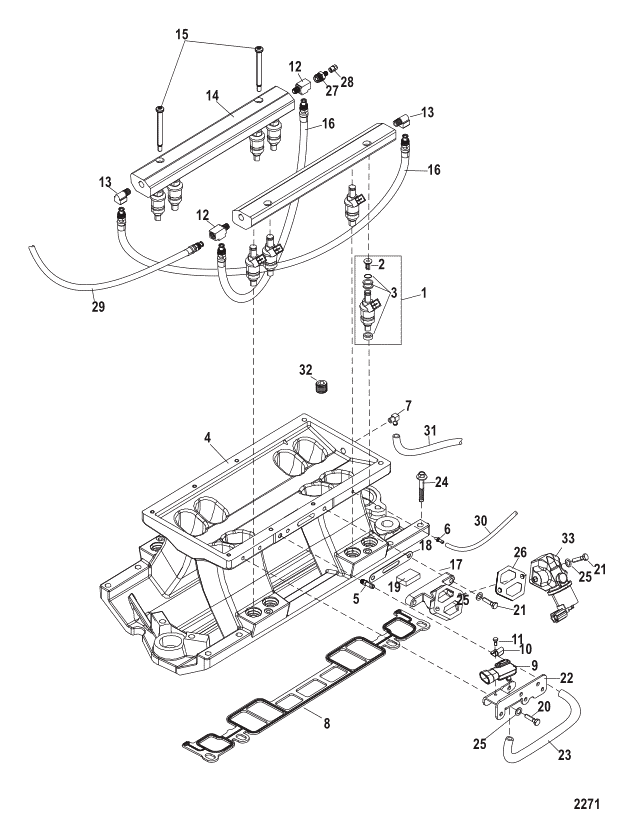

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 805225A1 | INJECTOR ASSEMBLY Fuel | ACT |
|
$318.99 | $287.58 | 8 | ||
| 2 | 17422 | ----FILTER Injector | ACT | $31.79 | $31.18 | 8 | |||
| 3 | 805511A1 | ----SEALING KIT Fuel Injector | ACT | $24.29 | $23.82 | 8 | |||
| 4 | 807352A12 | MANIFOLD ASSEMBLY Intake | ACT |
|
$2,276.99 | $2,039.08 | 1 | ||
| 4 | 807352A12 | MANIFOLD ASSEMBLY Intake | ACT |
|
$2,276.99 | $2,039.08 | 1 | ||
| 5 | 805691 | ----FITTING (.250) Barb | ACT | $24.99 | $24.55 | 1 | |||
| 6 | 805598 | ----FITTING (.1875) Barb | ACT | $12.09 | $11.80 | 1 | |||
| 7 | 687271 | ----FITTING (.250-18) 90 Degree - Brass | ACT | $31.99 | $31.34 | 1 | |||
| 8 | 807473A1 | ----GASKET SET Intake Manifold | ACT | $73.99 | $69.69 | 1 | |||
| 9 | 861425 | SENSOR Manifold Air Pressure | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 861198 | ----CLIP | ACT | $5.99 | $5.86 | 1 | |||
| 11 | 806826 | SCREW (#8-32 x .250) | ACT | $1.80 | $1.76 | 1 | |||
| 12 | 860265 | FITTING Tee | ACT | $24.09 | $23.65 | 2 | |||
| 13 | 93385 | FITTING (90 Degree) | ACT | $13.19 | $12.88 | 1 | |||
| 14 | 861085T | FUEL RAIL | ACT | $249.99 | $225.23 | 2 | |||
| 15 | 806943 | SHOULDER SCREW (.250-20 x 2.625) | ACT | $17.29 | $16.94 | 4 | |||
| 16 | 8M0122040 | LINE ASSEMBLY Fuel | 861568 | SS |
|
$207.99 | $187.44 | 2 | |
| 17 | 865167T | ADAPTER Intake Air Control | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 865228 | GASKET Intake Air Control Adaptor | ACT | $24.99 | $24.47 | 1 | |||
| 19 | 865266 | FILTER Intake Air Control Adaptor | ACT | $11.59 | $11.32 | 1 | |||
| 20 | 65746 | SCREW (.250-20 x .750) | ACT | $1.10 | $1.08 | 2 | |||
| 21 | 28667 | SCREW (.250-20 x 1.00) St | ACT | $1.50 | $1.47 | 4 | |||
| 22 | 865220T | BRACKET | ACT | $23.49 | $23.08 | 1 | |||
| 23 | 8M0214996 | HOSE (54.00 Inches Bulk) Cut to Appropriate Length | 1940971 | SS |
|
$30.79 | $30.20 | 1 | |
| 24 | 881892 | SCREW (.312-18 x 1.750) | ACT | $3.69 | $3.59 | 8 | |||
| 25 | 26992 | LOCKWASHER (.250) Stainle | ACT | $1.20 | $1.18 | 2 | |||
| 26 | 866326 | GASKET Flame Arrestor Intake Air Control | 865168 | SS |
|
$7.99 | $7.81 | 1 | |
| 27 | 860266 | VALVE Fuel Pressure Service | ACT | $27.49 | $26.93 | 1 | |||
| 28 | 8M0046566 | CAP Shrader Valve - Brass Fuel Pressure Service Valve | 805515 | REP |
|
$4.69 | $4.59 | 1 | |
| 29 | 862617A02 | LINE ASSEMBLY Fuel | ACT | $264.42 | $238.38 | 1 | |||
| 30 | 8M0063567 | HOSE (58.00 Inches Bulk) | 80617382 | SS |
|
$37.99 | $37.20 | 1 | |
| 31 | 8M0062321 | HOSE (33.00 Inches Bulk) | 86197763 | SS |
|
$53.49 | $50.31 | 1 | |
| 32 | 860075 | PLUG Pipe (.500-14) | ACT | $8.29 | $8.10 | 2 | |||
| 33 | 862998 | VALVE Idle Air | ACT | $214.17 | $193.08 | 1 | |||
| - | 807670A96 | GASKET/SEAL SET Engine Overhaul | ACT | $904.99 | $823.86 | 1 |
