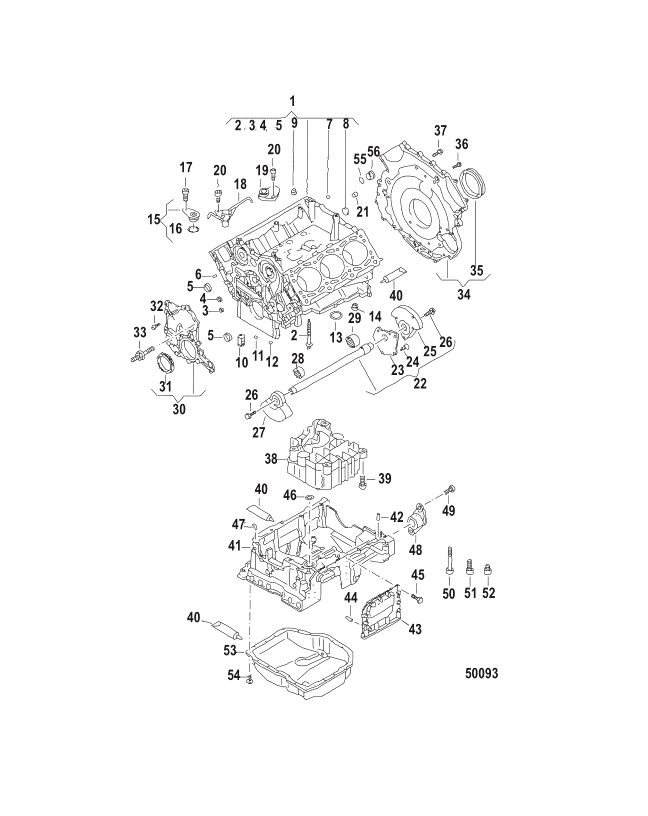

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0066527 | CRANKCASE | ACT | $5,961.60 | $5,533.56 | 1 | |||
| 2 | 8M0066528 | SCREW M11x112 | ACT | $10.90 | $10.63 | 16 | |||
| 3 | 8M0068103 | PLUG 16 | ACT | $1.70 | $1.66 | 1 | |||
| 4 | 8M0068105 | PLUG 18 | ACT | $1.90 | $1.86 | 1 | |||
| 5 | 8M0068107 | PLUG 28 | ACT | $2.30 | $2.25 | 2 | |||
| 6 | 8M0068370 | PIN 6x16 | ACT | $0.80 | $0.79 | 2 | |||
| 7 | 8M0068557 | PLUG 8 | ACT | $1.80 | $1.76 | 3 | |||
| 8 | 8M0068108 | PLUG 24 | ACT | $1.80 | $1.76 | 1 | |||
| 9 | NSS | NOT SOLD SEPARATE |  | $0.00 | $0.00 | 1 | |||
| 10 | 8M0066411 | GASKET | ACT | $4.20 | $4.10 | 4 | |||
| 11 | 8M0068415 | SEAL 7x2 | ACT | $2.60 | $2.54 | 1 | |||
| 12 | 8M0068418 | SEAL 11x2.5 | ACT | $7.70 | $7.51 | 1 | |||
| 13 | 8M0068141 | O-RING 18x22 | ACT | $2.30 | $2.25 | 1 | |||
| 14 | 8M0068168 | SCREW | ACT | $10.30 | $10.05 | 1 | |||
| 15 | 8M0066648 | COVER PLATE | ACT | $38.33 | $37.64 | 1 | |||
| 16 | 8M0068523 | SEAL 19.6x3 | ACT | $4.10 | $4.00 | 1 | |||
| 17 | 8M0068239 | SCREW M6x10 | NLA | | $0.70 | $0.69 | 1 | ||
| 18 | 8M0066535 | OIL SPRAY JET | 8M0066534 | SS | | $60.00 | $57.71 | 3 | |
| 19 | 8M0066568 | CHECK VALVE | ACT | $46.75 | $45.91 | 1 | |||
| 20 | 8M0068548 | SCREW M6x6x12 | ACT | $0.90 | $0.88 | 4 | |||
| 21 | 8M0066410 | SLEEVE | ACT | $4.50 | $4.39 | 2 | |||
| 22 | 8M0066542 | BALANCE SHAFT | ACT | | $233.67 | $220.05 | 1 | ||
| 22 | 8M0066543 | BALANCE SHAFT | ACT | | $233.67 | $220.05 | 1 | ||
| 23 | 8M0066554 | CAP Plate | ACT | | $53.67 | $51.62 | 1 | ||
| 23 | 8M0066555 | CAP Plate | ACT | | $53.67 | $51.62 | 1 | ||
| 24 | 8M0068315 | SCREW M6x12 | ACT | $0.70 | $0.69 | 4 | |||
| 25 | 8M0066544 | WEIGHT BALANCER | ACT | | $86.92 | $83.60 | 1 | ||
| 25 | 8M0066545 | WEIGHT BALANCER | ACT | | $86.92 | $83.60 | 1 | ||
| 26 | 8M0068501 | SCREW M10x20 | ACT | $2.90 | $2.83 | 2 | |||
| 27 | 8M0066546 | WEIGHT BALANCER | ACT | $64.75 | $62.28 | 1 | |||
| 28 | 8M0066569 | BEARING, NEEDLE 25mm | ACT | $24.50 | $24.06 | 1 | |||
| 29 | 8M0066570 | BEARING, NEEDLE 22mm | ACT | $23.00 | $22.59 | 1 | |||
| 30 | 8M0067258 | FLANGE | ACT | | $253.17 | $238.41 | 1 | ||
| NS | 8M0093812 | ----SEAL | ACT | $89.08 | $85.69 | 1 | |||
| 31 | 8M0067474 | SEAL Oil | ACT | $57.33 | $55.15 | 1 | |||
| 32 | 8M0068223 | SCREW M6x20 | ACT | $1.00 | $0.98 | 12 | |||
| 33 | 8M0068522 | SCREW M6x22/M6x12 | ACT | $9.90 | $9.66 | 1 | |||
| 34 | 8M0066536 | FLANGE | ACT | | $699.67 | $663.29 | 1 | ||
| 34 | 8M0066537 | FLANGE | ACT | | $699.67 | $663.29 | 1 | ||
| 35 | 8M0067475 | SEAL Oil | ACT | $57.33 | $55.15 | 1 | |||
| 36 | 8M0068234 | SCREW M6x30 | ACT | $1.30 | $1.27 | 21 | |||
| 37 | 8M0068255 | SCREW M8x32 | ACT | $2.30 | $2.25 | 7 | |||
| 38 | 8M0067257 | BAFFLE, OIL PAN | ACT | $351.33 | $330.86 | 1 | |||
| 39 | 8M0068553 | SCREW M6x25 | ACT | $0.60 | $0.59 | 4 | |||
| 40 | 8M0099608 | SEALANT 80 ml | 8M0068047 | SS/NLA | | $31.01 | $30.46 | AR | |
| 42 | 8M0066404 | PIN, SPRING 6.2x22 | ACT | $3.10 | $3.03 | 6 | |||
| 43 | 8M0067261 | COVER PLATE | ACT | $389.17 | $366.48 | 1 | |||
| 44 | 8M0068370 | PIN 6x16 | ACT | $0.80 | $0.79 | 2 | |||
| 45 | 8M0068223 | SCREW M6x20 | ACT | $1.00 | $0.98 | 10 | |||
| 46 | 8M0066563 | SEAL | ACT | $6.40 | $6.25 | 1 | |||
| 47 | 8M0066564 | SEAL | ACT | $5.50 | $5.37 | 1 | |||
| 48 | 8M0066617 | CARRIER PLATE | ACT | $100.83 | $94.96 | 1 | |||
| 49 | 8M0068487 | SCREW M6x16-H | ACT | $0.80 | $0.79 | 2 | |||
| 50 | 8M0068498 | SCREW | ACT | $1.90 | $1.86 | 10 | |||
| 51 | 8M0068496 | SCREW | ACT | $0.80 | $0.79 | 2 | |||
| 52 | 8M0068526 | SCREW M7x105x39 | ACT | $4.00 | $3.91 | 3 | |||
| 53 | 8M0100291 | PAN | 8M0067260 | SS | | $918.40 | $870.65 | 1 | |
| 54 | 8M0068252 | SCREW M6x32 | ACT | $0.90 | $0.88 | 23 | |||
| 55 | 8M0066277 | SEAL 15x2.5 | ACT | $8.10 | $7.90 | 1 | |||
| 56 | 8M0066538 | PLUG | ACT | $33.92 | $33.31 | 1 |
