| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

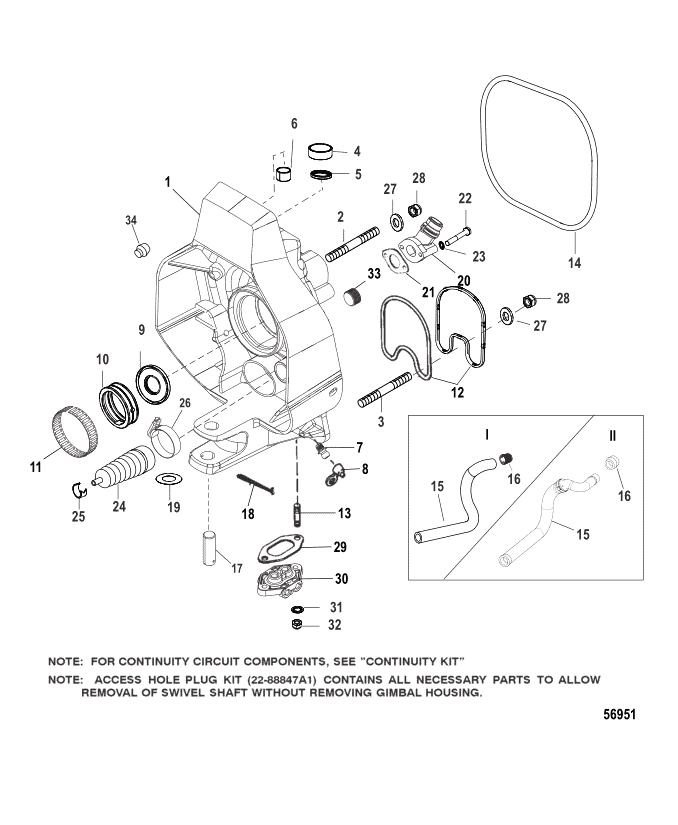

| 1 | 8M0096216 | HSG ASSY-GIMBAL | 43881A17 | SS |
|
$2,667.99 | $2,445.49 | 1 | |
| 1 | 8M0096217 | HSG ASSY-GIMBAL | 866454A02 | SS |
|
$2,657.99 | $2,436.38 | 1 | |
| 2 | 866562 | ----STUD | ACT |
|
$12.79 | $12.49 | 4 | ||
| 3 | 866563 | ----ORD 16-866563 | 818834 | REP |
|
$12.59 | $12.29 | 4 | |
| 3 | 866563 | ----STUD | ACT |
|
$12.59 | $12.29 | 4 | ||
| 4 | 983571 | ----BUSHING Lower | ACT | $25.49 | $24.96 | 1 | |||
| 5 | 8M2005029 | ----ORD 8M2005029 | 416071 | REP |
|
$24.99 | $24.47 | 1 | |
| 5 | 8M2005029 | ----SEAL | ACT | $24.99 | $24.47 | 1 | |||
| 6 | 98356 | ----BUSHING Upper | ACT | $17.79 | $17.43 | 1 | |||
| 7 | 8M0169589 | ----FITTING | 74036 | SS |
|
$4.79 | $4.69 | 1 | |
| 7 | 8M0204738 | ----SET SCREW | 8M2015913 | SS |
|
$6.89 | $6.73 | 1 | |
| 8 | 77633Q | ----CAP KT-5PACK | ACT | $6.99 | $6.83 | 1 | |||
| 9 | 88416 | ----SEAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 879194A01 | ----BEARING ASSEMBLY | 862540A3 | SS |
|
$155.99 | $146.83 | 1 | |
| 11 | 61075 | --------RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 41802 | ----SEAL Without Tabs | ACT | $15.99 | $15.61 | 1 | |||
| 12 | NSS | --------NOT SOLD SEPARATE Seal With Tabs |
|
$0.00 | $0.00 | 1 | |||
| 13 | 56766 | ----STUD | ACT | $3.69 | $3.59 | 2 | |||
| 14 | 43713 | ----SEAL | ACT | $17.39 | $16.97 | 1 | |||
| 15 | 8M0090859 | ----ORD 8M0090859 Water | 43437 | REP |
|
$79.99 | $76.63 | 1 | |
| 15 | 8M0062102 | ----HOSE ASSY Water | ACT |
|
$48.99 | $48.04 | 1 | ||
| 16 | 41674T | ----INSERT | 41674 | SS |
|
$6.09 | $5.95 | 1 | |
| 16 | 8M0057042 | ----BUSHING | ACT |
|
$2.79 | $2.72 | 1 | ||
| 17 | 8M0073409 | PIN | 99353 | SS |
|
$59.99 | $57.55 | 1 | |
| 18 | 54929 | PIN-COTTER | ACT | $7.89 | $7.71 | 1 | |||
| 19 | 32518 | WASHER | ACT | $3.79 | $3.69 | 1 | |||
| 20 | 865470 | HOUSING-INLET Male Quick Connect | ACT | $17.29 | $16.94 | 1 | |||
| 21 | 8M0061737 | GASKET | 441081 | SS |
|
$1.70 | $1.66 | 1 | |
| 22 | 78038 | SCREW | ACT | $3.19 | $3.11 | 2 | |||
| 22 | 73015 | SCREW | ACT | $1.80 | $1.76 | 2 | |||
| 23 | 21272 | LOCKWASHER | ACT | $1.10 | $1.08 | 2 | |||
| 23 | 78968 | LOCKWASHER | ACT | $1.80 | $1.76 | 2 | |||
| 24 | 74639A2 | BELLOWS Shift Cable | ACT |
|
$34.99 | $34.29 | 1 | ||
| 25 | 8M0204733 | ----CLAMP | 866507 | SS |
|
$7.49 | $7.32 | 1 | |
| 26 | 8M0204716 | ----CLAMP | 815504320 | SS |
|
$11.49 | $11.22 | 1 | |
| 27 | 34567 | WASHER | ACT | $1.50 | $1.47 | 8 | |||
| 27 | 8M0204655 | WASHER | 35935 | SS |
|
$2.69 | $2.62 | 8 | |
| 28 | 82670815 | NUT | ACT | $2.59 | $2.53 | 8 | |||
| 29 | 988231 | GASKET | ACT | $3.19 | $3.11 | 1 | |||
| 30 | 8M0137703 | MANIFOLD ASSY | 98825A4 | SS |
|
$129.99 | $122.35 | 1 | |
| 31 | 78968 | LOCKWASHER | ACT | $1.80 | $1.76 | 2 | |||
| 32 | 8267119 | NUT | ACT | $2.59 | $2.53 | 2 | |||
| 33 | 8M0204679 | PLUG-PIPE | 428611 | SS |
|
$10.99 | $10.73 | 1 | |
| 34 | 861492 | PLUG Trim Switch Wires | ACT | $8.99 | $8.78 | 1 | |||
| - | 88847A1 | PLUG KIT | ACT |
|
$36.49 | $35.68 | 1 |
