| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

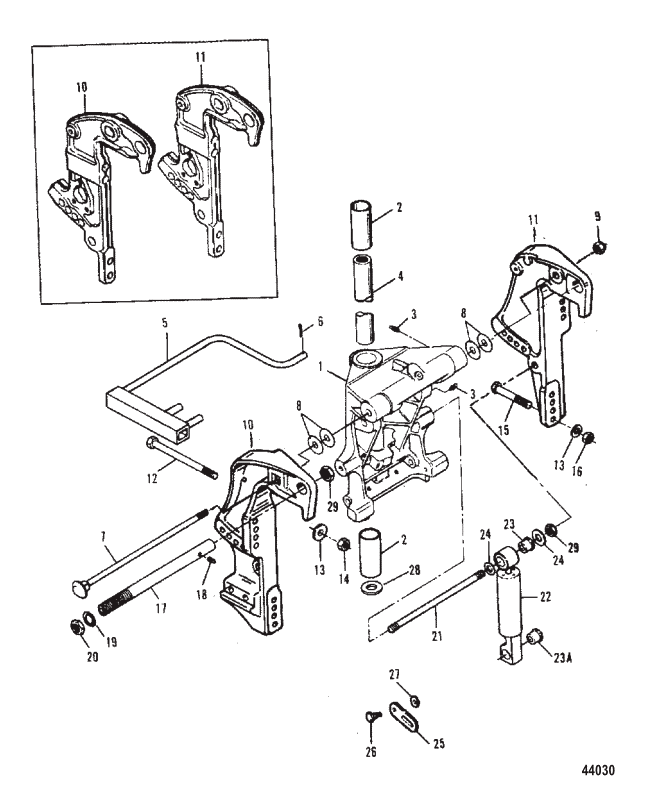

| 1 | 817783A5 | BRKT KIT-SWIVEL Painted | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 819493 | ----BUSHING Swivel Bracket | NLA |
|
$0.00 | $0.00 | 2 | ||
| 3 | F213274 | ----FITTING-GREASE Grease | NLA |
|
$1.94 | $1.90 | 3 | ||
| 4 | FS85019 | KINGPIN ASY-20 IN (20 in.) | NLA |
|
$36.27 | $35.62 | 1 | ||
| 4 | FA500019 | KINGPIN ASY-25IN. (25 in.) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 819504A2 | BRACKET KIT-LOCK Lock, Trailering | 819504A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 6 | F525629 | ----PIN-HITCH Cotter | NLA |
|
$1.70 | $1.66 | 1 | ||
| 7 | F85037-1 | BOLT-SPECIAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | F84286-1 | WASHER | NLA |
|
$0.00 | $0.00 | 4 | ||
| 9 | 898832 | NUT | 28040 | SS |
|
$3.69 | $3.59 | 1 | |
| 10 | 820445F | BRKT-STERN-STBD Stern, Starboard | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 820446F | BRKT-STERN-PORT Stern, Port | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10A | 819424T | BRKT-STERN-STBD Stern, Starboard | 819424F | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11A | 819425T | BRKT-STERN-PORT Stern, Port | 819425F | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 12 | F685632 | BOLT (1/2-20 X 7) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 12 | 8M0149747 | SCREW | 677551 | SS |
|
$18.19 | $17.75 | 2 | |
| 13 | FK684201 | WASHER KIT | NLA |
|
$6.58 | $6.43 | 4 | ||
| 13 | 8M0204648 | WASHER | 28421 | SS |
|
$3.99 | $3.91 | 2 | |
| 14 | 82671117 | NUT | 8M0027784 | SS |
|
$8.99 | $8.78 | 2 | |
| 15 | F2428 | SCREW (3/8-16 X 5) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 16 | 8M0204671 | NUT | 86226 | SS |
|
$2.79 | $2.72 | 2 | |
| 17 | 818066A3 | TUBE ASY-STEERING STEERING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | F523274 | ----FITTING-GREASE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 48462 | ----O RING Steering Tube | F316599 | SS |
|
$1.80 | $1.76 | 1 | |
| 20 | F523280 | NUT Steering Tube | NLA |
|
$23.70 | $23.09 | 2 | ||
| 21 | F449889 | SHAFT SS Upper Shock | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | FS719962 | SHOCK ABSORBER (Painted) | FS631962 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | F178344 | ----BUSHING Upper | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23A | F449362 | BUSHING Lower | ACT | $9.89 | $9.66 | 1 | |||
| 24 | F1960 | WASHER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 25 | F694426 | STOP Tilt (Not Used on all Models) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 26 | F85350-1 | PIVOT SS (Not Used on all Models) | NLA |
|
$0.00 | $0.00 | 4 | ||
| 27 | 69150 | WASHER-WAVE Not Used on all Models) | ACT | $3.79 | $3.69 | 2 | |||
| 28 | F84011 | WASHER Swivel Bracket | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 826709117 | NUT | 35778 | SS |
|
$10.99 | $10.73 | 2 |
