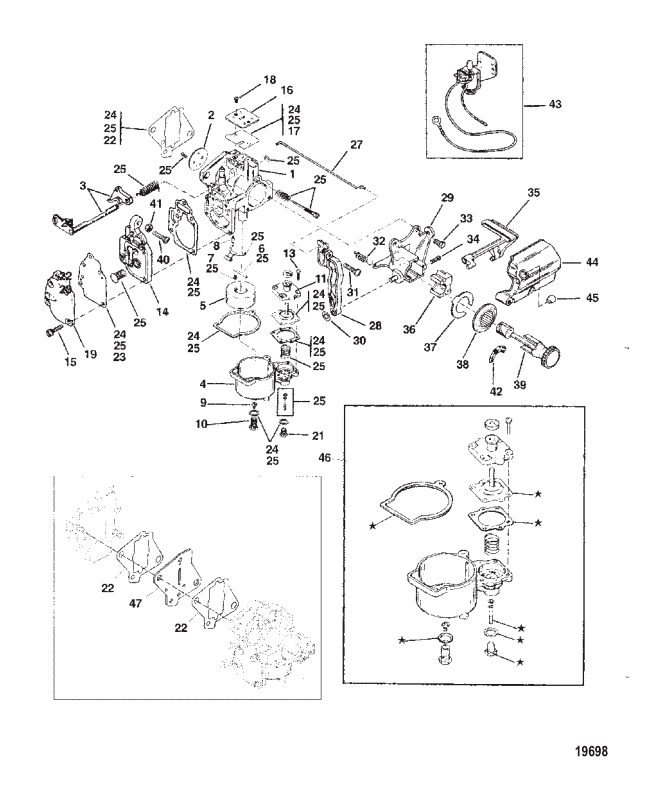

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9266T22 | CARBURETOR | 9266A14 | SS |
|
$484.29 | $462.91 | 1 | |
| 1 | 9266T22 | CARBURETOR | 9266A16 | SS |
|
$484.29 | $462.91 | 1 | |
| 1 | 9503T21 | CARBURETOR | 9503A13 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 8846A24 | CARBURETOR | 8846A14 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 9473 | ----VALVE Throttle | ACT |
|
$6.80 | $6.64 | 1 | ||
| 2 | 94731 | ----VALVE Throttle | ACT |
|
$20.75 | $20.38 | 1 | ||
| 2 | 815133 | ----VALVE Throttle | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 804707 | ----SHAFT | 9698 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 3 | 96981 | ----SHAFT |
|
$0.00 | $0.00 | 1 | |||
| 3 | 813022 | ----SHAFT Throttle (INCL. SCREW/SPRING) | ACT |
|
$59.83 | $57.55 | 1 | ||
| 4 | 9164 | ----BOWL Fuel | ACT | $88.92 | $85.53 | 1 | |||
| 5 | 91691 | ----FLOAT | ACT | $13.59 | $13.31 | 1 | |||
| 6 | F10064 | ----SHAFT | ACT | $4.60 | $4.49 | 1 | |||
| 7 | 5902 | ----SCREW (#6-32 x .187) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 803861 | ----VALVE-INLET | 879194048 | SS |
|
$25.42 | $25.00 | 1 | |
| 9 | 5315 | ----JET Main Fuel (.042) | NLA |
|
$10.88 | $10.63 | 1 | ||
| 9 | 5317 | ----JET (.046) | ACT |
|
$4.10 | $4.00 | 1 | ||
| 9 | 6359 | ----JET (.052) | ACT |
|
$4.10 | $4.00 | 1 | ||
| 10 | 9171 | ----PLUG | ACT | $8.90 | $8.68 | 1 | |||
| 11 | 813618 | ----COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 823648 | ----COVER Diaphragm | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 9697 | ----SCREW | NLA |
|
$0.00 | $0.00 | 4 | ||
| 14 | 9702 | ----BODY | 15827A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| 15 | 9643 | ----SCREW | ACT | $4.99 | $4.88 | 5 | |||
| 16 | 9699 | ----PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 44426 | ----GASKET | ACT | $7.80 | $7.61 | 1 | |||
| 18 | 9696 | ----SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 96371 | ----COVER Fuel Pump | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 9637 | ----COVER | ACT | $30.75 | $30.20 | 1 | |||
| 21 | 9762 | ----PLUG | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 192061 | ----GASKET Carburetor (USE WHERE APPLICABLE) | ACT |
|
$4.99 | $4.88 | 1 | ||
| 23 | 9635 | ----DIAPHRAGM/GASKET | ACT | $46.00 | $45.17 | 1 | |||
| 24 | 97611 | ----GASKET/DIAPHRAGM KIT | ACT | $87.92 | $84.69 | 1 | |||
| 25 | 96481 | REPAIR KIT | ACT |
|
$174.08 | $163.94 | 1 | ||
| 26 | 8237072 | REPAIR KIT | ACT |
|
$136.58 | $127.50 | 1 | ||
| 27 | 445541 | IDLE WIRE | ACT | $11.20 | $10.93 | 1 | |||
| 28 | 128053 | LEVER Fast Idle | ACT | $11.20 | $10.93 | 1 | |||
| 29 | 12803 | BRACKET Primer | ACT | $30.42 | $29.87 | 1 | |||
| 30 | 821979 | NUT | ACT | $1.70 | $1.66 | 1 | |||
| 31 | 12110 | SCREW (#6-32 x .750) | 79964 | SS |
|
$1.80 | $1.76 | 1 | |
| 32 | 11277 | SPRING Tension | ACT | $3.70 | $3.61 | 1 | |||
| 33 | 400018 | SCREW (M5 x 12) | ACT | $1.10 | $1.08 | 2 | |||
| 34 | 79965 | SCREW (#8-32 x .500) Stainless Steel | ACT | $1.10 | $1.08 | 1 | |||
| 35 | 112731 | LEVER Primer | ACT | $12.60 | $12.29 | 1 | |||
| 36 | 11280 | CAM BLOCK | ACT | $8.10 | $7.90 | 1 | |||
| 37 | 11278 | CLIP Retaining | ACT | $6.70 | $6.54 | 1 | |||
| 38 | 12804A1 | BEZEL ASSEMBLY Choke | ACT | $30.08 | $29.53 | 1 | |||
| 39 | 128022 | PRIMER KNOB | ACT | $17.80 | $17.36 | 1 | |||
| 40 | 40056110 | SCREW (M5 x 30) | ACT | $1.80 | $1.76 | 1 | |||
| 41 | 400211 | NUT (M5) Stainless Steel | ACT | $3.60 | $3.52 | 1 | |||
| 42 | 129701 | DECAL (SLOW/FAST) | 12970 | SS |
|
$5.50 | $5.37 | 1 | |
| 43 | 823433 | CHOKE Electric | NLA |
|
$0.00 | $0.00 | 1 | ||
| 44 | 174421 | COVER Carburetor | ACT | $78.18 | $75.19 | 1 | |||
| 45 | 47579 | PLUG | ACT | $1.60 | $1.57 | 1 | |||
| 46 | 9844A1 | SERVICE KIT Primer/Injector (See Illustration for Contents -Indicated by a Star) | ACT | $39.99 | $39.28 | 1 | |||
| 47 | 12750A1 | RESTRICTOR PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 42364A92 | GASKET SET Engine | ACT | $112.00 | $105.48 | 1 |
