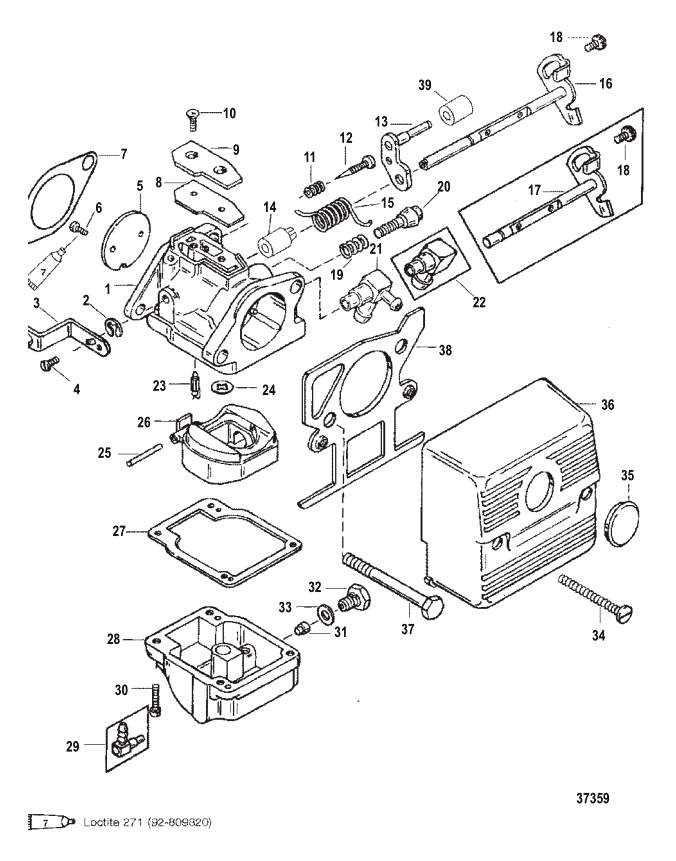

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 821383T17 | CARBURETOR | 821383A3 | SS |
|
$412.50 | $388.46 | 1 | |
| 1 | 821383T18 | CARBURETOR | 821383A4 | SS |
|
$392.36 | $375.04 | 1 | |
| 1 | 823799A44 | CARBURETOR | 823799A10 | SS |
|
$458.86 | $438.60 | 1 | |
| 1 | 823799T38 | CARBURETOR | 823799A11 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 823799T12 | CARBURETOR | 823799A12 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | NSS | --------NOT SOLD SEPARATE RETAINING RING |
|
$0.00 | $0.00 | 1 | |||
| 3 | 8113521 | ----LEVER Oil Pump (ELECTRIC) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 8086121 | ----SCREW Lever Retainer | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 8236371 | ----VALVE Throttle | ACT | $17.40 | $16.97 | 1 | |||
| 6 | NSS | --------NOT SOLD SEPARATE SCREW, Throttel Valve |
|
$0.00 | $0.00 | 2 | |||
| 7 | 8144461 | ----GASKET Flange | ACT |
|
$4.50 | $4.39 | 1 | ||
| 9 | 811221 | ----COVER PLATE | ACT | $16.83 | $16.53 | 1 | |||
| 10 | 811220 | ----SCREW Cover Plate | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | NSS | --------NOT SOLD SEPARATE SPRING, Idle Needle |
|
$0.00 | $0.00 | 1 | |||
| 12 | NSS | --------NOT SOLD SEPARATE IDLE NEEDLE |
|
$0.00 | $0.00 | 1 | |||
| 13 | 808746 | ----LEVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 808743 | ----BUSHING Throttle Shaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 8087431 | ----BUSHING Throttle Shaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | NSS | --------NOT SOLD SEPARATE SPRING, Throttel Return |
|
$0.00 | $0.00 | 1 | |||
| 16 | 8236331 | ----SHAFT Throttle | ACT |
|
$56.83 | $54.67 | 1 | ||
| 17 | 8236323 | ----SHAFT Throttle | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 823634 | ----SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 96321 | ----SPRING Idle Adjustment | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 808739 | ----SCREW Idle Speed | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 8087392 | ----SCREW Idle Speed | ACT |
|
$13.60 | $13.27 | 1 | ||
| 21 | NSS | --------NOT SOLD SEPARATE FITTING (PART OF REF # 1) |
|
$0.00 | $0.00 | 1 | |||
| 22 | NSS | --------NOT SOLD SEPARATE FITTING (PART OF REF # 1) |
|
$0.00 | $0.00 | 1 | |||
| 23 | 879194011 | ----VALVE Inlet | ACT |
|
$16.99 | $16.64 | 1 | ||
| 24 | 808738 | ----GASKET | ACT |
|
$7.00 | $6.83 | 1 | ||
| 25 | NSS | --------NOT SOLD SEPARATE FLOAT SHAFT |
|
$0.00 | $0.00 | 1 | |||
| 26 | 9594 | ----FLOAT | ACT | $27.58 | $27.04 | 1 | |||
| 27 | NSS | --------NOT SOLD SEPARATE GASKET, Fuel Bowl |
|
$0.00 | $0.00 | 1 | |||
| 28 | 811695 | ----BOWL Fuel | ACT |
|
$139.17 | $131.06 | 1 | ||
| 28 | 811693 | ----BOWL Fuel | ACT |
|
$96.25 | $92.58 | 1 | ||
| 29 | NSS | ----------------NOT SOLD SEPARATE FITTING (PART OF 1395-811695) |
|
$0.00 | $0.00 | 1 | |||
| 30 | 808612 | ----SCREW AND WASHER (#8-32 x | ACT | $2.70 | $2.64 | 4 | |||
| 31 | 4215 | ----JET Main Fuel (.066) | ACT |
|
$17.20 | $16.78 | 1 | ||
| 31 | 5225 | ----JET Main (.054) | ACT |
|
$4.10 | $4.00 | 1 | ||
| 32 | 811694 | ----PLUG KIT | ACT |
|
$21.92 | $21.54 | 1 | ||
| 33 | 802731 | --------SEAL (CONSISTS OF 4 SEALS) | ACT |
|
$25.67 | $25.21 | 1 | ||
| 34 | 814776 | SCREW Adjusting (M6 x 55) | ACT | $3.20 | $3.13 | 2 | |||
| 35 | 815784 | CAP | ACT | $1.80 | $1.76 | 1 | |||
| 36 | 823587T02 | COVER Carburetor | 8235871 | SS |
|
$28.00 | $27.50 | 1 | |
| 37 | 4000363 | SCREW (M8 x 100) HEX HEAD CAP | ACT | $5.20 | $5.08 | 2 | |||
| 38 | 8235862 | PLATE Carburetor | 823586 | SS |
|
$39.08 | $38.38 | 1 | |
| 39 | 67748 | ROLLER | ACT | $7.00 | $6.83 | 1 | |||
| - | 8236354 | REPAIR KIT Carburetor | ACT |
|
$64.49 | $62.28 | 1 | ||
| - | 8112231 | GASKET SET Carburetor | ACT | $16.49 | $16.16 | 1 | |||
| - | 822420A94 | GASKET SET | ACT | $74.08 | $71.26 | 1 | |||
| - | 808569T02 | POWERHEAD ASSEMBLY | 808569A97 | SS |
|
$4,314.30 | $3,955.00 | 1 |
