| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

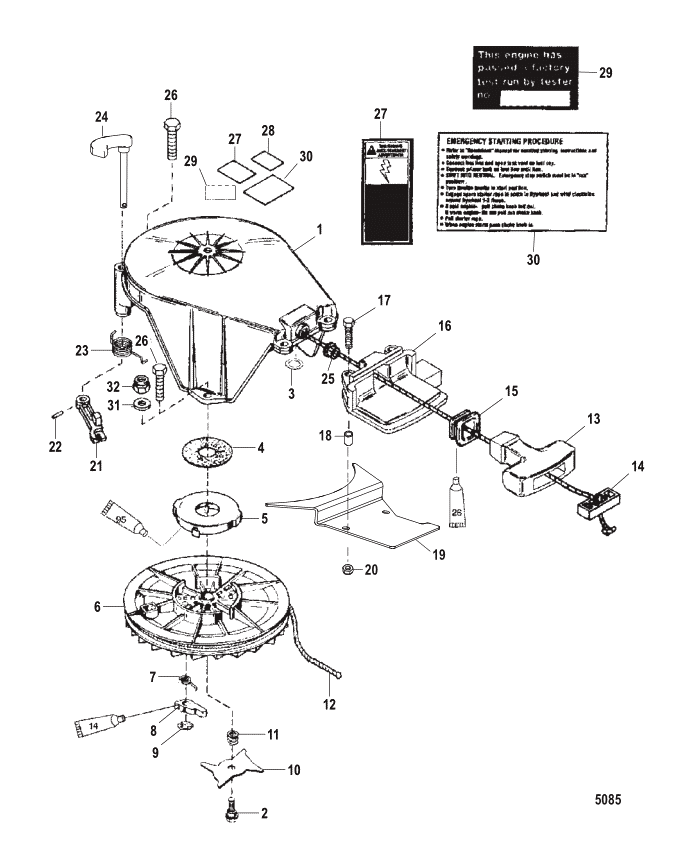

| - | 90906A23 | STARTER ASSEMBLY Recoil | 90906A21 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 90906A23 | STARTER ASSEMBLY Recoil | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 86689A5 | ----HOUSING ASSEMBLY Starter | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 826253 | --------SCREW (.250-20 x .625) | ACT | $4.00 | $3.91 | 1 | |||
| 3 | 818853 | --------RING Retaining | ACT | $1.80 | $1.76 | 1 | |||
| 4 | 833161T | ----FELT PAD | 833161 | SS |
|
$5.20 | $5.08 | 1 | |
| 5 | 86857T01 | ----SPRING | 868571 | SS |
|
$45.17 | $44.35 | 1 | |
| 6 | 825269T01 | ----SHEAVE Starter | 825269A1 | SS |
|
$71.08 | $68.37 | 1 | |
| 7 | 86851T02 | ----SPRING | 868512 | SS |
|
$4.50 | $4.39 | 2 | |
| 8 | 868501 | ----CAM | ACT | $19.00 | $18.66 | 2 | |||
| 9 | 86849T01 | ----RING Retaining | 868491 | SS |
|
$4.80 | $4.69 | 2 | |
| 10 | 86853T01 | ----CAM | 868531 | SS |
|
$8.90 | $8.68 | 1 | |
| 11 | 868523 | ----SPRING | ACT | $7.30 | $7.12 | 1 | |||
| 12 | 12066Q10 | ----ROPE | 12066Q9 | SS |
|
$13.59 | $13.27 | 1 | |
| 13 | 85174A1 | ----HANDLE ASSEMBLY | ACT |
|
$28.26 | $27.74 | 1 | ||
| 14 | NSS | ----------------NOT SOLD SEPARATE Retainer |
|
$0.00 | $0.00 | 1 | |||
| 15 | 44180 | ----BUSHING Rope | ACT | $15.39 | $15.02 | 1 | |||
| 16 | 426264 | ----SUPPORT | ACT | $20.75 | $20.38 | 1 | |||
| 17 | 40019111 | ----SCREW (M5 x 35) | ACT | $1.10 | $1.08 | 2 | |||
| 18 | 309772 | ----SPACER | ACT | $4.80 | $4.69 | 4 | |||
| 19 | 856154T01 | SUPPORT | 856154 | SS |
|
$9.70 | $9.46 | 1 | |
| 20 | 401385 | ----NUT (M5) Stainless Steel | ACT | $4.80 | $4.69 | 2 | |||
| 21 | 93876T02 | ----LEVER Lower | 938762 | SS |
|
$11.30 | $11.02 | 1 | |
| 22 | 38489 | ----PIN Roll | ACT | $5.20 | $5.08 | 1 | |||
| 23 | 823778 | ----SPRING Upper Lock Lever | ACT | $5.41 | $5.27 | 1 | |||
| 24 | 858925 | ----LEVER Upper | 94019 | SS |
|
$41.42 | $40.69 | 1 | |
| 25 | 8M0183792 | ----BUSHING | 42690 | SS |
|
$10.19 | $9.95 | 1 | |
| 26 | 1993735 | ----SCREW (M6 x 35 MM) Non-Seapro/Marathon | NLA |
|
$0.00 | $0.00 | 3 | ||
| 26 | 8M0204741 | SCREW (M6 x 20) Stainless Non-Seapro/Marathon | 40011128 | SS |
|
$4.60 | $4.49 | 2 | |
| 26 | 1993735 | SCREW (M6 x 35 MM) Non-Seapro/Marathon | NLA |
|
$0.00 | $0.00 | |||
| 27 | 8272822 | DECAL Warning High Voltage | ACT | $13.80 | $13.46 | 1 | |||
| 28 | NSS | NOT SOLD SEPARATE Decal-Servicing Referrral |
|
$0.00 | $0.00 | 1 | |||
| 29 | 881865 | DECAL Caution-Start in Gear | ACT |
|
$8.20 | $8.00 | 1 | ||
| 30 | NSS | NOT SOLD SEPARATE Decal-Emergency Start Procedure |
|
$0.00 | $0.00 | 1 | |||
| 31 | 69056 | WASHER (.255 x .620 x .030) Stainless Steel | ACT |
|
$1.80 | $1.76 | 3 | ||
| 32 | 401386 | NUT (M6) | 8268336 | SS |
|
$5.10 | $4.98 | 3 |
