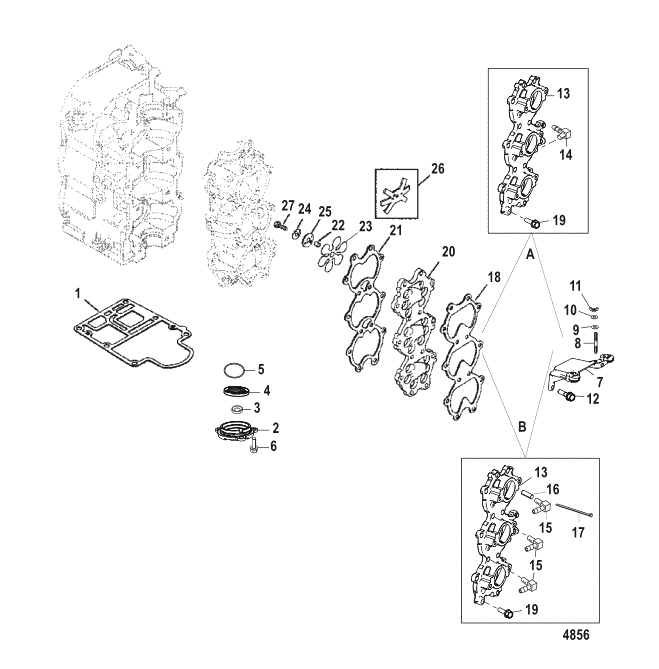

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0000822 | GASKET | 828553 | SS |
|
$18.19 | $17.75 | 1 | |
| 2 | 9812A8 | END CAP ASSEMBLY | ACT |
|
$224.49 | $202.24 | 1 | ||
| 3 | 828932 | ----SEAL Oil | ACT |
|
$12.89 | $12.58 | 1 | ||
| 4 | 41953 | ----SEAL | ACT |
|
$17.49 | $17.19 | 1 | ||
| 5 | 8M0142854 | ----O-RING (2.175 x .175) | 90011 | SS |
|
$1.10 | $1.08 | 1 | |
| 6 | 81742720 | SCREW (M8 x 20) | ACT |
|
$8.99 | $8.78 | 3 | ||
| 7 | 19077A07 | BRACKET ASSEMBLY | 19077T6 | SS |
|
$75.99 | $71.57 | 1 | |
| 8 | 8161949 | ----STUD (M6 x 44) | ACT |
|
$12.19 | $11.90 | 2 | ||
| 9 | 8M0204663 | WASHER (.187 x .500 x .06 | 49221 | SS |
|
$1.20 | $1.18 | 2 | |
| 10 | 69056 | WASHER (.255 x .620 x .030) Stainless Steel | ACT |
|
$1.80 | $1.76 | 2 | ||
| 11 | 816872 | WING NUT | ACT |
|
$2.79 | $2.72 | 2 | ||
| 12 | 82127335 | SCREW (M8 x 35 MM) | ACT |
|
$5.19 | $5.08 | 4 | ||
| 13 | 827998A1 | MANIFOLD ASSEMBLY Induction | ACT |
|
$126.99 | $114.12 | 1 | ||
| 14 | 19725 | ----ELBOW | ACT |
|
$23.49 | $23.00 | 1 | ||
| 15 | 19725 | ----ELBOW | ACT |
|
$23.49 | $23.00 | 3 | ||
| 16 | 15026 | ----CAP | ACT |
|
$4.99 | $4.88 | 1 | ||
| 17 | 816311T | ----TIE STRAP (8.00 Inches) | ACT | $0.60 | $0.59 | 1 | |||
| 18 | 812869 | ----GASKET | ACT |
|
$12.89 | $12.58 | 1 | ||
| 19 | 81742730 | SCREW (M8 x 30) | ACT |
|
$1.10 | $1.08 | 10 | ||
| 20 | 8M0219197 | REED BLOCK ASSEMBLY | 19075A3 | SS |
|
$156.99 | $141.47 | 1 | |
| 21 | 812868 | ----GASKET | ACT |
|
$12.89 | $12.58 | 1 | ||
| 22 | NSS | --------NOT SOLD SEPARATE |
|
$0.00 | $0.00 | 6 | |||
| 23 | 812880A03 | REED ASSEMBLY | 812880A2 | SS |
|
$26.59 | $26.11 | 3 | |
| 24 | 429821 | ----TAB WASHER | ACT |
|
$5.29 | $5.17 | 3 | ||
| 25 | 812879002 | RETAINER Reed | 8128791 | SS |
|
$7.89 | $7.71 | 3 | |
| 26 | 825267 | RETAINER Reed | ACT |
|
$19.19 | $18.73 | 3 | ||
| 27 | 88421471 | SCREW (M6 x 16) | ACT |
|
$1.80 | $1.76 | 3 | ||
| - | 852067T98 | POWERHEAD ASSEMBLY | ACT | $2,998.75 | $2,788.84 | 1 | |||
| - | 828553A97 | GASKET SET | ACT | $91.99 | $86.41 | 1 |
