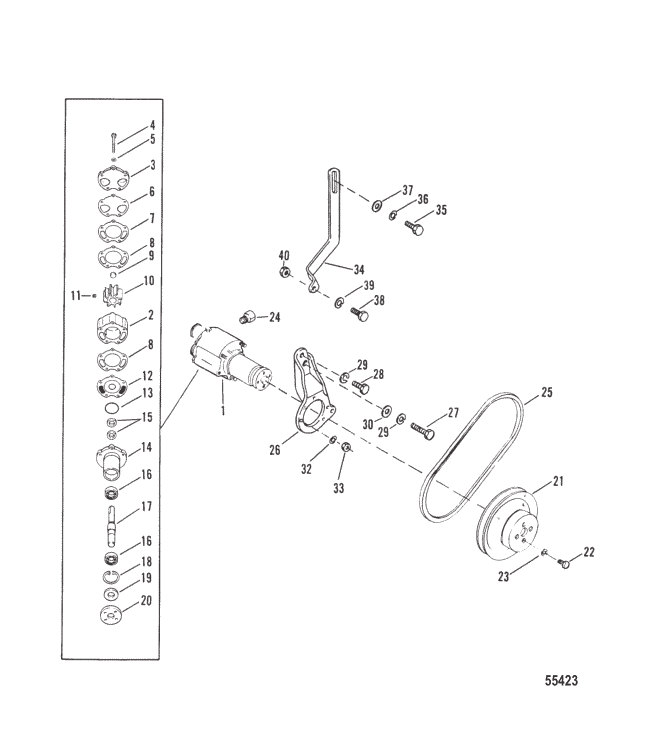

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807151A12 | PUMP ASSEMBLY Sea Water - Complete | 72774A50 | SS |
|
$592.49 | $539.27 | 1 | |
| 2 | 72774A40 | ----BODY ASSEMBLY Sea Water - Complete WATER PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 87631A4 | ----COVER WATER PUMP | 87631A1 | SS |
|
$219.42 | $197.81 | 1 | |
| 4 | 73275 | ----SCREW (.312-18 x 2.88) WATER PUMP (3") | ACT | $1.90 | $1.86 | 2 | |||
| 4 | 99347 | ----SCREW (.312-18 x 3.75) WATER PUMP (3-3/4") | ACT | $17.09 | $16.68 | 3 | |||
| 5 | 20084 | ----WASHER (.328 x .562 x .06 COVER SCREW | ACT | $2.97 | $2.92 | 5 | |||
| 6 | 8052151 | ----GASKET COVER TO OUTER WEAR PLATE | 94915 | SS |
|
$9.59 | $9.37 | 1 | |
| 7 | 94916 | ----WEAR PLATE OUTER | ACT | $27.79 | $27.25 | 1 | |||
| 8 | 94914 | ----GASKET BODY TO WEAR PLATE | ACT | $3.69 | $3.59 | 2 | |||
| 9 | 59504 | ----PLUG IMPELLER | ACT | $13.89 | $13.56 | 1 | |||
| 10 | 59362T1 | ----IMPELLER (USE W/O KEY) | 593621 | SS |
|
$45.99 | $45.09 | 1 | |
| 11 | 8M0032837 | ----KEY IMPELLER DRIVE | 56662 | SS |
|
$5.69 | $5.56 | 1 | |
| 12 | 8M0204674 | ----WEAR PLATE INNER | 94576 | SS |
|
$27.49 | $26.93 | 1 | |
| 13 | 8M0215007 | ----QUAD RING PUMP HOUSING | 94288 | SS |
|
$4.59 | $4.49 | 1 | |
| 14 | 94913A2 | ----HOUSING ASSEMBLY Water Pump | ACT |
|
$388.49 | $349.94 | 1 | ||
| 15 | 90562 | --------SEAL (1.254 x .312) WATER PUMP SHAFT | ACT | $18.89 | $18.50 | 2 | |||
| 16 | 72961 | --------BEARING Ball WATER PUMP SHAFT | ACT | $16.99 | $16.62 | 2 | |||
| 17 | 59501A1 | --------SHAFT WATER PUMP | ACT | $208.99 | $188.19 | 1 | |||
| 18 | 23720 | --------RING Retaining BALL BEARING RETAINING | ACT | $2.99 | $2.92 | 1 | |||
| 19 | 72785 | --------SEAL WATER PUMP SHAFT | ACT | $22.19 | $21.77 | 1 | |||
| 20 | 47530 | ----HUB WATER PUMP PULLEY | ACT | $65.49 | $61.63 | 1 | |||
| 21 | 52822T | PULLEY WATER PUMP (CAST) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 47277 | SCREW (.312-24 x .750) PULLEY (3/4") | ACT | $1.20 | $1.18 | 4 | |||
| 23 | 39107 | LOCKWASHER (.312-24) PULLEY SCREW | ACT | $1.50 | $1.47 | 4 | |||
| 24 | 328022 | PLUG Pipe (.125-27) PIPE (FOR WATER PUMP BODY) | 32802 | SS |
|
$7.59 | $7.42 | 1 | |
| 25 | 13457Q | BELT WATER PUMP (30") | 13457T | SS |
|
$29.49 | $28.89 | 1 | |
| 26 | 15295T | BRACKET WATER PUMP (STAMPED) | ACT | $122.99 | $110.89 | 1 | |||
| 27 | 47461 | SCREW (.437-14 x 1.00) WATER PUMP BRACKET (1") | ACT | $2.29 | $2.24 | 1 | |||
| 28 | 17965 | SCREW (.437-14 x .70) WATER PUMP BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 32993 | LOCKWASHER (.437) BRACKET SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 30 | 27025 | WASHER BRACKET SCREW | ACT | $2.39 | $2.33 | 1 | |||
| 32 | 39107 | LOCKWASHER (.312-24) | ACT | $1.50 | $1.47 | 3 | |||
| 33 | 21908 | NUT (.312-18) Cad Plated | ACT | $3.19 | $3.11 | 3 | |||
| 34 | 15751T | BRACE WATER PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 35 | 47461 | SCREW (.437-14 x 1.00) BRACE TO ENGINE (1") | ACT | $2.29 | $2.24 | 1 | |||
| 36 | 32993 | LOCKWASHER (.437) BRACE SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 37 | 74758 | WASHER BRACE SCREW | 30315 | SS |
|
$17.69 | $17.35 | 1 | |
| 38 | 35786 | SCREW (.375-24 x 1.00) WATER PUMP BRACE (1") | ACT | $0.80 | $0.79 | 1 | |||
| 39 | 35048 | LOCKWASHER (.375) BRACE SCREW | ACT | $1.20 | $1.18 | 1 | |||
| 40 | 46335 | NUT (.375-24) BRACE SCREW | ACT | $2.97 | $2.92 | 1 |
