| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

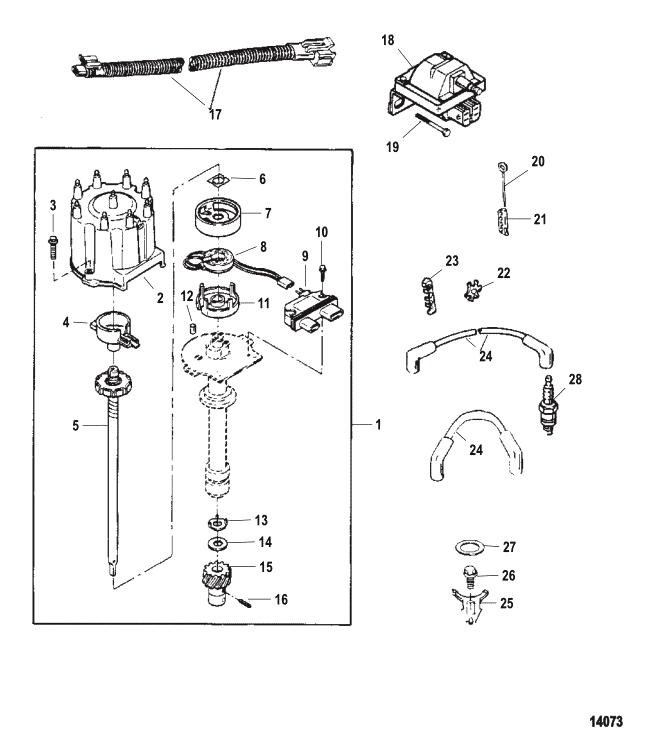

| 1 | 805222A1 | DISTRIBUTOR ASSEMBLY | ACT |
|
$1,105.50 | $1,013.44 | 1 | ||
| 2 | 808483T3 | ----CAP Distributor | ACT | $45.99 | $45.07 | 1 | |||
| 3 | 808491 | ----SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 8M6001253 | ----ROTOR | 8084841 | SS |
|
$17.79 | $17.42 | 1 | |
| 5 | 808485T | ----SHAFT ASSEMBLY Main | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 808487 | ----RETAINER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | NSS | --------NOT SOLD SEPARATE Shield |
|
$0.00 | $0.00 | 1 | |||
| 8 | 811639T | ----COIL | ACT | $41.99 | $41.17 | 1 | |||
| 9 | 8M6008208 | ----MODULE | 811637T | SS |
|
$262.92 | $247.59 | 1 | |
| 10 | 811638 | ----SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 811641 | ----POLE PIECE | ACT | $43.08 | $42.29 | 1 | |||
| 12 | 808488 | ----PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 46350 | ----WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 808489 | ----WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 808490 | ----GEAR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 34109 | ----PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 817376T01 | HARNESS ASSEMBLY Distributor Module to Ignition Coil | 817376T | REP |
|
$90.25 | $86.81 | 1 | |
| 18 | 898253T27 | COIL | 817378 | SS |
|
$209.99 | $197.68 | 1 | |
| 19 | 805189 | SCREW (.375-16 x .750) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 20 | 90096A1 | STUD ASSEMBLY (#10-32 x Special) | ACT |
|
$15.60 | $15.22 | 2 | ||
| 21 | 72821 | ----RETAINER | ACT | $5.50 | $5.37 | 2 | |||
| 22 | 54676 | RETAINER Two Wire | ACT | $5.20 | $5.08 | 2 | |||
| 23 | 32783 | RETAINER Three Wire | ACT | $4.10 | $4.00 | 2 | |||
| 24 | 847701Q17 | CABLE KIT Ignition (SPARK PLUGS & COIL) (BLUE) | 847701A17 | SS |
|
$118.49 | $111.15 | 1 | |
| 24 | 816608Q68 | CABLE KIT Ignition (SPARK PLUGS & COIL) | 816608A68 | SS |
|
$101.99 | $96.14 | 1 | |
| 25 | 88731 | CLAMP | ACT | $10.00 | $9.76 | 1 | |||
| 26 | 805559 | SCREW (.375-16 x .875) Stainless Steel | ACT | $10.30 | $10.05 | 1 | |||
| 27 | 344863 | GASKET | ACT |
|
$2.70 | $2.64 | 1 | ||
| 28 | 8M0204752 | SPARK PLUG Platinum Tip (NGK BR6FVX) | 803991 | REP |
|
$7.79 | $7.61 | 8 | |
| 28 | 8M0204752 | SPARK PLUG (NGK BR6FS) | 59571 | SS |
|
$7.79 | $7.61 | 8 | |
| - | 811572A94 | GASKET SET Overhaul (454) | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 805396A92 | GASKET SET Overhaul (8.2L) | NLA |
|
$0.00 | $0.00 | 1 |
