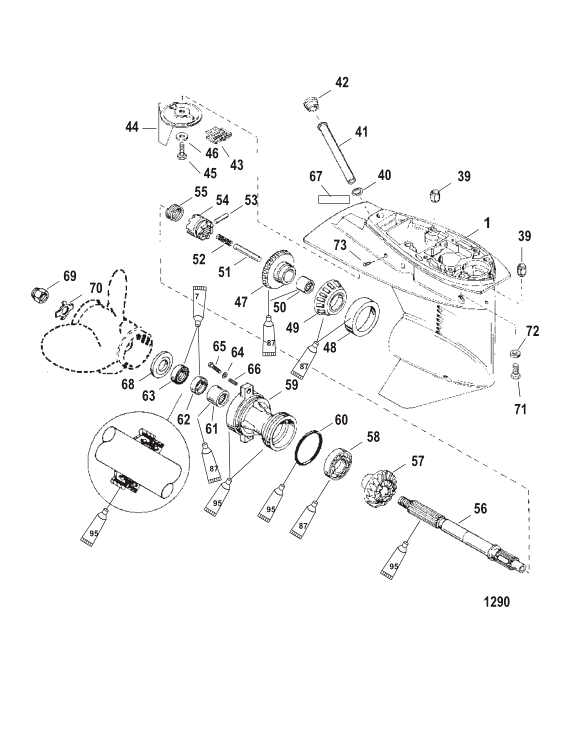

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 821306T30 | GEAR HOUSING ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 821306T32 | GEAR HOUSING ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 821306T12 | ----GEAR HOUSING ASSEMBLY Basic | ACT | $1,067.57 | $978.67 | 1 | |||
| 39 | 821327 | ----PIN Dowel | ACT | $3.60 | $3.52 | 2 | |||
| 40 | 823942 | ----GASKET | ACT | $1.80 | $1.76 | 1 | |||
| 41 | 8M0026108 | ----TUBE | 821828 | SS |
|
$24.25 | $23.82 | 1 | |
| 42 | 824928001 | ----PLUG Rubber | 824928 | SS |
|
$5.50 | $5.37 | 1 | |
| 42 | 824928001 | ----PLUG Rubber | ACT |
|
$5.50 | $5.37 | 1 | ||
| 43 | 821829 | ----SCREEN | ACT | $12.79 | $12.49 | 1 | |||
| 44 | 822157T2 | ----TRIM TAB | ACT | $49.67 | $48.98 | 1 | |||
| 45 | 82497020 | ----SCREW (M8 x 20) | ACT | $3.80 | $3.71 | 1 | |||
| 46 | 72397 | ----WASHER | ACT | $5.30 | $5.17 | 1 | |||
| 47 | 833000A2 | ----GEAR ASSEMBLY Forward (29 TEETH) | ACT |
|
$585.64 | $550.98 | 1 | ||
| 48 | 8M0103470 | --------BEARING ASSEMBLY Roller | 99328A1 | SS |
|
$46.00 | $45.17 | 1 | |
| 49 | NSS | ------------------------NOT SOLD SEPARATE Cup |
|
$0.00 | $0.00 | 1 | |||
| 50 | 41326 | --------BEARING Roller | ACT | $19.75 | $19.40 | 1 | |||
| 51 | 821578 | ----FOLLOWER Cam | ACT | $29.00 | $28.48 | 1 | |||
| 52 | 8261991 | ----SPRING | ACT | $4.10 | $4.00 | 1 | |||
| 53 | 8M0020999 | ----PIN | 85093 | SS |
|
$8.70 | $8.49 | 1 | |
| 54 | 821314T | ----CLUTCH | ACT | $117.83 | $110.97 | 1 | |||
| 55 | 38114 | ----SPRING | ACT | $4.50 | $4.39 | 1 | |||
| 56 | 8M0140441 | ----PROPELLER SHAFT | 8215772 | SS |
|
$500.86 | $471.21 | 1 | |
| 57 | 833001T | ----GEAR Reverse (29 TEETH) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 58 | 20839T | ----BEARING Ball | ACT | $79.92 | $76.87 | 1 | |||
| 59 | 8M0168900 | ----CARRIER ASSEMBLY Bearing | 19291A3 | SS |
|
$311.25 | $293.11 | 1 | |
| 60 | 815460 | --------O-RING | ACT |
|
$3.00 | $2.93 | 1 | ||
| 61 | 21700 | --------BEARING Needle | ACT | $19.30 | $18.82 | 1 | |||
| 62 | 8M0205511 | --------SEAL Oil | 69188 | SS |
|
$19.30 | $18.82 | 1 | |
| 63 | 8M0203757 | --------SEAL Oil | 69189 | SS |
|
$19.08 | $18.74 | 1 | |
| 64 | 855941 | ----WASHER (.323 x .590 x .112) Stainless Steel | ACT | $1.50 | $1.47 | 2 | |||
| 65 | 85594030 | ----SCREW (M8 x 30) | ACT | $3.00 | $2.93 | 2 | |||
| 66 | 8227731 | ----INSERT Threaded | ACT | $4.60 | $4.49 | 2 | |||
| 67 | NSS | NOT SOLD SEPARATE Decal (2.42:1)(12 x 29) |
|
$0.00 | $0.00 | 1 | |||
| 68 | 73345A1 | THRUST WASHER | ACT | $17.34 | $17.02 | 1 | |||
| 69 | 69578Q1 | PROP NUT KIT | ACT |
|
$15.92 | $15.63 | 1 | ||
| 70 | 8M0214942 | ----TAB WASHER | 76281 | SS |
|
$5.80 | $5.70 | 1 | |
| 71 | 4000380 | SCREW (M10 x 45) | ACT | $5.30 | $5.17 | 4 | |||
| 72 | 8M0214963 | WASHER (.406 x .750 x .10 | 856774 | SS |
|
$2.60 | $2.54 | 4 | |
| 73 | 95925 | PLUG | ACT | $5.20 | $5.08 | 1 | |||
| - | 823547A03 | SEAL KIT Gear Housing | ACT | $124.83 | $117.56 | 1 |
