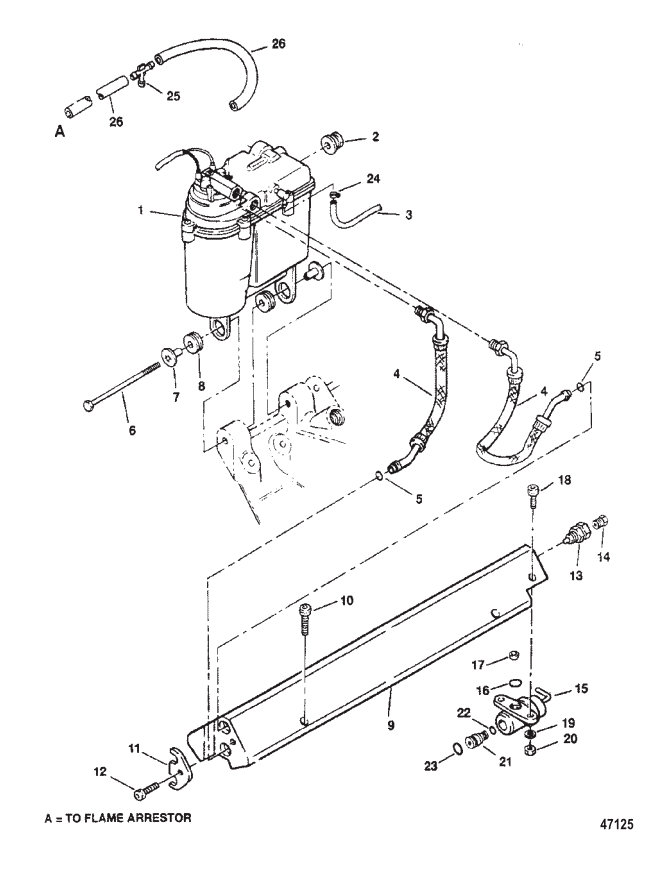

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806787A3 | TANK ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 880331 | GROMMET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 80568932 | HOSE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 805435A1 | LINE ASSEMBLY Fuel | NLA |
|
$0.00 | $0.00 | 2 | ||
| 5 | 805970 | O-RING | ACT |
|
$3.60 | $3.52 | 2 | ||
| 6 | 805392 | SCREW (1/4-20 x 5.0) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 19064 | BUSHING | ACT | $19.58 | $19.23 | 2 | |||
| 8 | 88033 | GROMMET | NLA |
|
$0.00 | $0.00 | 2 | ||
| 9 | 805405T | FUEL RAIL | ACT | $131.75 | $124.07 | 1 | |||
| 10 | 805698 | SCREW (1/4-20 x 1.75) | NLA |
|
$0.00 | $0.00 | 4 | ||
| 11 | 805437 | CLIP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 805557 | SCREW (5/16-18 x .50) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 805408 | VALVE Rail Pressure Service | ACT | $34.58 | $33.96 | 1 | |||
| 14 | 8M0046566 | CAP Shrader Valve - Brass | 805515 | REP |
|
$4.70 | $4.59 | 1 | |
| 15 | 805227A1 | REGULATOR ASSEMBLY Fuel Pressure | ACT |
|
$147.75 | $139.14 | 1 | ||
| 16 | 805531 | ----O-RING (.476 x .075) | ACT |
|
$5.60 | $5.47 | 1 | ||
| 17 | 805406 | ----FILTER | ACT | $6.90 | $6.73 | 1 | |||
| 18 | 852368 | SCREW (#10-24 x .750) | 56682 | SS |
|
$1.70 | $1.66 | 2 | |
| 19 | 89302 | WASHER (.203 x .406 x .04 | ACT | $1.80 | $1.76 | 2 | |||
| 20 | 805562 | NUT (#10-24) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 805514A1 | FITTING ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 805553 | ----O-RING | ACT |
|
$5.20 | $5.08 | 1 | ||
| 23 | 805407 | ----O-RING (.346 x .075) | ACT |
|
$3.20 | $3.13 | 1 | ||
| 24 | 815504105 | CLAMP Worm Gear (11-18 mm) | ACT | $4.06 | $3.96 | 2 | |||
| 25 | 806689 | FITTING Tee | ACT | $1.80 | $1.76 | 1 | |||
| 26 | 7381567 | TUBING (42.00 Inches Bulk) | ACT | $30.99 | $30.36 | 2 | |||
| - | 805396A95 | GASKET SET | NLA |
|
$0.00 | $0.00 | 1 |
