| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

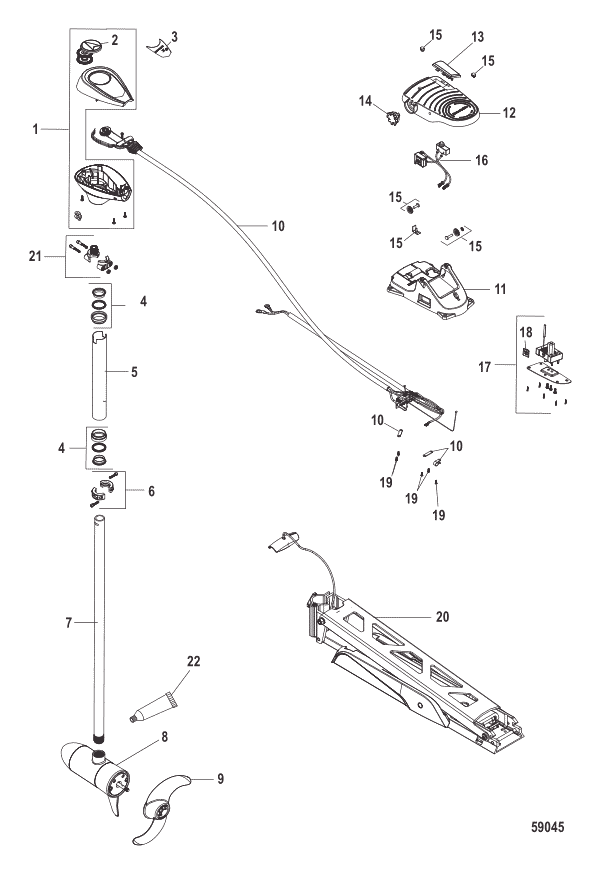

| 1 | 8M0103990 | HEAD ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 8M0103989 | ----TOP COVER INDICATOR KIT | ACT | $52.99 | $51.80 | 1 | |||
| 3 | 8M0109998 | DECAL SET | ACT | $31.99 | $31.72 | 1 | |||
| 4 | 8M0109999 | BEARING ASSEMBLY | ACT | $132.99 | $128.25 | 2 | |||
| 5 | 8M0089416 | TUBE | ACT | $36.74 | $36.30 | 1 | |||
| 5 | 8M0110005 | TUBE XL | ACT | $52.79 | $51.36 | 1 | |||
| 6 | 8M0089412 | CLAMP ASSEMBLY | ACT | $10.52 | $10.36 | 1 | |||
| 7 | 8M0111093 | COLUMN 36 Inch | ACT | $92.99 | $90.81 | 1 | |||
| 7 | 8M0111094 | COLUMN 45 Inch | ACT | $89.99 | $87.62 | 1 | |||
| 7 | 8M0111095 | COLUMN 50 Inch | ACT | $99.99 | $97.89 | 1 | |||
| 7 | 8M0111096 | COLUMN 60 Inch | ACT | $109.99 | $106.14 | 1 | |||
| 8 | 8M0096746 | LOWER UNIT ASSEMBLY 55#, Fresh Water | ACT | $219.99 | $211.64 | 1 | |||
| 8 | 8M0096747 | LOWER UNIT ASSEMBLY 55#, Fresh Water, Sonar | ACT | $329.99 | $317.14 | 1 | |||
| 8 | 8M0096755 | LOWER UNIT ASSEMBLY 80#, Fresh Water | ACT | $274.99 | $263.61 | 1 | |||
| 8 | 8M0096756 | LOWER UNIT ASSEMBLY 80#, Fresh Water, Sonar | ACT | $374.99 | $361.89 | 1 | |||
| 8 | 8M0096758 | LOWER UNIT ASSEMBLY 105#, Fresh Water | ACT | $329.99 | $317.14 | 1 | |||
| 8 | 8M0096759 | LOWER UNIT ASSEMBLY 105#, Fresh Water, Sonar | ACT | $409.99 | $394.22 | 1 | |||
| 9 | 8M0028330 | PROP KIT Black, Safari | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 8M0103991 | HARNESS ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 8M0110002 | HARNESS ASSEMBLY XL | ACT | $49.99 | $49.56 | 1 | |||
| 10 | 8M0110001 | HARNESS ASSEMBLY Sonar | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 8M0110003 | HARNESS ASSEMBLY Sonar XL | ACT |
|
$119.99 | $115.62 | 1 | ||
| - | 8M0122083 | ----CABLE KIT, Steering | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 8M0122084 | ----CABLE KIT, Steering XL | ACT | $20.99 | $20.77 | 1 | |||
| 11 | 8M0138684 | PEDEL KIT | 8M0089421 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 12 | NSS | --------NOT SOLD SEPARATE TREAD |
|
$0.00 | $0.00 | 1 | |||
| 13 | 8M0089422 | BUTTON KIT | ACT |
|
$4.19 | $4.17 | 1 | ||
| 14 | NSS | --------NOT SOLD SEPARATE SPEED KNOB |
|
$0.00 | $0.00 | 1 | |||
| 15 | 8M0089417 | HARDWARE KIT | ACT | $4.99 | $4.93 | 1 | |||
| 16 | 8M0103993 | HARNESS ASSEMBLY | ACT | $59.99 | $58.43 | 1 | |||
| 17 | 8M0103995 | BOARD ASSEMBLY 12 Volt | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 8M0103997 | BOARD ASSEMBLY 24 Volt | 8M0114173 | NLA |
|
$0.00 | $0.00 | 1 | |
| 17 | 8M0103997 | BOARD ASSEMBLY 36 Volt | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 8M0103992 | ----BUTTON | ACT | $3.99 | $3.93 | 1 | |||
| 19 | 8M0089418 | SCREW KIT | ACT | $4.19 | $4.11 | 1 | |||
| 20 | 8M0116497 | BOW MOUNT FW Use With 59 Inch or Shorter Shaft | 8M3003299 | SS |
|
$299.99 | $286.75 | 1 | |
| 20 | 8M0131206 | BOW MOUNT SW Use With 59 Inch or Shorter Shaft | ACT | $520.99 | $497.38 | 1 | |||
| 20 | 8M0116498 | BOW MOUNT FW, XL Use With 60 Inch or Greater Shaft | 8M3003314 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 20 | 8M0131207 | BOW MOUNT SW, XL Use With 60 Inch or Greater Shaft | ACT | $535.99 | $511.83 | 1 | |||
| 21 | 8M0089413 | PINION ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 8M0119628 | HYSOL EPOXY ADHESIVE 50ml | ACT | $44.99 | $44.17 | 1 |
