| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

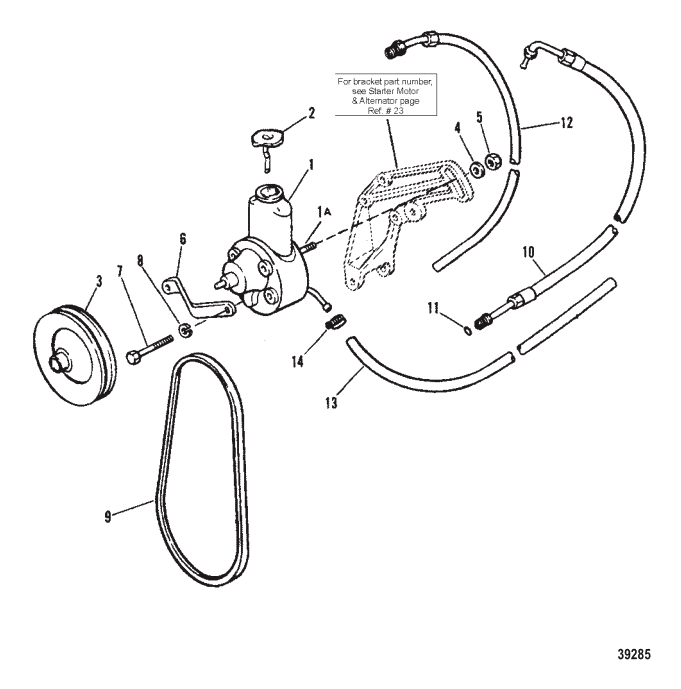

| 1 | 16792A39 | PUMP ASSEMBLY POWER STEERING | 90496A5 | SS |
|
$957.14 | $900.49 | 1 | |
| 1A | 41877 | ----STUD (M10) POWER STEERING PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 95805 | ----CAP PWER STEERING PUMP | ACT | $29.42 | $28.89 | 1 | |||
| 3 | 73873A1 | ----PULLEY POWER STEERING PUMP | ACT | $221.25 | $208.36 | 1 | |||
| 4 | 34567 | WASHER PUMP STUD (BRACE SLOT) | ACT | $1.50 | $1.47 | 1 | |||
| 5 | 90517 | NUT (M10) MOUNTING STUD | ACT | $2.70 | $2.64 | 2 | |||
| 6 | 98644A1 | BRACE PUMP MOUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 40001189 | SCREW (M10 x 20) PUMP MOUNTING BRACE | 40001188 | REP |
|
$5.41 | $5.27 | 1 | |
| 8 | 400248 | LOCKWASHER (M10) BRACE SCREW | ACT | $1.70 | $1.66 | 1 | |||
| 9 | 37619Q | V BELT POWER STEERING PUMP (52") | 37619 | SS |
|
$43.75 | $42.96 | 1 | |
| 10 | 90494 | HOSE PRESSURE (FITTING ON BOTH ENDS)" | ACT | $196.92 | $185.44 | 1 | |||
| 10 | 986291 | HOSE (136.00 Inches Bulk) PRESSURE (FITTINGS/BOTH ENDS) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 89879 | ----O-RING (.301 x .064) PRESSURE HOSE END | ACT | $1.60 | $1.57 | 1 | |||
| 12 | 9884339 | HOSE ASSEMBLY (72.00 Inches Bulk) RETURN (FITTINGS ON ONE END) | ACT | $97.92 | $94.18 | 1 | |||
| 12 | 986241 | HOSE (133.00 Inches Bulk) RETURN (FITTINGS ON ONE END) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 8M0062341 | HOSE (53.00 Inches Bulk) PUMP TO OIL COOLER | 5251914 | SS |
|
$55.00 | $52.90 | 1 | |
| 14 | 815504206 | CLAMP HOSE ATTACHING | 35830 | SS |
|
$6.80 | $6.64 | 3 |
