| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

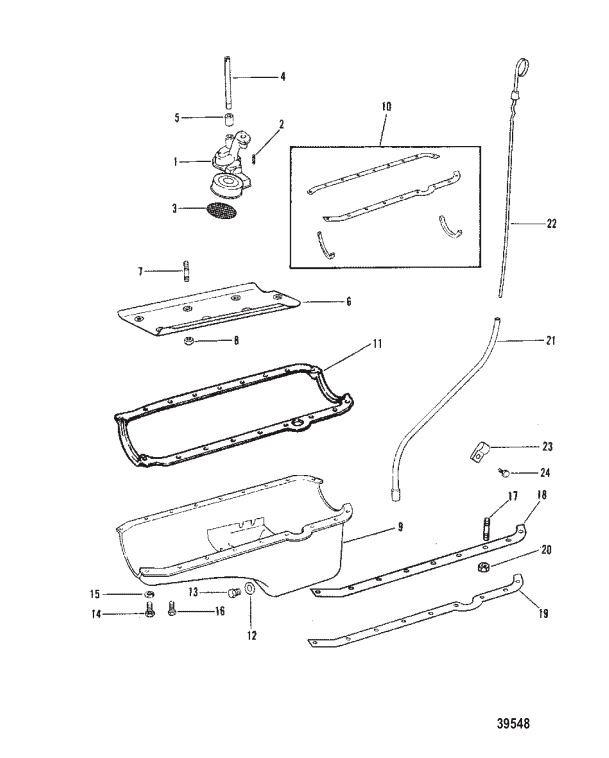

| 1 | 17617 | PUMP ASSEMBLY Oil | 35352 | SS |
|
$98.67 | $94.90 | 1 | |
| 3 | 35354 | SCREEN ASSEMBLY OIL PUMP (228-230) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 72645 | SCREEN ASSEMBLY OIL PUMP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 36184 | SHAFT OIL PUMP TO DISTRIBUTOR | ACT | $27.83 | $27.33 | 1 | |||
| 5 | 36183 | RETAINER OIL PUMP SHAFT | ACT | $5.50 | $5.37 | 1 | |||
| 6 | 986021 | BAFFLE OIL PAN | 98602 | SS |
|
$29.67 | $29.13 | 1 | |
| 7 | 54790 | STUD OIL PAN BAFFLE | ACT |
|
$31.83 | $31.26 | 5 | ||
| 8 | 37500 | NUT (3/8-16) OIL PAN BAFFLE STUD | ACT |
|
$4.60 | $4.49 | 5 | ||
| 9 | 93476 | PAN Oil | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 94130 | PAN Oil | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 8M0150300 | PAN Oil | 14259 | SS |
|
$458.86 | $438.60 | 1 | |
| 9 | 14255 | PAN Oil | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 90458A1 | GASKET SET OIL PAN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 8M0150304 | GASKET OIL PAN | 13865 | SS |
|
$196.83 | $185.36 | 1 | |
| 12 | 8M0077608 | GASKET DRAIN SCREW | 49955 | SS |
|
$15.81 | $15.41 | 1 | |
| 13 | 49956 | SCREW Drain OIL PAN DRAIN | ACT | $23.08 | $22.67 | 1 | |||
| 14 | 72644 | SCREW (5/16-18 x 7/8) OIL PAN (5/16-18 X 7/8") | NLA |
|
$0.00 | $0.00 | 4 | ||
| 15 | 39107 | LOCKWASHER (.312-24) OIL PAN SCREW | ACT |
|
$1.50 | $1.47 | 4 | ||
| 16 | 8M0040582 | SCREW OIL PAN | 35366 | SS |
|
$18.60 | $18.14 | 14 | |
| 16 | 14070 | SCREW (.250-20 x .625) OIL PAN | ACT |
|
$13.21 | $12.88 | 14 | ||
| 17 | 11989 | STUD (.312-18 x 1.6718) OIL PAN | ACT |
|
$15.39 | $15.02 | 4 | ||
| 18 | 13277 | REINFORCEMENT OIL PAN (PORT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 14257 | REINFORCEMENT OIL PAN (PORT) | ACT |
|
$36.33 | $35.68 | 1 | ||
| 19 | 13276 | REINFORCEMENT OIL PAN (STBD.) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 14256 | REINFORCEMENT OIL PAN (STBD.) | ACT |
|
$34.42 | $33.80 | 1 | ||
| 20 | 8M0148822 | NUT (.312-18) OIL PAN STUD | 11971 | SS |
|
$16.70 | $16.29 | 4 | |
| 21 | 92163A2 | TUBE OIL LEVEL GAUGE | ACT | $217.17 | $204.51 | 1 | |||
| 22 | 96418A1 | GAUGE OIL LEVEL (DIPSTICK) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 96418A1 | GAUGE OIL LEVEL (DIPSTICK) | 96822A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 23 | 92084 | CLIP OIL LEVEL TUBE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 98253 | SCREW (.250-20 x .500) CLIP TO CYLINDER BLOCK | ACT | $1.10 | $1.08 | 1 | |||
| - | 75611A86 | GASKET SET | NLA |
|
$0.00 | $0.00 | 1 |
