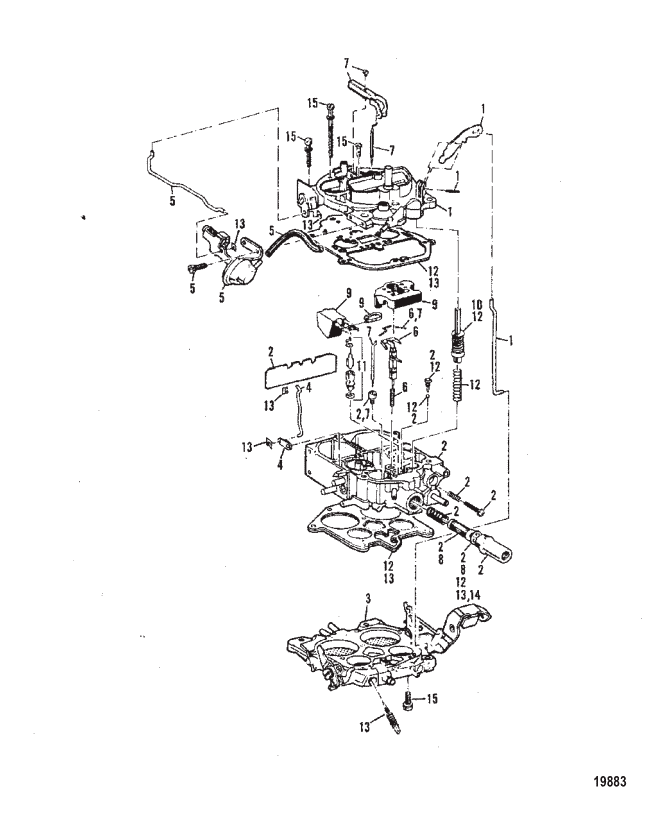

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 816373A4 | CARBURETOR ASSEMBLY | 9662A4 | SS/NLA |  | $729.86 | $672.62 | 1 | |
| - | 9661A3 | CARBURETOR ASSEMBLY | NLA | | $877.80 | $808.97 | 1 | ||
| 1 | 8752 | ----AIR HORN KIT | NLA | | $127.37 | $119.95 | 1 | ||
| 1 | 8574 | ----AIR HORN KIT | NLA | | $144.17 | $135.77 | 1 | ||
| 2 | 8753 | ----FLOAT BOWL KIT | NLA | | $289.54 | $272.64 | 1 | ||
| 2 | 8750 | ----FLOAT BOWL KIT | NLA | | $289.54 | $272.64 | 1 | ||
| 3 | 8540 | ----THROTTLE BODY KIT | NLA | | $191.63 | $180.40 | 1 | ||
| 4 | 8541 | ----LINK/LEVER KIT Choke | NLA | | $6.41 | $6.27 | 1 | ||
| 5 | 8582 | ----PRIMARY VACUUM KIT | NLA | | $55.77 | $53.64 | 1 | ||
| 6 | 8543T | ----PISTON KIT | 8543 | SS | | $35.83 | $35.19 | 1 | |
| 7 | 8583 | ----METERING JET AND ROD KIT | 8754 | SS/NLA | | $42.55 | $41.48 | 1 | |
| 7 | 8583 | ----METERING JET AND ROD KIT | 8751 | SS/NLA | | $42.55 | $41.48 | 1 | |
| 8 | 8767Q | ----FILTER KIT Fuel | 8545 | SS | | $15.19 | $14.83 | 1 | |
| 9 | 8546T | ----FLOAT KIT | 8546 | SS/NLA | | $35.78 | $35.14 | 1 | |
| 10 | 823426A1 | ----PUMP KIT | 8547 | SS | | $41.99 | $41.09 | 1 | |
| 11 | 823426A1 | ----NEEDLE/SEAT KIT | 8548 | REP | | $41.99 | $41.09 | 1 | |
| 12 | 823426A1 | ----REPAIR KIT Carburetor | 8535 | SS | | $41.99 | $41.09 | 1 | |
| 13 | 823426A1 | --------GASKET KIT | 8536 | SS | | $41.99 | $41.09 | 1 | |
| 14 | 8327 | ------------GASKET INLET FILTER NUT | NLA | | $6.20 | $6.05 | 1 | ||
| 15 | 8557 | ----SCREW KIT AIR HORN/THROTTLE BODY | NLA | | $10.97 | $10.77 | 1 | ||
| - | 524572 | GASKET | 524571 | SS | | $5.30 | $5.17 | 1 |
