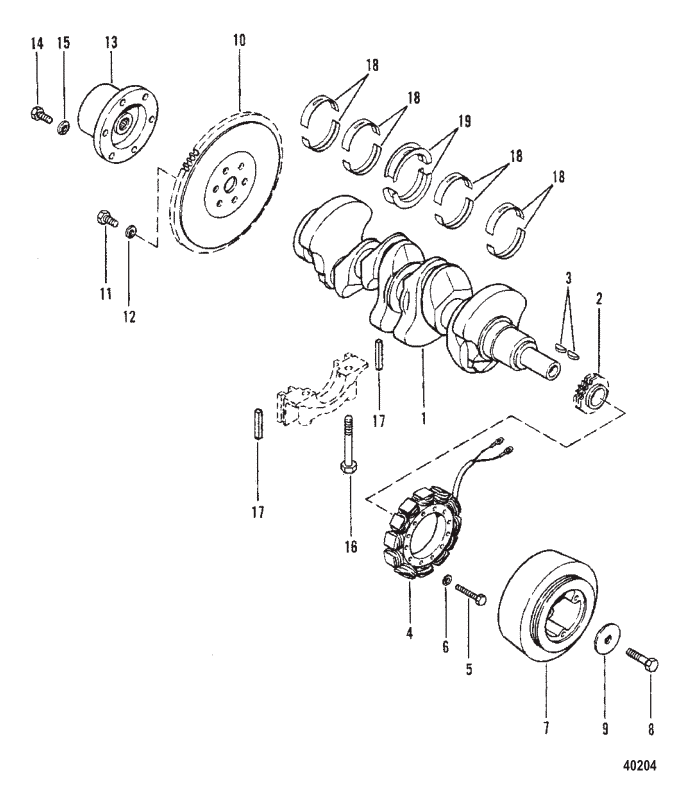

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 6092A1 | CRANKSHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 68700 | SPROCKET CRANKSHAFT | 68700A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 3 | 67382 | KEY SPROCKET AND ALTERNATOR | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 6231A10 | STATOR ASSEMBLY ALTERNATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 77363 | SCREW (#10-24 x 1.50) STRATOR TO FRONT COVER | NLA |
|
$0.00 | $0.00 | 5 | ||
| 6 | 26996 | LOCKWASHER (#10) Stainles | ACT | $1.20 | $1.18 | 5 | |||
| 7 | 93009A06 | ALTERNATOR ASSEMBLY Flywheel FLYWHEEL | 93009A5 | SS |
|
$623.36 | $586.46 | 1 | |
| 8 | 59644 | SCREW (.500-20 x 1.380) ALTERNATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 36103 | WASHER (Steel, 1.75 Inch ALTERNATOR SCREW | ACT | $4.00 | $3.91 | 1 | |||
| 10 | 9741A2 | FLYWHEEL | 8468A2 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 11 | 8M0214958 | SCREW (.437-20 x 1.00) FLYWHEEL TO CRANKSHAFT | 49845 | SS |
|
$5.90 | $5.76 | 6 | |
| 12 | 39131 | LOCKWASHER (.437) FLYWHEEL SCREW | ACT | $1.00 | $0.98 | 6 | |||
| 13 | 97432A2 | COUPLING ASSEMBLY ENGINE | ACT | $722.00 | $679.26 | 1 | |||
| 14 | 37612 | SCREW (.375-16 x 1.250) COUPLING TO FLYWHEEL | ACT | $2.50 | $2.44 | 6 | |||
| 15 | 35048 | LOCKWASHER (.375) COUPLING SCREW | ACT | $1.20 | $1.18 | 6 | |||
| 16 | 74335 | SCREW (.500-13 x 4.00) MAIN BEARING CAPS | NLA |
|
$0.00 | $0.00 | 10 | ||
| 17 | 98421A1 | SEAL REAR BEARING CAP | ACT | $29.17 | $28.64 | 1 | |||
| 18 | 853849 | BEARING ASSEMBLY Main (STANDARD) | 74313A1 | NLA |
|
$0.00 | $0.00 | 4 | |
| 18 | 74313A2 | BEARING ASSEMBLY Main (.002 U.S.) | NLA |
|
$0.00 | $0.00 | AR | ||
| 18 | 853851 | BEARING ASSEMBLY Main (.010 U.S. | 74313A4 | NLA |
|
$0.00 | $0.00 | AR | |
| 18 | 74313A3 | BEARING ASSEMBLY Main (.020 U.S.) | NLA |
|
$0.00 | $0.00 | AR | ||
| 19 | 853849 | BEARING ASSEMBLY Center Main (STANDARD) | 74314A1 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 19 | 15103A2 | BEARING ASSEMBLY Center Main (.002 U.S.) | 74314A2 | SS/NLA |
|
$0.00 | $0.00 | AR | |
| 19 | 853851 | BEARING ASSEMBLY Center Main (.010 U.S.) | 74314A4 | SS/NLA |
|
$0.00 | $0.00 | AR | |
| 19 | 853852 | BEARING ASSEMBLY Center Main (.020 U.S.) | 74314A3 | SS/NLA |
|
$0.00 | $0.00 | AR |
