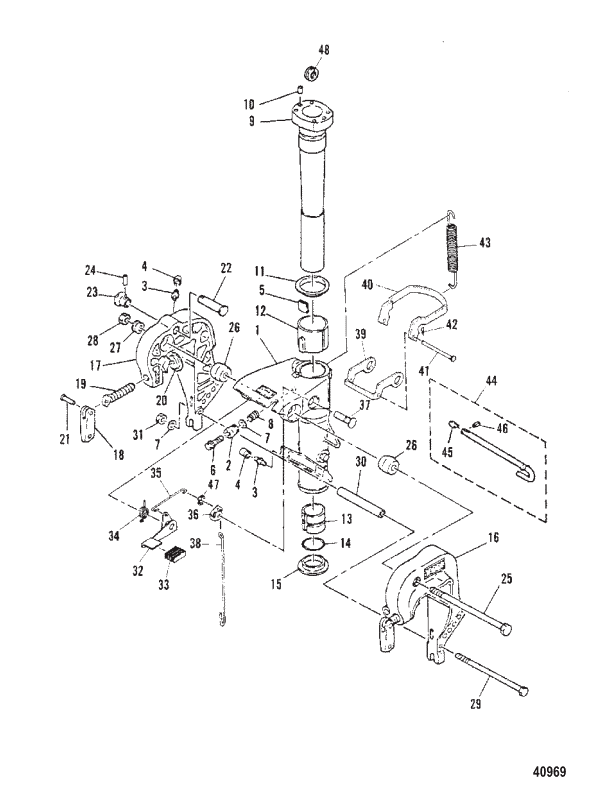

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7855M | BRACKET SWIVEL | NLA |  | $126.74 | $119.37 | 1 | ||
| 2 | 84832M | SEAL RUBBER | NLA | | $2.78 | $2.71 | 1 | ||
| 3 | 82369M | FITTING GREASE | ACT | $5.30 | $5.17 | 2 | |||
| 4 | 81439M | CAP GREASE NIPPLE | NLA | | $6.62 | $6.46 | 2 | ||
| 5 | 80633M | PLATE FRICTION | NLA | | $8.24 | $8.06 | 1 | ||
| 6 | 81754M | SCREW | NLA | | $7.19 | $7.02 | 1 | ||
| 7 | 82217M | WASHER | NLA | | $3.45 | $3.36 | 2 | ||
| 8 | 82088M | SPRING | NLA | | $1.94 | $1.90 | 1 | ||
| 9 | 84833M | SHAFT STEERING PIVOT | NLA | | $92.02 | $88.52 | 1 | ||
| 10 | 82368M | PIN | NLA | | $1.69 | $1.65 | 2 | ||
| 11 | 81873M | WASHER | NLA | | $5.75 | $5.62 | 1 | ||
| 12 | 81964M | BUSHING | ACT | $19.58 | $19.23 | 1 | |||
| 13 | 81961M | BUSHING | NLA | | $13.67 | $13.34 | 1 | ||
| 14 | 82274M | O-RING | NLA | | $2.73 | $2.66 | 1 | ||
| 15 | 81959M | BUSHING | NLA | | $6.73 | $6.58 | 1 | ||
| 16 | 7847M | BRACKET | NLA | | $68.09 | $65.50 | 1 | ||
| 17 | 7848M | BRACKET | NLA | | $54.60 | $52.54 | 1 | ||
| 18 | 809959M | HANDLE TRANSOM CLAMP | 80048M | SS/NLA | | $20.87 | $20.49 | 2 | |
| 19 | 81756M | SCREW | ACT | $43.00 | $42.23 | 2 | |||
| 20 | 80638M | PAD TRANSOM CLAMP | NLA | | $15.24 | $14.86 | 2 | ||
| 21 | 81888M | PIN | NLA | | $4.61 | $4.49 | 2 | ||
| 22 | 84835M | SHAFT STOPPER | NLA | | $9.05 | $8.89 | 1 | ||
| 23 | 95650M | KNOB STOPPER | 84836M | SS/NLA | | $5.92 | $5.81 | 1 | |
| 24 | 82148M | PIN SPRING | NLA | | $4.00 | $3.91 | 1 | ||
| 25 | 84834M | BOLT | NLA | | $15.96 | $15.59 | 1 | ||
| 26 | 80639M | MOUNT FRICTION | NLA | | $6.74 | $6.62 | 2 | ||
| 27 | 82101M | SPRING | NLA | | $8.38 | $8.18 | 1 | ||
| 28 | 82395M | NUT | NLA | | $3.78 | $3.69 | 1 | ||
| 29 | 19108M | SPACER | 81979M | SS/NLA | | $11.51 | $11.22 | 1 | |
| 30 | 82382M | NUT | 82392M | SS/NLA | | $3.90 | $3.81 | 1 | |
| 31 | 80646M | LEVER | NLA | | $15.86 | $15.57 | 1 | ||
| 32 | 80646M | LEVER TILT | NLA | | $15.86 | $15.57 | 1 | ||
| 33 | 80647M | COVER TILT LEVER | NLA | | $4.10 | $4.00 | 1 | ||
| 34 | 82109M | SPRING TORSION | NLA | | $1.58 | $1.55 | 1 | ||
| 35 | 80644M | LINK TILT LOCK | NLA | | $1.79 | $1.75 | 1 | ||
| 36 | 80648M | CAM TILT | NLA | | $5.25 | $5.16 | 1 | ||
| 37 | 81895M | PIN | NLA | | $1.89 | $1.85 | 1 | ||
| 38 | 80645M | ROD TILT LOCK | NLA | | $4.79 | $4.70 | 1 | ||
| 39 | 80643M | HOOK TILT LOCK | NLA | | $17.37 | $17.07 | 1 | ||
| 40 | 84837M | HOOK TILT LOCK | NLA | | $19.92 | $19.56 | 1 | ||
| 41 | 81882M | PIN | NLA | | $2.79 | $2.72 | 1 | ||
| 42 | 82125M | COTTER PIN | NLA | | $3.35 | $3.28 | 1 | ||
| 43 | 19110M | SPRING | 82105M | SS/NLA | | $10.19 | $9.93 | 1 | |
| 44 | 94569M | PIN ASSEMBLY Tilt Lock | ACT | | $37.42 | $36.74 | 1 | ||
| 45 | 82857M | ----PLATE Stopper | NLA | | $5.40 | $5.31 | 1 | ||
| 46 | 82144M | ----PIN SPRING | NLA | | $2.21 | $2.16 | 1 | ||
| 47 | 82330M | RING Snap | NLA | | $3.85 | $3.75 | 1 | ||
| 48 | 82070M | GROMMET | NLA | | $2.79 | $2.72 | 1 |
