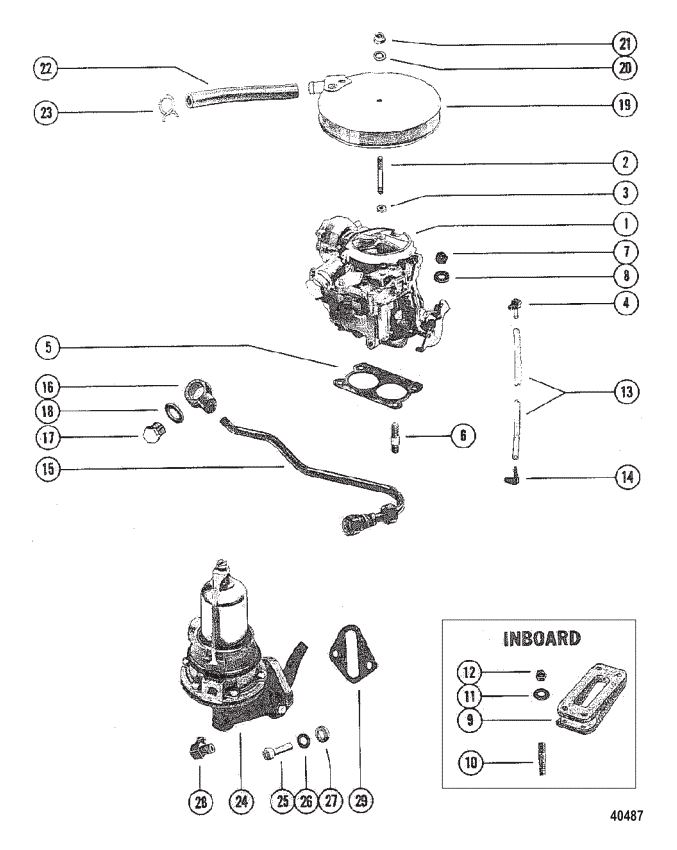

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 860071A4 | CARBURETOR ASSEMBLY | 5990A1 | SS |
|
$1,320.50 | $1,210.53 | 1 | |
| 2 | 70878 | ----STUD (1/4 x 2.125) Carburetor - Flame Arrestor | NLA |
|
$0.00 | $0.00 | 1 | ||
| 3 | 8267139 | ----NUT Flame Arrestor Stud | 28941 | SS |
|
$2.60 | $2.54 | 1 | |
| 4 | 54090 | ----ELBOW Hose - Carburetor Vent | ACT | $19.00 | $18.66 | 1 | |||
| 5 | 8079821 | GASKET Carburetor (Quantity of 2 for Inboard) | 70143 | SS |
|
$5.30 | $5.17 | 1 | |
| 6 | 8M0113177 | STUD (.312 x 1.500) Carburetor | 70236 | SS |
|
$5.50 | $5.37 | 4 | |
| 7 | 29250 | NUT (.312-24) Carburetor Stud | ACT |
|
$2.90 | $2.83 | 4 | ||
| 8 | 20084 | WASHER (.328 x .562 x .06 Carburetor Stud | ACT |
|
$2.83 | $2.77 | 4 | ||
| 9 | 77933T | WEDGE Carburetor | 77933 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 10 | 63332 | STUD (.312 x 1.2812) Carburetor Mounting | ACT |
|
$5.10 | $4.98 | 2 | ||
| 10 | 54345 | STUD (1 5/16 In.) Carburetor Mounting | NLA |
|
$0.00 | $0.00 | 2 | ||
| 10 | 63640 | STUD (2 1/8 In.) Carburetor Mounting | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 20084 | WASHER (.328 x .562 x .06 Wedge Stud | ACT |
|
$2.83 | $2.77 | 6 | ||
| 12 | 29250 | NUT (.312-24) Wedge Stud | ACT |
|
$2.90 | $2.83 | 6 | ||
| 13 | 7381567 | TUBE Fuel Vent | 738152 | SS |
|
$30.99 | $30.36 | 1 | |
| 14 | 73817 | CONNECTOR (90 Degree) Vent Hose to Fuel Pump | ACT | $21.76 | $21.36 | 1 | |||
| 15 | 76312A1 | LINE Fuel | 76312 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 15 | 78012T | LINE Fuel | 78012 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 16 | 76277 | FITTING Banjo, Fuel Line | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 73808 | FITTING Fuel Inlet | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 74784 | WASHER Fuel Inlet Fitting | NLA |
|
$0.00 | $0.00 | 2 | ||
| 19 | 863200 | FLAME ARRESTOR | 85784 | SS |
|
$224.58 | $211.50 | 1 | |
| 20 | 86400 | WASHER Flame Arrestor Attaching | ACT | $1.70 | $1.66 | 1 | |||
| 21 | 826709109 | NUT (.250-28) Flame Arrestor Attaching | 20586 | SS |
|
$3.60 | $3.52 | 1 | |
| 22 | 8M0062669 | HOSE Flame Arrestor to Rocker Cover | 9331512 | SS |
|
$28.42 | $27.92 | 1 | |
| 23 | 53101 | CLAMP Hose to Flame Arrestor | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 86234A05 | PUMP ASSEMBLY Fuel | 86234 | SS/NLA |
|
$590.30 | $555.36 | 1 | |
| -- | 49088Q2 | ----FILTER | 49088 | SS |
|
$17.19 | $16.83 | 1 | |
| -- | 49089A1 | ----DIAPHRAGM KIT | 49089 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 25 | 35386 | SCREW (.312-18 x 1.00) Fuel Pump Attaching | ACT | $1.10 | $1.08 | 2 | |||
| 26 | 20202 | LOCKWASHER Fuel Pump Attaching Screw | NLA |
|
$0.61 | $0.60 | 2 | ||
| 27 | 20546 | WASHER (.330 x .500 x .06 Fuel Pump Attaching Screw | NLA |
|
$5.32 | $5.19 | 2 | ||
| 28 | 98646 | FITTING Elbow, Fuel Pump | 70584 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 29 | 72805 | GASKET Fuel Pump Attaching | NLA |
|
$0.00 | $0.00 | 1 |
